DSLRKIT MID8P2U-E250 Passive PoE Injector Switch

This is a 10-port Passive PoE switch featuring 8 PoE power delivery ports and 2 uplink ports. It is designed for Power Devices (PD) compatible with the 802.3af/at standard (Mode B), providing stable power and network connectivity for devices such as Wireless Access Points, IP Phones, IP Cameras, and Gateways.

Port Configuration: 10 x 10/100Mbps auto-negotiation RJ-45 ports (8 PoE ports, 2 uplink ports).

• Power Standard: Compatible with IEEE 802.3af/at Powered Devices. Uses Midspan Mode B (4,5+ / 7,8-) unsolicited passive power injection.

• Power per Port: Maximum output 52V DC / 50W per port.

• Total Power Budget: Maximum output 120W (Power Adapter: 52V, up to 140W).

• EXTEND Mode: Supports EXTEND mode, increasing maximum network cable distance to 250 meters when enabled.

• Plug & Play: Each port supports auto MDI/MDIX, eliminating the need for crossover cables. Supports full/half-duplex transfer modes.

Passive (Non-Standard) PoE: This is aPassive PoEdevice. ItDOES NOTinclude the standard 802.3af/at handshake detection. It supplies power continuously.ONLYconnect PoE ports (Ports 1-8) to devices designed to receive PoE power.

1. EXTEND Mode Notes:

   • When EXTEND mode is enabled, the maximum bandwidth for PoE ports 1-8 is reduced to 10Mbps each.

   • It is recommended to set the bitstream of connected devices (e.g., IP Cameras) not to exceed 8Mbps (8192 Kbps) for stable network performance.

   • The uplink port speed is unaffected, remaining at a maximum of 100Mbps.

2. Compatibility Warnings:

   • The PoE ports on this switchsupport 10/100Mbps only and DO NOT support Gigabit Ethernet, as power is delivered over wire pairs 4,5,7,8.

   • NEVERconnect non-PoE devices (e.g., regular computers, Gigabit switches) to the PoE power delivery ports, as thisWILL DAMAGEthe connected device.

3. Power & Consumption:

   • To ensure stable operation, the total power consumption of all connected devices on PoE ports should not exceed the power supply's 120W rating.

   • The included 52V power adapter is designed to compensate for voltage drop over long cable distances, ensuring reliable operation of remote devices.

4. Device Selection Tip: If your camera is labeled "12V/PoE", it means it can be powered via a 12V DC port OR a 48V/52V PoE Ethernet port. Please select this 52V PoE switch, not a 12V version.

Specification:

ALL Port: Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with4 pairs UTP Cat5/5e/6 cable。 Power LinkPort1-8: any supported unsolicited power on pairs 45-78 pins compliant Powered Devices (PDs)

Power LED LED ON: power on. LED OUT: power off GreenLight LINK/ACT LED ON Indicates the port is connected to a network device and has been started LED OFF Indicates that this port is not connected to a network device or has not been started

Standard

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3x Full-Duplex flow control

Protocol

CSMA/CD Ethernet

Data Transfer Rate

Ethernet: 10Mbps (Half Duplex) 20Mbps (Full Duplex)

Fast Ethernet: 100Mbps (Half Duplex) 200Mbps (Full Duplex)

IC Chips

IC Plus IP178G + IP175G

Network Media(Cable)

10Base-T(EXTEND mode): UTP category 5e, 6 cable (maximum 250m) EIA/TIA-568 100Ω STP (maximum 250m)

100Base-TX:UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

PoE Power on RJ45

Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8

DC Output: 52V, Per port Max 1A or 50Watt,8 POE ports Total Max. 120Watt

Number of Ports

10x 10/100Mbps Auto-Negotiation RJ45 ports with8 PoE enabled (port-1~ port-8)

Power Input

AC Input: 110V ~ 240VAC, 50Hz ~ 60Hz.

DC OutPut: 52V/2.7A

Power Consumption

3.2Watts (max. no PD connected)

According to the actual power consumption of equipment

Temperature

Operation Temperature:0 ~40℃(32 ~104℉)

Storage Temperature: -40 ~70℃(-40 ~158℉)

Humidity

Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing

Product Dimensions

197mm W x 73mm D x 32mm H

RAM Register Capacity

64K bytes per device

MAC Address List

1K entries per device

Frame Forward Rate

10Mbps Ethernet: 14880pps/Port

100Mbps Ethernet: 14880pps/Port

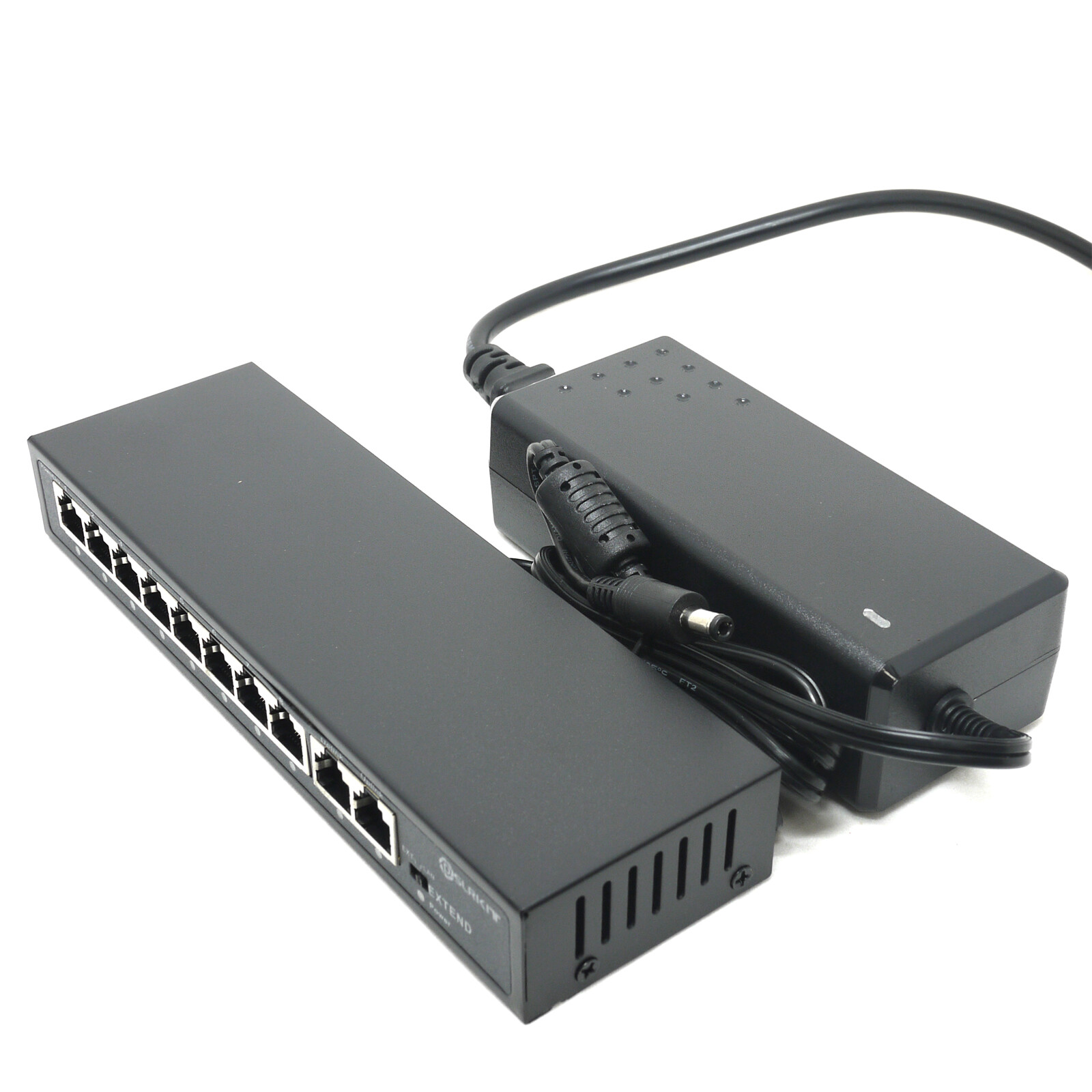

Item Included:

DSLRKIT MID8P2U-E250 10pots 8PoEUnsolicited(Passive)PoE switch x1
AC Power Adapter(DC OutPut: 52V/2.7A) x1
AC Power Cable x1

AC power plug is US or EU type,if you need other type (AU or UK),Please leave a message.

12 Months Warranty from the date of purchase.
