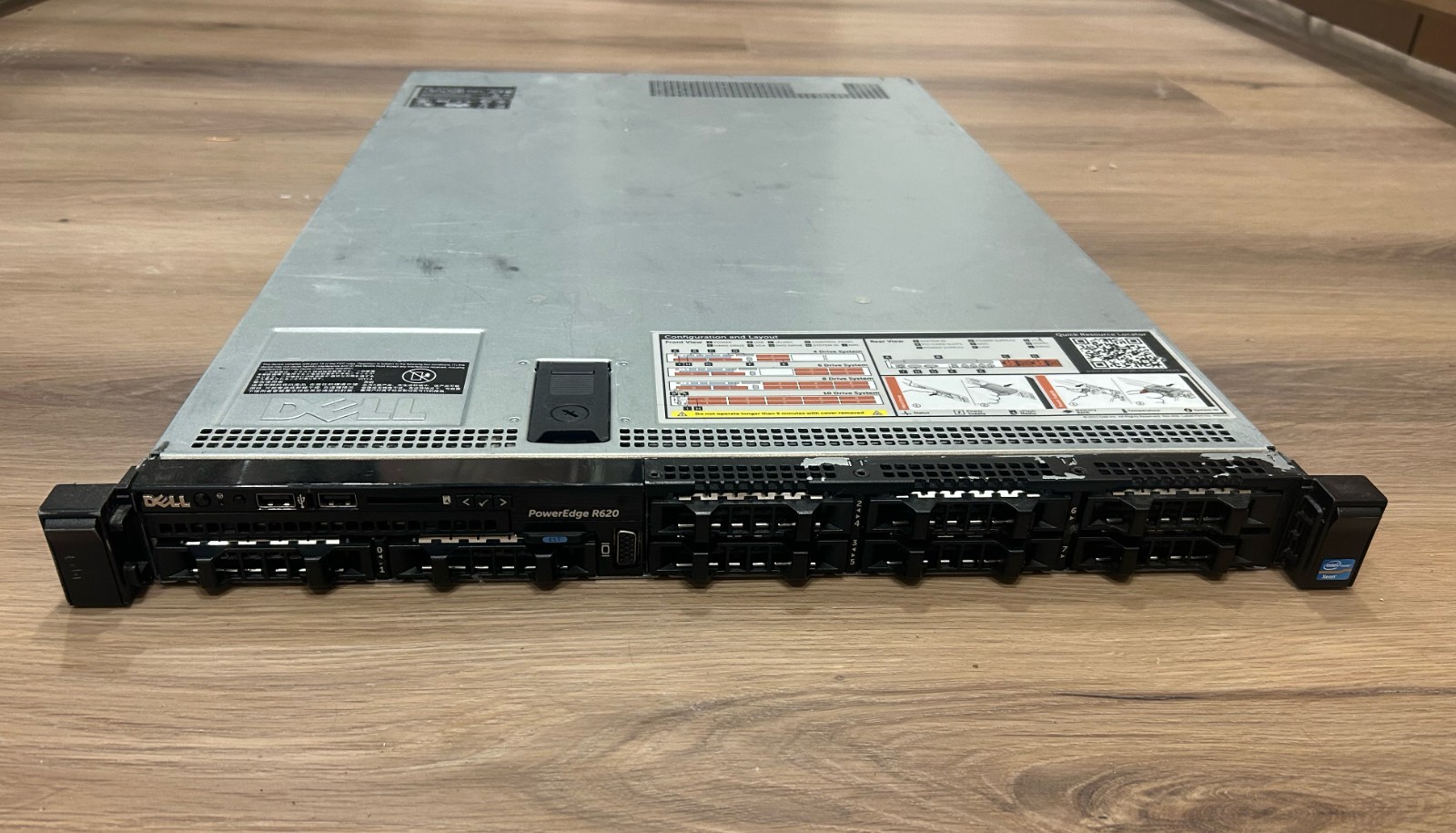

Dell PowerEdge R620 1U Rackmount Server – Fully Hardware Tested

Used Dell PowerEdge R620 rackmount server featuring dual Intel Xeon E5-2660 processors, 32GB DDR3 ECC memory, and Dell PERC H310 Mini RAID controller.

The server has undergone extensive hardware testing, including Dell ePSA diagnostics, individual testing of all eight 2.5-inch drive bays, and independent testing of both power supplies.

Specifications

• Model: Dell PowerEdge R620

• Form Factor: 1U Rackmount

• Processors: 2 × Intel Xeon E5-2660 @ 2.20GHz

• Total CPU Cores: 16 physical cores / up to 32 threads

• Memory: 32GB DDR3 ECC RAM

• RAID Controller: Dell PERC H310 Mini

• Drive Bays: 8 × 2.5-inch hot-swap bays

• Networking: Intel I350 Quad-Port Gigabit Ethernet

• Remote Management: Dell iDRAC7

• Power Supplies: 2 × Dell 495W Hot-Swap PSUs

• CMOS Battery: Replaced

• Service Tag: B0M29Y1

Hardware Testing Completed

• Successfully powered on and completed POST

• Both processors detected and passed Dell diagnostics

• All installed RAM recognized and passed diagnostics

• Dell PERC H310 Mini detected and operational

• All 8 drive bays individually tested using compatible SATA SSDs and confirmed recognized by the RAID controller

• Both 495W power supplies independently powered and booted the server

• Cooling fans passed Dell diagnostics

• All four network interfaces passed built-in diagnostics

• PCIe, USB, video, and backplane diagnostics passed

• Historical system event log warnings reviewed

• CMOS battery tested, and working. The server shows normal cosmetic wear from previous enterprise use, including scratches, scuffs, and surface marks on the metal chassis and front panel.

  Please review all photographs for actual cosmetic condition.

  Included

  • Dell PowerEdge R620 server

  • 2 × Intel Xeon E5-2660 processors

  • 32GB installed DDR3 ECC RAM

  • Dell PERC H310 Mini RAID controller

  • 2 × 495W hot-swap power supplies

  • 8 × 2.5-inch drive-bay blanks/fillers

  Not Included

  • Hard drives or SSDs

  • Hard-drive trays/caddies (the installed bay fillers are blanks, not drive trays)

  • Operating system

  • Rack rails

  • Power cords or other accessories unless specifically shown as included

  Additional Information

  The SSDs pictured during diagnostic testing were used only to verify drive-bay functionality and are not included in the sale.

  The server is sold without storage or an operating system. Buyer will need compatible drives and mounting trays for storage installation.

  Please review all photos and specifications carefully before purchasing. You will receive the actual server shown in the photographs.
