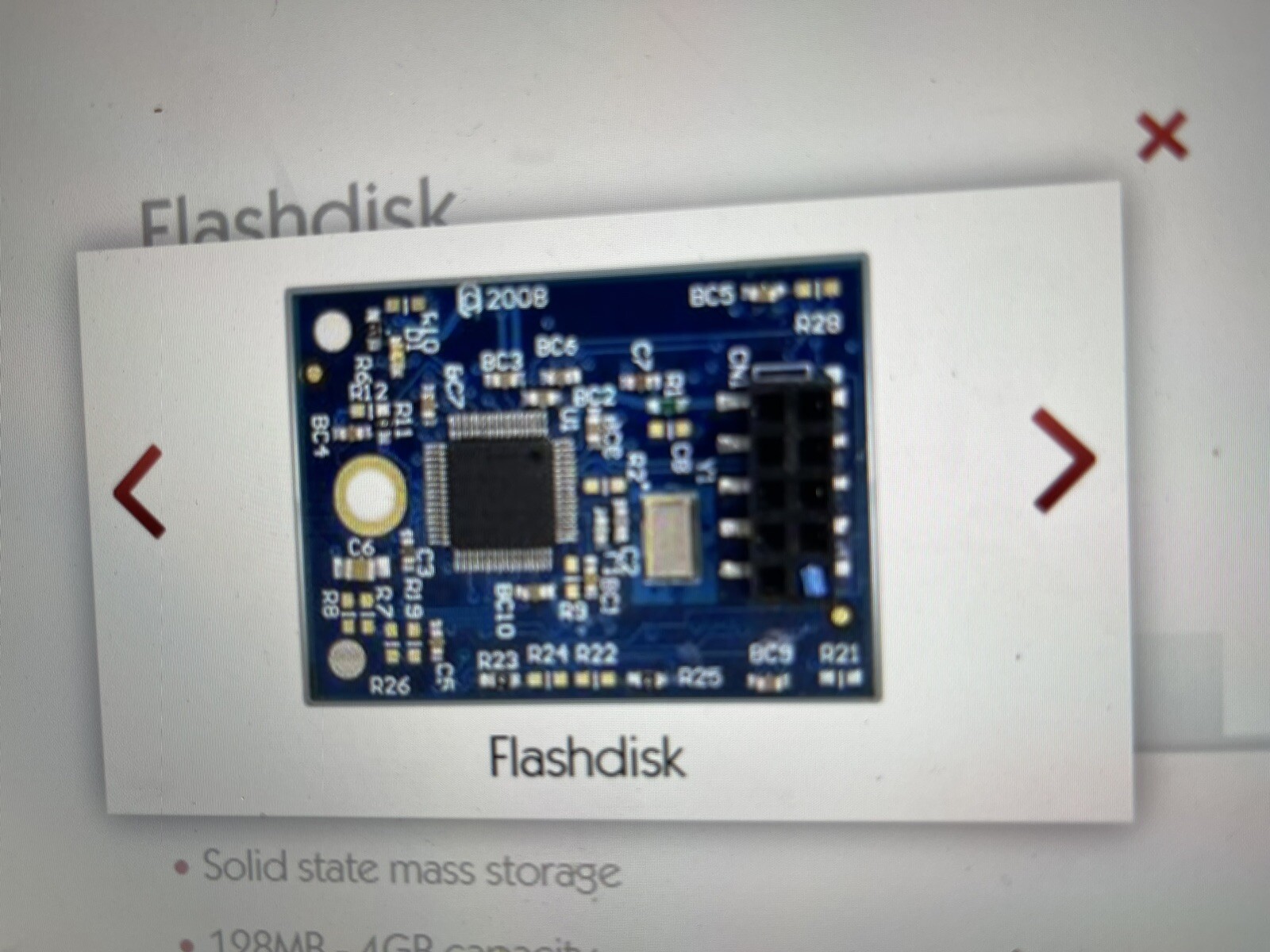

Diamond Systems. Flashdisk, 256MB, IDE, XT, FD-256R-XT, factory sealed For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Diamond Systems. Flashdisk, 256MB, IDE, XT Mounts on 44-position 2mm pin header128MB to 4GB capacityMaster/Slave jumperRugged design with mounting screwWide temperature -40 to +85C operation
tandard ATA/IDE Bus interface
512 Bytes per sector
ATA command set compatible
Selectable Master/Slave Operation
Support Data Transfer up to PIO Mode-4
Support up to Multiword DMA Mode-2
Max. 6 MB/sec under PIO mode
Max. 7 MB/sec under DMA mode
Fast Sustained Read Performance
Max. 10 MB/sec under PIO mode
Max. 11 MB/sec under DMA mode
WP_PD# pin configurable by host for prevention of data overwrites
Added data security through User Selectable Protection Zones
Power Management Unit
Immediate disabling of unused circuitry
RoHS Compliant
Zero Power Data Retention
Batteries not required for data storage
Industrial -40°C to 85°C
Built-in Embedded Flash File System
Implements dynamic wear-leveling algorithms to substantially increase longevity of flash media
Built-in ECC support corrects up to 3 random 12-bit symbols of error per 512 Byte sector
Support Voltage Read and Write Operation
3.3 V and 5.0 V compatibility
Low Power Consumption
Active mode: 35 mA/55 mA (3.3V/5.0V) typical
Sleep mode: 100 µA/150 µA (3.3V/5.0V) typical
44-pin 2mm pitch socket
Rugged Design
Mounting tab with screw provides secure, shock/vibration-resistant installation
