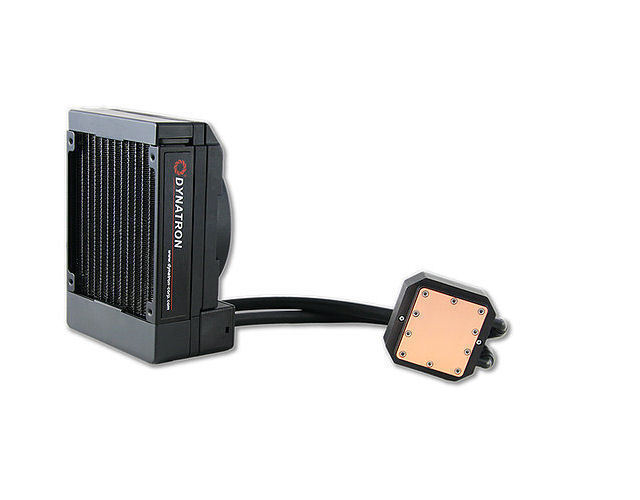

Dynatron’s L5 High Performance Liquid Cooler gives your system the extra capacity for overclocking and stability. This self contained unit is coupled with a powerful pump and integrated blue LED PWM fan to give your system an edge in performance. Variable temperature control ensures optimal cooling even during the most intense computing situations. Stay ahead of the opposition by getting more out of your system. MAX TDP to 200 Watts.

CPU Support

Intel/AMD

CPU Socket

Muti-socket: Intel Socket LGA2066/2011/1151/1155/1156/1366 & AMD AM2/AM2+/AM3/AM3+/FM1/FM2

Solution

Desktop

Dimensions

400.0 x 120.0 x 165.0 mm

Weight

1100 g

Material

Aluminum Fins, 4x Heat Pipes with H.C.C. Technology

Fan Dimension

120 x 120 x 38 mm Blue LED PWM

Speed

At Duty Cycle 20%: 900 RPM
At Duty Cycle 50%: 1500 RPM
At Duty Cycle 100%: 2300 RPM

Bearing

Liquid State Bearing

Rated Voltage

12V

Power

At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 2.0 W
At Duty Cycle 100%: 4.9 W

Air Flow

At Duty Cycle 20%: 34.8 CFM
At Duty Cycle 50%: 58.0 CFM
At Duty Cycle 100%: 88.93 CFM

Noise Level

At Duty Cycle 20%: 17.3 dBA
At Duty Cycle 50%: 28.4 dBA
At Duty Cycle 100%: 37.7 dBA

Air Pressure

At Duty Cycle 20%: 0.79 mm-H2O
At Duty Cycle 50%: 2.20 mm-H2O
At Duty Cycle 100%: 5.17 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Water Pump

Stand-alone Water Pump with Powerful Flow Rate 0.84 Litter Per Minute

Radiator Dimension

152.0 x 120.0 x 27.0 mm
