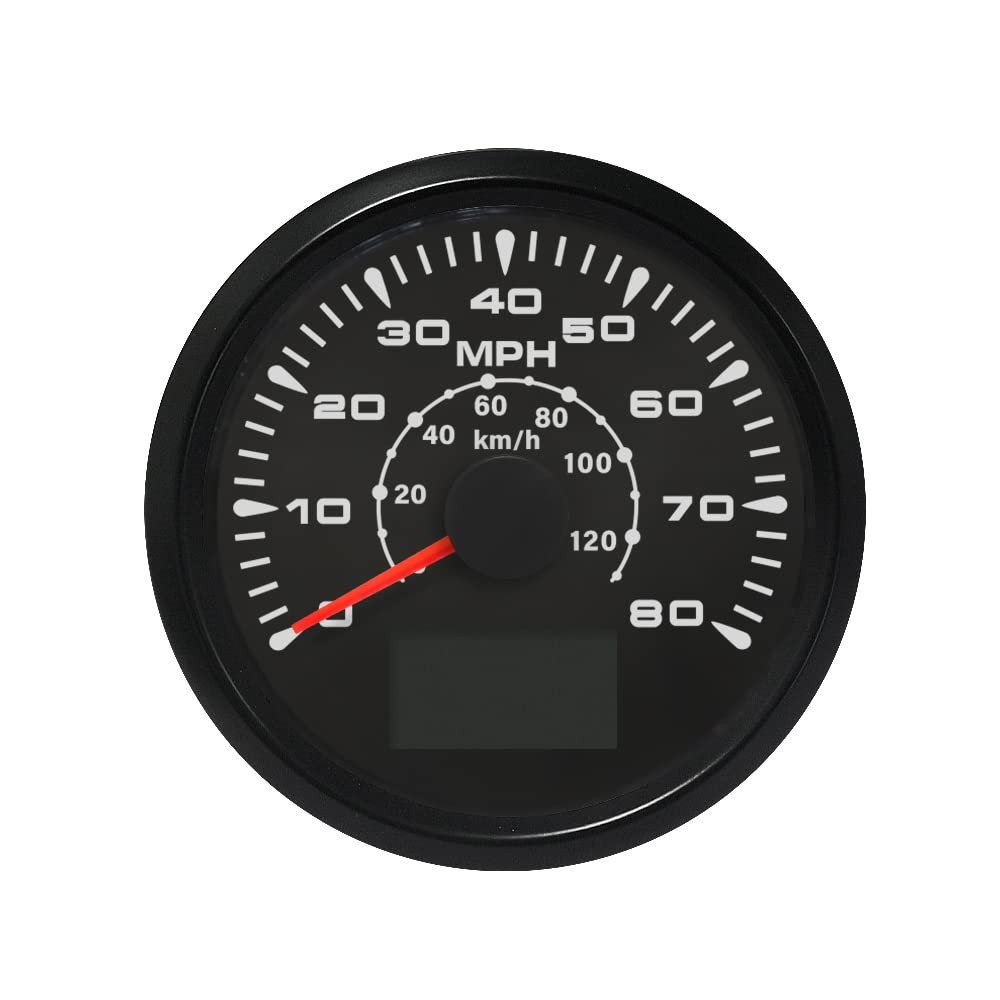

ELING Car Motorcycle Boat GPS Speedometer Odometer 0-80MPH 0-120KM/H ATV UTV with 8 Different Backlight 85mm

• Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge. Put the gauge in the hole and screw down.
• For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable
• It shows Current Speed, TRIP/COG(choose one), ODO(cannot be reset). If you need other color faceplate, pls. search for ASIN B07DXNGL24 and B07DXYSJX9
• Backlight: Red Green Blue White Yellow Orange Purple Light Green or automatic
• 9-32VDC(12VDC/24VDC) Working Voltage, 100% Waterproof and anti-fogging protection

Product Features:
-Suitable for all cars, tractors, vans, motorcycle, vessels, boats, yachts, etc.
-The signal comes directly from the satellite signal receiver (GPS Speed Sensor)
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).Technical Data:
-Fixing dimension: 85mm(3-3/8")
-Indicating Range:0-80MPH
-Faceplate Color: black faceplate with black Stainless Steel. If you need other faceplate, pls. search for B07DXNGL24 (WS) and B07DXYSJX9 (BS)
-Working Voltage: 9-32VDC(12VDC/24VDC)
-Backlight: Red Green Blue White Yellow Orange Purple Light Green or automatic
-Functions:
Needle shows current speed;
Led window shows: TRIP/COG(choose anyone) and ODO
TRIP---TRIP01(Default) one-trip mileage which will come back to 0 after power off, TRIP02 one-trip mileage which accumulates after power off, but you can press “Set” button for 3-5 seconds to clear the data.
COG---course over ground
ODO---recording total mileages automatically and cannot be reset
-Connection: Blue wire--Negative/Ground, Red wire--Positive, Orange wire--Positive(lighting wire)
-After connection, it takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. It gets quicker under a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it. Package Includes:
1x GPS speedometer
1x GPS Speed Sensor
1x Multi-plug socket
1x Installation Instruction
