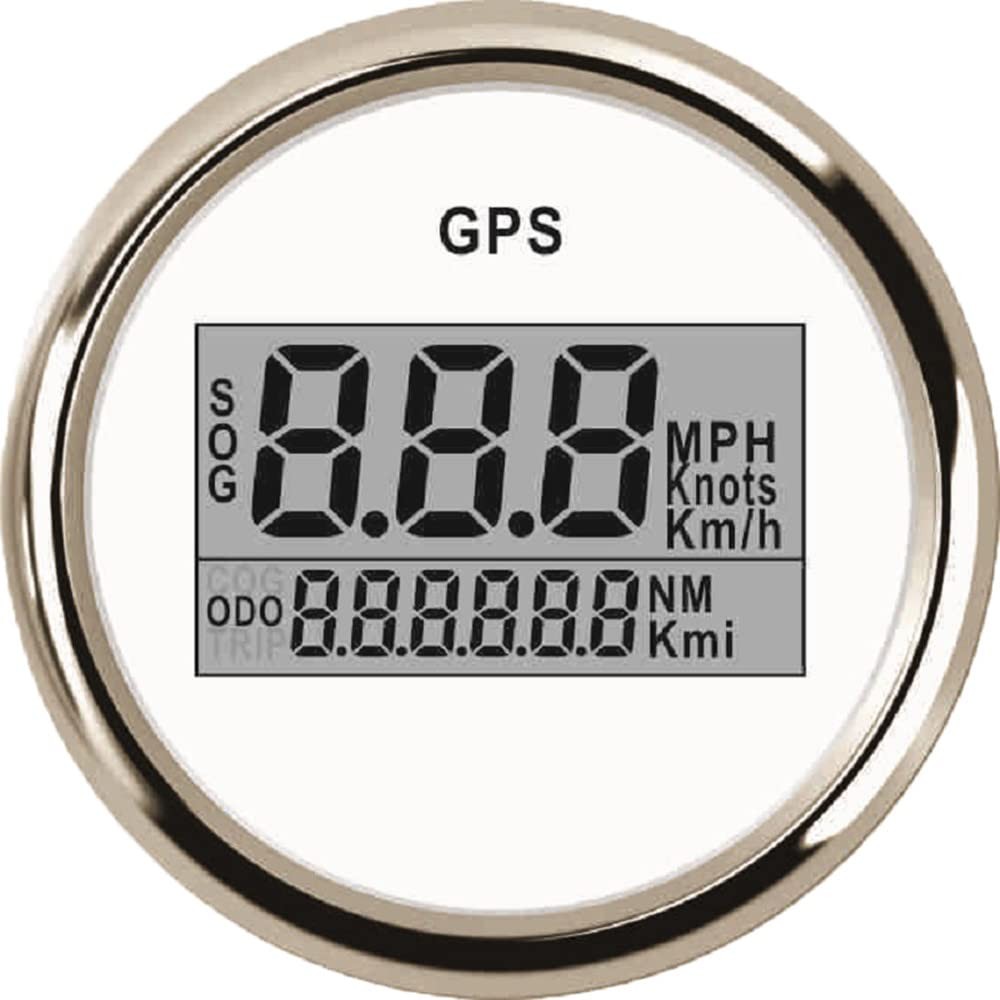

ELING Universal 2 inch Round GPS Speedometer Kit Digital Odometer for Sailboat Yacht Vessel Club Car Golf Cart 12V 24V

• Cut an 52mm (2 1/16") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge. Put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.
• For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.
• After connection, it takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. It gets quicker under a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it.
• It shows Current Speed and ODO, Press the back button to adjust unit(KM/H. MPH, KNOTS)
• Red Backlight, 9-32VDC(12VDC/24VDC) Working Voltage,100% Waterproof and anti-fogging protection

Product Features:
-Suitable for all vehicles, boats and off-road vehicles
-The signal comes directly from the satellite signal receiver(GPS Speed ​​Sensor)
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)). >Technical Data:
-Fixing dimension: 52mm(2")
-Indicating Range: 0-999(MPH, Knots, KM/H adjustable)
-Odometer: 0-999999(miles, nmi, km adjustable)
-Working Voltage: 9-32V(12V/24V )
-Backlight: Red
-Functions:
SOG---current speed;
ODO---will record the mileage after power off
-Connection: Blue wire--Negative /Ground, Red wire--Positive, Orange wire--Positive(lighting wire)
-This GPS Speedometer is complete unit, can work directly with gps sensor together, not need other sensor cables.
-After connection, it takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it.
-Operation mode: LCD display, stepper motor Package Includes:
1x GPS speedometer < 1x GPS Speed ​​Sensor
1x Multi-plug socket
1x Installation Instruction
