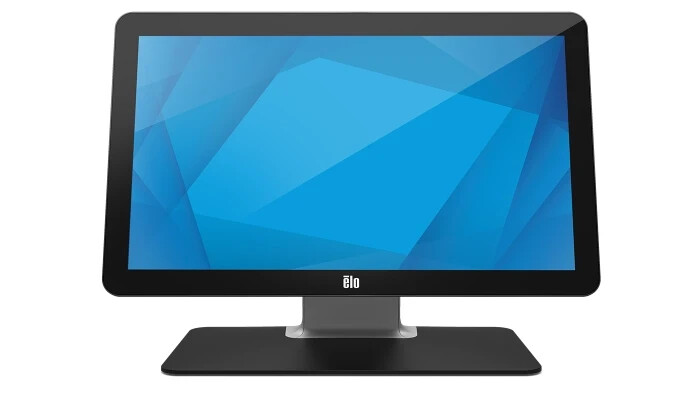

2002L 19.5-inch wide LCD Desktop, WW, Full HD, Projected Capacitive 10-touch, USB Controller, Anti-glare, Zero-bezel, mini-VGA and HDMI video interface, Black.E396119

The Elo 2002L 20-inch widescreen LED touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo’s industry-leading TouchPro® PCAP technology. The sleek, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 2002L well suited for high traffic environments.

Enclosure Color

Black

Touch Technology & Capacity

PCAP (Projected Capacitive) - 10 Touch

Diagonal Size

19.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area (mm)

17.20" x 9.48" / 436.9mm x 240.7mm

Resolution

1920 x 1080 @ 50, 60Hz

Other Supported Resolutions

640 x 480 60Hz
640 x 400 70Hz
720 x 576 50Hz
720 x 400 70Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 250 nits
PCAP: 225 nits

Response Time-total (typical)

20 msec

Contrast Ratio

3000:1

Touch Interface

USB

On Screen Display

Accessible through switches along the bottom.

Controls: Menu, Power, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

Speakers

Two x 2W internal speakers

Input Video Format

Mini-VGA (Mini-VGA to VGA DE-15 (DB-15) Male connecter cable included) HDMI (HDMI cable included), HDCP supported

Input Video Frequency

Horizontal: 31.5 - 80 KHz
Vertical: 50 - 60 Hz

Power Consumption (Typical)

Monitor + AC/DC adapter
ON: 18.4W
SLEEP: 0.33W
OFF: 0.24W

Input Voltage

12VDC +/- 5%; 100-240VAC, 50/60Hz

Input Connector

Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)

Monitor Dimensions (without Stand)

11.57" x 19.22" x 1.52" / 293.9 mm x 488.31 mm x 38.7 mm

Monitor Dimensions (with Stand)

13.87" x 19.22" x 7.61" / 352.3mm x 488.31mm x 193.4mm

Shipping Box Dimensions

With Stand: 16.50" x 22.52" x 9.92" / 419 mm x 572 mm x 252 mm
Without Stand: 18.35" x 24.49" x 7.17" / 466 mm x 622 mm x 182 mm

Weight (Unpackaged)

With Stand: 15 lbs / 6.8kg
Without Stand: 7.25 lbs / 3.29 kg

Weight (Packaged)

With Stand: 19.84 lbs / 9kg
Without Stand: 11.42 lbs / 5.18 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 10% to 95%

Sealability

Touchscreen sealed to bezel; Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

Mounting Options

VESA 4-hole 75mm and 100mm mounting interface on rear of unit
See dimensional drawings for details

Warranty

3-year
