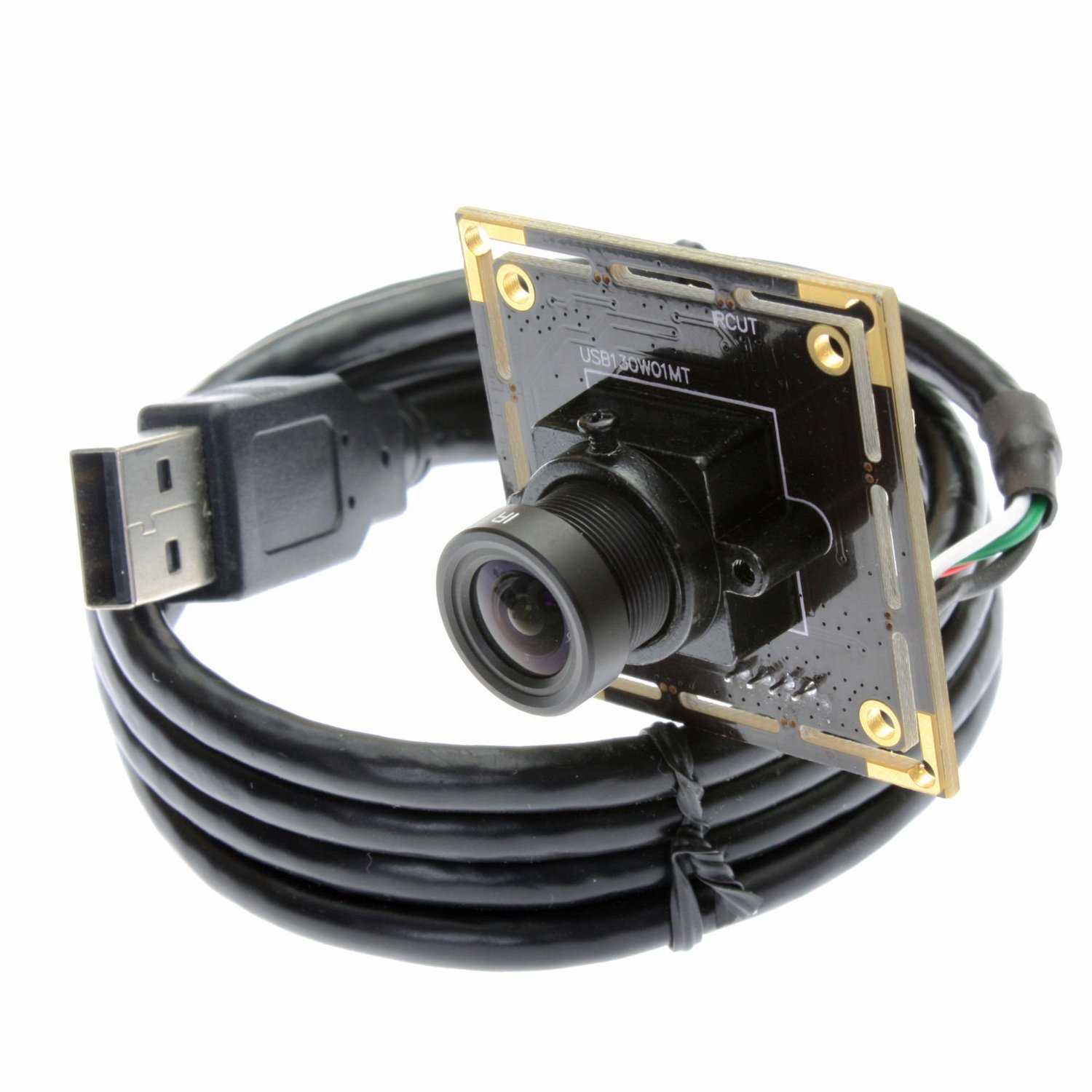

ELP 960P mini usb camera module low illumination 0.01lux AR0130 1/3 CMOS Sensor

Features:

*1280x960 resolution USB Camera
*Support Android and Linux system
*Suport YUY and MJPEG format
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 60 fps in VGA
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
* WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

Key Specifications

Module No.ELP-USB130W01MTModule Size38mm × 38mm 32mm × 32mmTemperature (Operation)-20°C to 70°CTemperature (Stable Image)0°C to 60°CCamera Board Assembly techniqueSMT (ROSH)FocusManualObject distance5CM-100MResolution600LW/PH (Center)interfaceUSB 2.0 High SpeedprotocolUSB Video Class UVCPowerUSB bus powerOperating system requestWin XP\Win7\Win8\Android\Linux\Mac OSCertificationsFCC and CESensor TypeAR0130 (1/3” )Active Array Size1280 *960Minimal illumination0.01LuxPixel Size3.75umMaximum Image Transfer Rate1280 (H) x 960 (V) pixels MJPEG 15fps1280 (H) x 720 (V) pixels MJPEG 30fps800 (H) x 600 (V) pixels MJPEG 30fps640 (H) x 480 (V) pixels MJPEG 30fps320 (H) x 240 (V) pixels MJPEG 30fpsS/N Ratio44dBDynamic Range83.5dBShutterRolling shutter/ frame exposureLens TypeLens Construction5G+IRFocal Length3.6mm (2.1mm/2.8mm/6mm/8mm/12mm Filter650±10nmDSP TypeRV1080PAGC/AEC/AWB/ABFAutoOutput FormatsYUYV/MJPEGIR CUTSUPPORTAdjustable parametersBrightness Contrast Hue Saturation Sharpness Gamma White Balance
Exposure FocusPackageLQFN-40pinUSB Cable1M(2M/3M/5M Optional)

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

Important:
We are not responsible for any custom duty or import tax

Return Policy
1. We offer full refund if you didn't receive your order in our promised time.
2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving
3. Items returned after 7 days of delivery are only for repair.
4. As the items returned, buyer should pay for the return shipping fee.

response

1.Please contact us before leaving any neutral or negative response. We will try our best to solve the problem ,Thank you

2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster.

Thanks! Welcome Inquiry.
