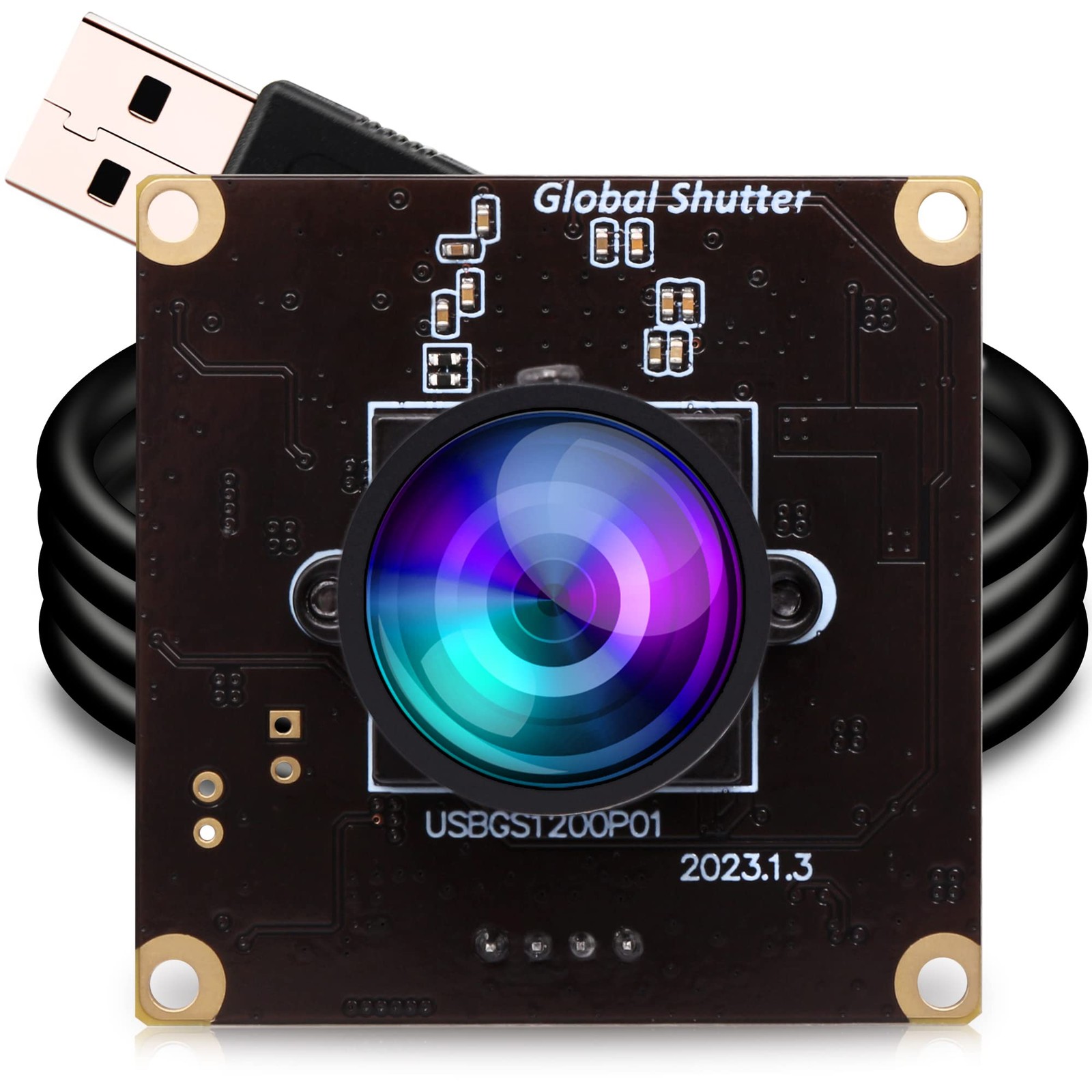

ELP High Speed Wide Angle Global Shutter USB Camera Module for Computer 1080P Mini UVC USB2.0 Webcam Board with 2.1mm Lens AR0234 High Frame 90fps Web PC Camera Board for Laptop Raspberry Pi
- Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
- HD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 90fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting. 1080P usb camera module with 1/2.6” Aptina AR0234 high quality sensor for sharp clear image.
- Wide Angle 2.1mm M12 Lens, HFOV about 120degree, mini 38mmx38mm camera board can be installed in most hidden and narrow position, can be used in any video system for personal or industrial.
- Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.
Model: ELP-USBGS1200P01
Sensor: Aptina AR0234 (1/2.6”) Global Shutter
Max Resolution: 1920 (H) *1200 (V)
Lens Size: 1/2.6 inch (4:3)
Pixel Size: 3.0μm
Compression Format: MJPEG / YUV2 (YUYV)
Resolution & Frame rate:
1920x1200@90fps MJPEG/1920x1080@90fps MJPEG
1600x1200@90fps MJPEG/1280x960@90fps MJPEG
1280x720@90fps MJPEG/1024x768@90fps MJPEG
960x720@90fps MJPEG/800x600@90fps MJPEG
640x480@90fps MJPEG/320x240@90fps MJPEG
Surface Mount Technology SMT
Focus: Fixed
Central Definition:600LW/PH (Center)
S/N Ratio: 37dB
Dynamic Range: 70dB
Sensitivity: 1.4V/lux-sec@550nm
Mini Illumination: 0.3lux
Shutter: Global Shutter
Interface: USB2.0 High Speed
AEC Support/AWB Support/AGC Support
Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure
Lens Parameters: HD 2.1mm lens
Optional
No Distortion Lens (FOV 65~130 degree optional)
Fisheye lens 150 degree /180 degree etc.
LED board power connector: Support 2P-2.0mm socket
Power Supply: USB BUS POWER 4P-2.0mm socket
Operating Voltage；DC5V
Working Current：160mA- 190mA
Dimension：38mm×38mm
Storage Temperature：-20°C to 80°C
Working Temperature：0°C to 60°C
USB Cable :1M
Operating System Request:
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
