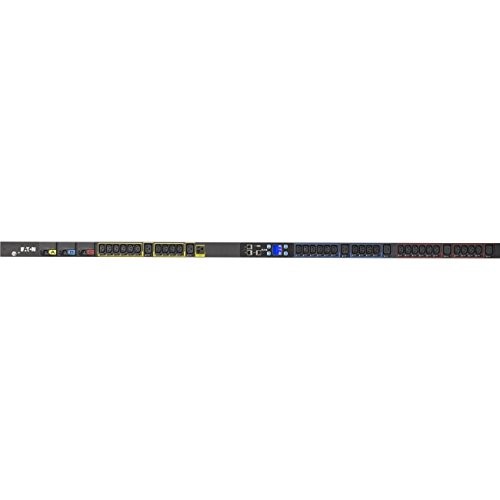

Eaton ePDU G3 Metered Input 38U-A; 8.64 KW; IN: L21-30P 24A 3P OUT: 30XC13:6XC19:1X5-20R (emi310-10) Eaton ePDU G3 Metered Input 38U-A; 8.64 KW; IN: L21-30P 24A 3P OUT: 30XC13:6XC19:1X5-20R (emi310-10)Certifications & Standards: UL ITE 60950-1 FCC
Country of Origin: Morocco
Product Description
This item is brand-new, factory sealed.
Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
- IEC outlet grip plug retention secures plugs in place using standard cables
- Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
- High operating temperature (140F / 60C) for containment or hot network closet environments
- Hot-swap meter for servicability of without removing power to the rack
- +/- 1% billing grade accuracy for high accuracy reporting of energy usage
- Daisy chain of IP addresses allows four devices to share one network connection
SpecificationPower DescriptionPower Rating (Watt)8640 WInput Voltage Range120 V AC - 208 V ACInput Voltage
Circuit BreakerYesInput Current24 APhysical CharacteristicsWeight (Approximate)18.30 lbCord Length10 ftMount Height38UDepth2.1"WarrantyLimited Warranty3 YearInterfaces/PortsNetwork (RJ-45)YesUSBYesSerial PortYesGeneral InformationBrand NameEatonMarketing InformationEaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets. IEC outlet grip plug retention secures plugs in place using standard cables Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation High operating temperature (140F / 60C) for containment or hot network closet environments Hot-swap meter for servicability of without removing power to the rack +/- 1% billing grade accuracy for high accuracy reporting of energy usage Daisy chain of IP addresses allows four devices to share one network connection Product TypePDUProduct NameePDU 37-Outlets PDUManufacturerEaton CorporationManufacturer Part NumberEMI310-10Product LineePDUTitleProduct TitleEaton Metered Input Rack PDU 8.64 kW max 120/208V 24A 0U Three-Phase PDU (EMI31010)Technical InformationReceptacle Type
- IEC 60320 C13
- IEC 60320 C19
- NEMA 5-20R
Receptacle Detail
- 30 x IEC 60320 C13
- 6 x IEC 60320 C19
- 1 x NEMA 5-20R
Plug/Connector TypeNEMA L21-30P Shipping
