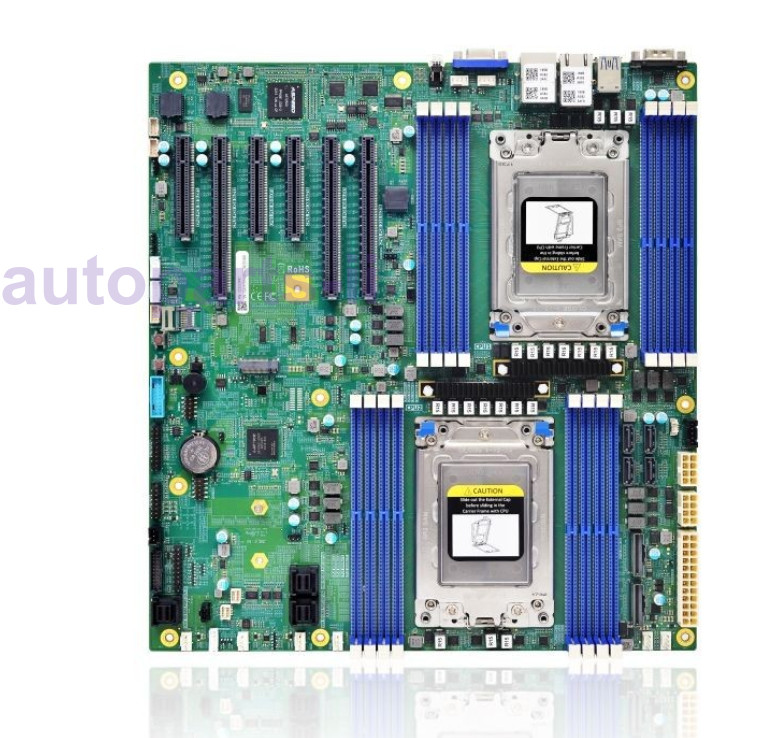

FOR TTY T1DEEP E-ATX SP3 Motherboard Support AMD EPYC 7002/7003 Rome/Milan CPU
parts
EATX Motherboard Specifications Plate typeEATX，12" x 13"processor
Supports 2 AMD EPYC™ 7002/7003 series processors with up to 64 cores and a maximum power of 280W
4 xGMI links
memorySupports 16 DDR4 memory slots up to 3200MHz with RDIMM/LRDIMM supportStorage controllersIntegrated 6Gb/s SATA controller; Supports external 12Gb/s SAS HBAs and 12Gb/s SAS RAID controllersOn-board storage interface
Supports 12 onboard SATA 3.0, 2 SFF-8643+4 7pin SATA
Supports 1 x M.2 (PCIe 4.0 x4, 2280&22110)
Supports 4 NVMe (2 SlimSAS PCIe 4.0 x8)
PCIe ExtensionsSupports 6 PCIe expansion slots (3 PCIe 4.0 x16 + 3 PCIe 4.0 x8)Internet
1 x 1Gb RJ45 dedicated management network port
2 x 1Gb RJ45 data network ports with NCSI support
port
Front: 1 VGA, 2 USB3.0
Rear: 1 VGA, 4 USB3.0, 1 RJ45 management network port, 1 COM port, 2 1Gb RJ45 data network ports
Management featuresIntegrated ASPEED AST2500 BMC management chip, supporting IPMI2.0, KVM, virtual media and other functionsTPM1 x LPC TPM headerpower supplyATX power supplyFAN8 x 4-pin fan connectors with auto-speed regulationOperating temperature5ºC - 35ºC (without direct light)Operating relative humidity8% - 90%The operating system is supported
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, UBuntu, Oracle Linux, VMware ESXi, Citrix XenServer, and more
Please contact the sales staff for specific versions
