Fujitsu miniSTX D3664-B
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Fujitsu miniSTX D3664-B
Price: CZ $175.00

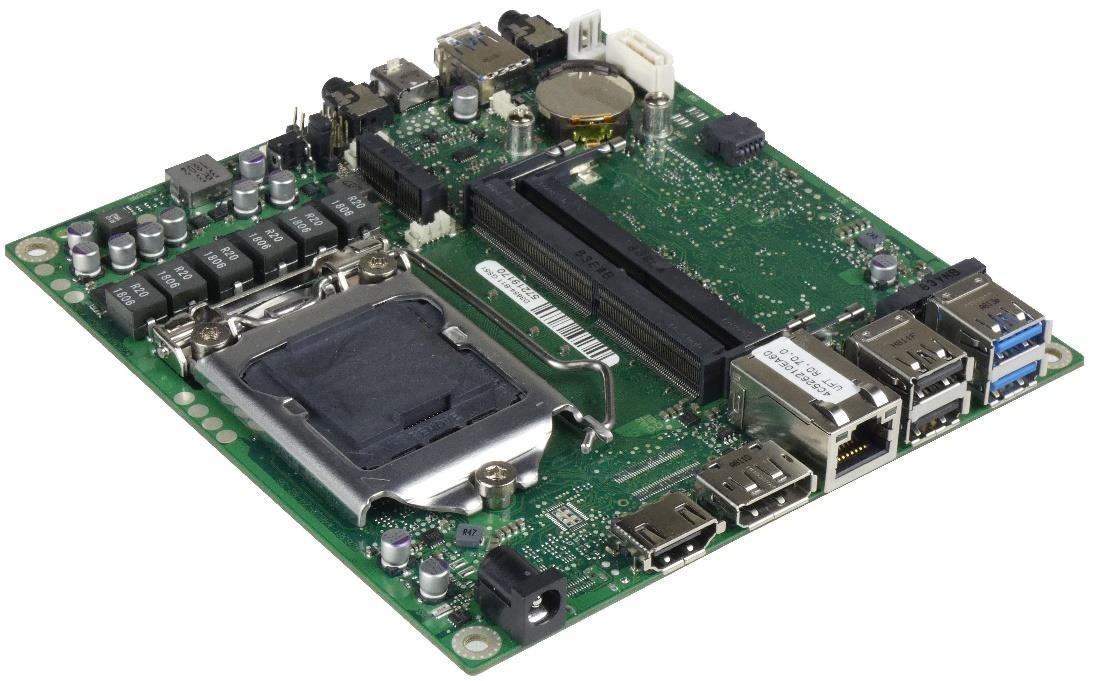

Fujitsu D3664 /Kontron D3664The Fujitsu (now Kontron) D3664-B is a Mini-STX industrial motherboard designed for 24/7 operation. It features the Intel Q370 chipset and supports 8th and 9th Gen Intel Core processors, making it ideal for compact, high-performance applications.Key Specifications:
  • Form Factor:Mini-STX (140 x 148 mm).
  • Chipset:Intel® Q370 Express Chipset.
  • Processor Support:Intel® Core™ i9/i7/i5/i3 (8th/9th Gen) and Intel® Pentium®/Celeron® series, Socket LGA1151 (Max 65W TDP).
  • Memory:2 x SO-DIMM sockets, DDR4-2666 SDRAM, Dual Channel, max. 32GB.
  • Graphics:Intel® HD Graphics (integrated in CPU), 2x DisplayPort 1.2, 1x HDMI V1.4, and USB Type-C (DP Alt Mode).
  • Storage:2x SATA III (6Gb/s) for SSDs/HDDs, 1x M.2 SSD Slot (PCIe x4 based, 2280).
  • Connectivity:Intel® GbE LAN onboard.
  • Internal Connectivity:M.2 WLAN/Bluetooth (2230) socket.
  • USB:USB 3.1 Gen2, USB 2.0, and USB Type-C.
  • Power:DC Power Supply 19V.
  • Operating Temperature:0-50 °C.
  • Features:Integrated HW Watchdog, Intel® AMT 12 support, Intel® TPM V2.0
