Warranty for twomonths, if the motherboard fails within two months, please contact us in time!
This product is used disassemble board,about 90% -95% new,although it is used, but the quality is very good, 100% brand original authentic!Before shipment, test well.
This motherboard is genuine, it is a used disassemble motherboard, about 80% -95% new.
- All new design of Ultra Durable 4 classic
- Supports for 3rd Gen. Intel22nm CPUs and for 2nd Gen. IntelCore CPUs (LGA1155 socket)
- Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
- Supports 3rd generation PCI-Express interface
- Industry's Leading All Solid Capacitor Design
- For Enhanced Intel HD Graphics 2000/3000 integrated with the processor
- Innovative Smart 6 technology for smarter PC management
- Dual UEFI BIOS protection with 3TB+ HDD boot up capability

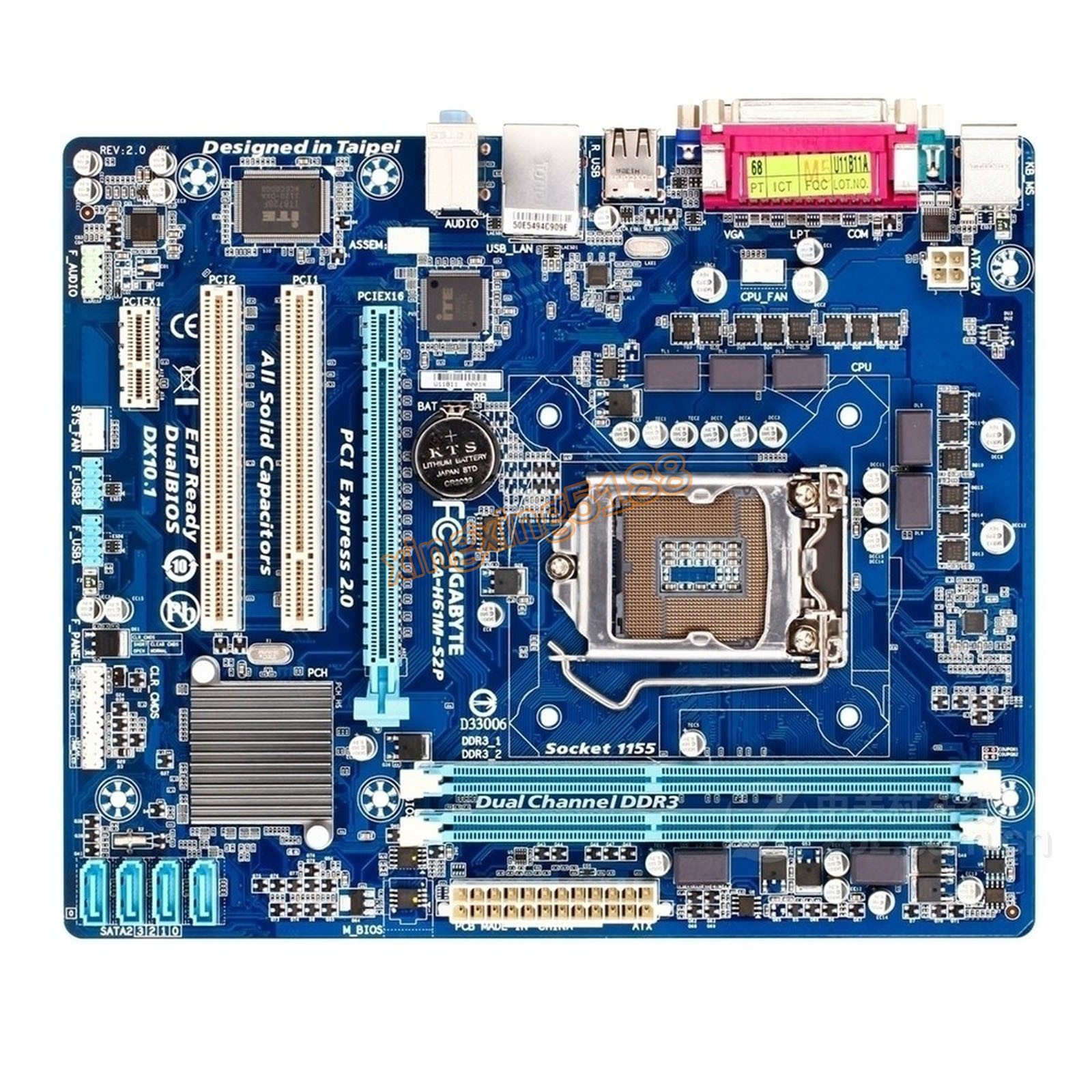

GA-H61M-S2P Detailed Parameters
CPU1. Support for Core i7 processors/Core i5 processors/ Core i3 processors/Pentium processors/Celeron processors in the LGA1155 package2. L3 cache varies with CPU(Some Core processors require a graphic card.)
ChipsetFor Intel H61 Express Chipset
Memory1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.2. Dual channel memory architecture3. Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules4. Support for non-ECC memory modules
Onboard GraphicsIntegrated Graphics Processor:1 x D-Sub port
Audio1. Realtek ALC887 codec2. High Definition Audio3. 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN 1 x Atheros 8151 LAN chip (10/100/1000 Mbit)
Expansion Slots1. 1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)* PCIE Gen.3 is dependent on CPU and expansion card compatibility.2. 1 x PCI Express x1 slot(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)3. 2 x PCI slots
Storage InterfaceChipset:4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USBChipset:Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 3Gb/s connectors1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header2 x USB 2.0/1.1 headers1 x Clear CMOS jumper
Back Panel Connectors1 x PS/2 keyboard port1 x PS/2 mouse port1 x D-Sub port1 x serial port1 x parallel port4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks (Line In/Line Out/Microphone)
I/O ControlleriTE IT8728 chip
H/W Monitoring1.System voltage detection2.CPU/System temperature detection3.CPU/System fan speed detection4.CPU overheating warning5.CPU/System fan fail warning6.CPU/System fan speed control* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
Unique FeaturesSupport for Intel BIOSSupport for Q-FlashSupport for Xpress Recovery2Support for EasyTune* Available functions in EasyTune may differ by motherboard model.Support for ON/OFF Charge
Form FactorMicro ATX Form Factor; 24.4cm x 20cm
Packing List:1. H61 Motherboard x 12.Data Cable x 13. I/O Shield x 1(Without Original Packaging Box,Without User's Manual,Without Driver CD)
