Why bought from us?
Dear customers, if you read our this page, please continue to have a glance atme, I think you will be glad to select our items. We test the motherboard,check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all theparts no defect or DOA. You can buy it at ease.
About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushingagent, then put it into a safe box.
About the warranty:
Our parts have 90 days warranty, please note the following reason we don'taccept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hiddenmarks on them, to distinguish our items from others'.
Technical Tips:
A.Please do not use fake memory or if you'renot sure whether your memory fake or not, please do not try it on ourmotherboard.
B. Please check your CPU, and RAM without problem, then install on themotherboard.
C. If the motherboard can't run correctly, please first check yourCPUwhethercan be compatible with our motherboard, then check yourvideo card orpower supply.
D. 90% "can't boot" problemwas caused by RAM, please don't use "single side" RAM.(Please viewthe following picture)
Packet Included:

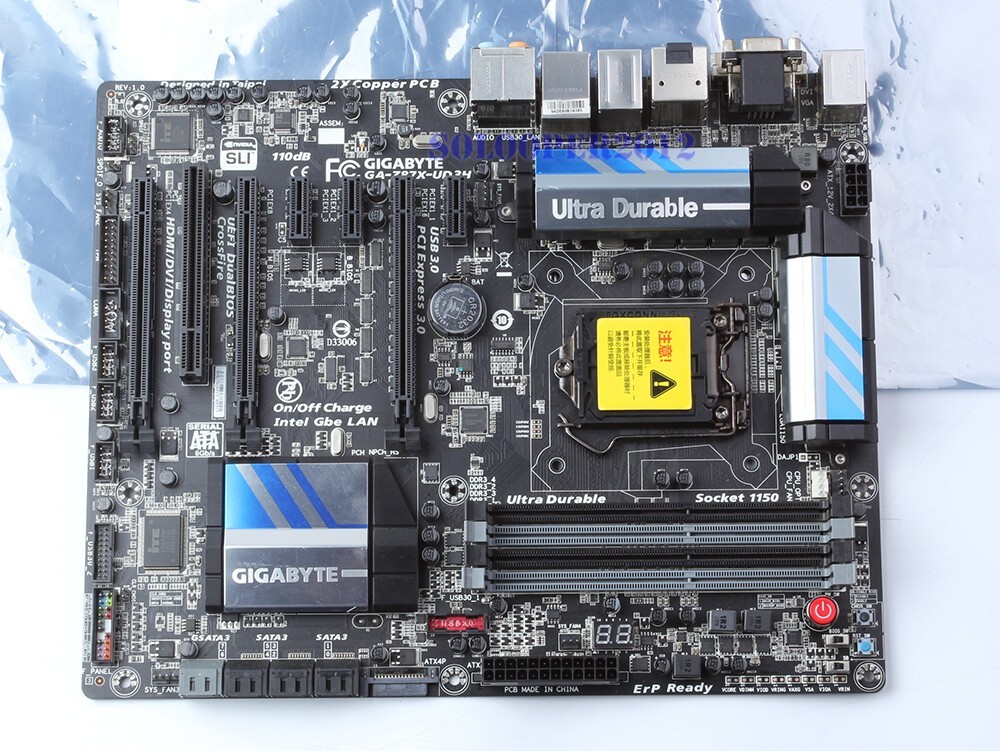

1 x motherboard
2 x generic SATA II cablesParts Specification:
CPU
- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z87 Express Chipset
Memory
- 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. - Dual channel memory architecture
- Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor - Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200at60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200at60 Hz
* The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
* Support for HDMI 1.4a version. - 1 x DisplayPort port, supporting a maximum resolution of 3840 x 2160 at 60 Hz / 2560 x 1600 at 60 Hz
* Support for DisplayPort 1.2 version. - Maximum shared memory of 1 GB
Audio
- Realtek® ALC898 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF In/Out
LAN
Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x8 (PCIEX8)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode. - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2/3 slots. The PCIEX1_2/3 slots will become unavailable when a PCIe x4 expansion card is installed.
* When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.) - 3 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) - 1 x PCI slot
Storage Interface
Chipset:
- 6 x SATA 6Gb/s connectors (SATA3 0~5) supporting up to 6 SATA 6Gb/s devices
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
Marvell® 88SE9172 chip:
- 2 x SATA 6Gb/s connectors (GSATA3 6/7) or 2 eSATA 6Gb/s connectors on the back panel, supporting up to 2 SATA 6Gb/s devices
* Use either the GSATA3 6, 7 connectors or the eSATA connectors at a time. - Support for RAID 0 and RAID 1
Multi-Graphics Technology
Support for 2-Way AMD CrossFire™/NVIDIA® SLI™ technology (PCIEX16 and PCIEX8)
USB
Chipset:
- Up to 2 USB 3.0/2.0 ports (available through the internal USB header)
- Up to 6 USB 2.0/1.1 ports (available through the internal USB headers)
Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:
- Up to 8 USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)
* Please download & install Win8 USB patch for better compatibility.
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x PCIe power connector
- 8 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 4 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF In header
- 1 x S/PDIF Out header
- 2 x USB 3.0/2.0 headers
- 3 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x Trusted Platform Module (TPM) header
- 1 x power button
- 1 x reset button
- 1 x Clear CMOS button
- Voltage measurement points
- 2 x BIOS switches
Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x DisplayPort
- 1 x optical S/PDIF Out connector
- 6 x USB 3.0/2.0 ports
- 2 x eSATA 6Gb/s connectors
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
- System voltage detection
- CPU/Chipset/System temperature detection
- CPU/CPU_OPT/System fan speed detection
- CPU overheating warning
- CPU/CPU_OPT/System fan fail warning
- CPU/CPU_OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI EFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
atBIOS
EasyTune
EZ Setup
ON/OFF Charge2
USB Blocker
Operating System
- Support for Windows 10/8.1/8/7
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Shipping:
Country
Agent
Estimate time
USA
Epacket Shipping
8-20 business days
Canada,Australia,New Zealand
Economy Shipping
12-25 business days
UK,Germany,France
Economy Shipping
10-25 business days
Other Europe Country
Economy Shipping
10-25 business days
Other Country
Economy Shipping
10-35 business days
Country
Agent
Estimate time
USA
Expedited Shipping
3-5 business days
Canada,Australia,New Zealand
Expedited Shipping
3-7 business days
UK,Germany,France
Expedited Shipping
3-6 business days
Other Europe Country
Expedited Shipping
3-6 business days
Other Country
Expedited Shipping
4-8 business days
Custom Tax:
Please note we're unable to take any responsibilityfor any custom delay or tax. The fees of import duty/tax are not included inthe item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additionalcosts would be before payment. And these fees are normally collected by thedelivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. Ifyou satisfy with our service and products, please leave us positive response.Your recognition is our power to move forward, especially to a beginner likeus. Your great comments will lead us to get more potential customers, and makeus more confident to develop business and serve you better.
But if you don't satisfy with the item, or you haveany concern about our transaction, please do first contact us, we will responseyou in 24 hours, and do our best to help you solve any problems.
Thank you for watching
