GeeekPi Terminal Hat for Arduino MEGA 2560 R3 🔌
Screw Terminal Breakout Board with Reset Button & LED Indicator
Overview

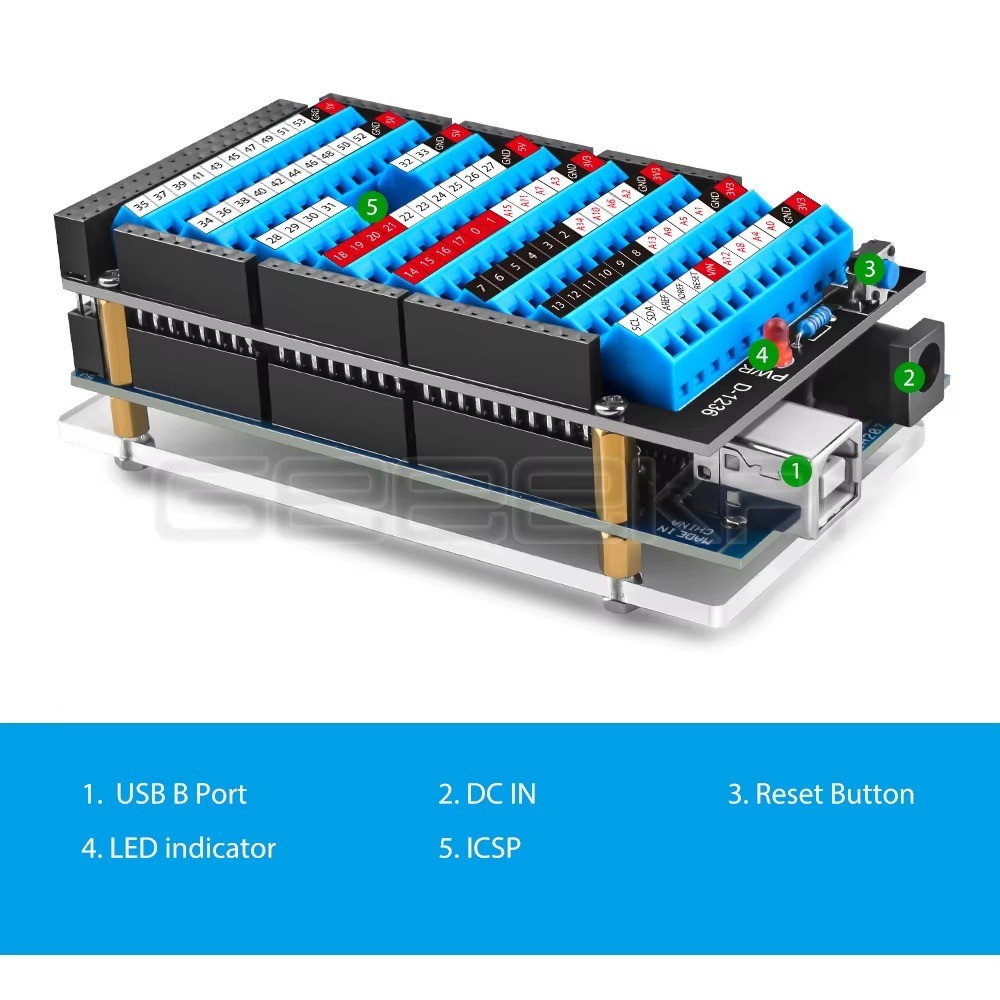

This terminal hat expansion board is designed for the Arduino MEGA 2560 R3, converting every pin into an easy-to-wire screw terminal block. It includes a reset button, LED indicator, and a protective acrylic panel for a clean, organized build.
FeaturesScrew Terminal Blocks
3.5mm/0.138" pitch terminals accept wire sizes from 26AWG to 16AWG, with a 5mm strip length for secure connections.
Reset Button & LED
Onboard reset button and LED indicator make prototyping and debugging easier.
Durable PCB Construction
FR-4 fiberglass PCB with dual copper layers ensures reliable, long-lasting performance.
Acrylic Protection Panel
Included clear acrylic panel with copper standoffs protects the board and gives a tidy, stacked appearance.
SpecificationsCompatible WithArduino MEGA 2560 R3Terminal Pitch3.5mm / 0.138 inchWire Size Range26AWG to 16AWGStrip Length5mmScrew TypeM2 SteelPCB MaterialFR-4 Fiberglass, Dual Copper LayersBattery IncludedNoPackage Includes
✅ 1 x Terminal Hat for Arduino MEGA 2560 R3
✅ 1 x Acrylic Protection Panel
✅ 8 x M2.5 Screws
✅ 4 x Long Copper Pillars
✅ 4 x Short Copper Pillars
Product ImagesFAQQ: Which board does this fit?
A: It is designed specifically for the Arduino MEGA 2560 R3 board.
Q: Does it include the acrylic panel and standoffs?
A: Yes, the acrylic protection panel, screws and copper pillars are all included.
Q: Is a battery required?
A: No battery is included or required; the board is powered through the connected Arduino MEGA.
