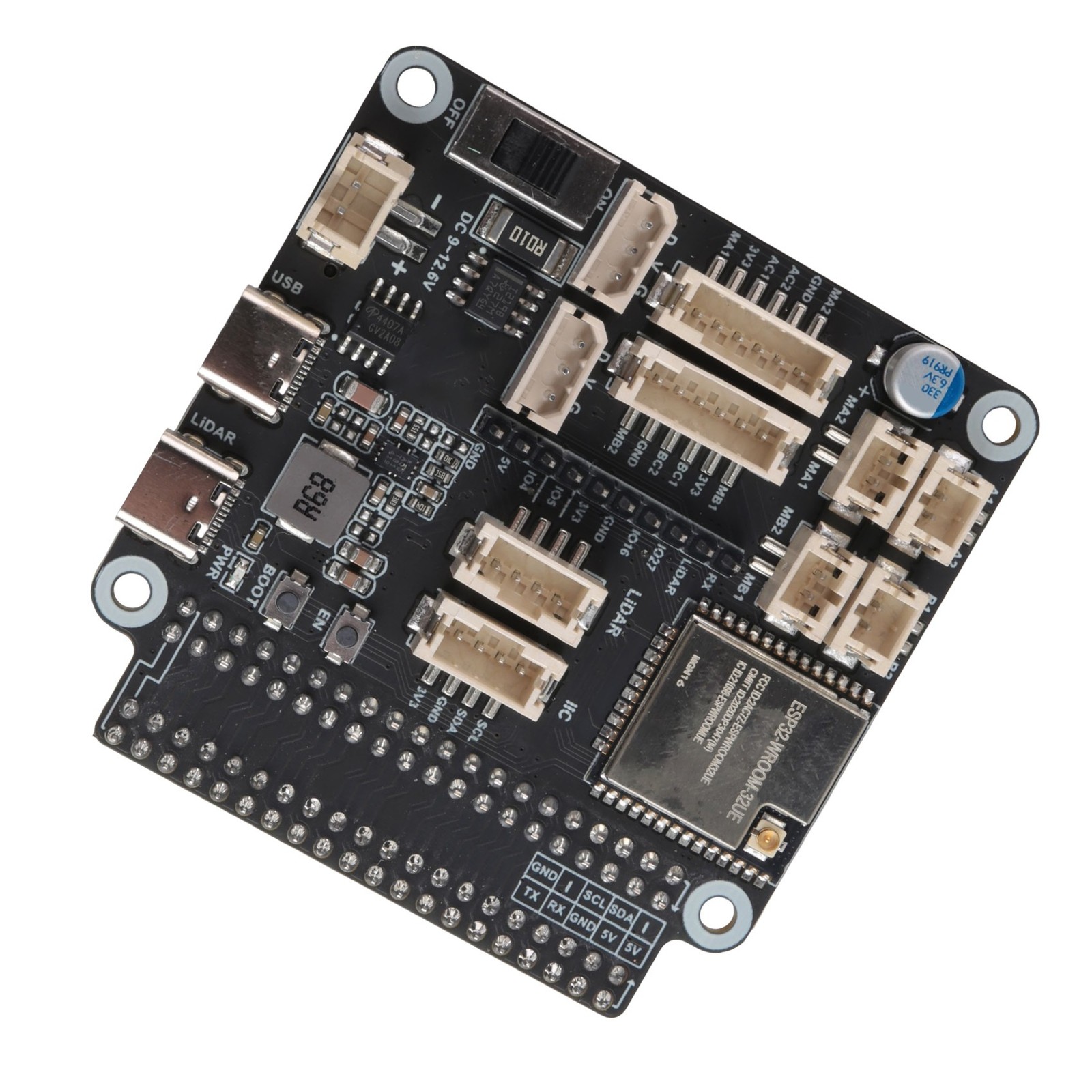

General Driver Board for Robots Based on Multi-Function Interface8532 Features: 1. Based on the --32 module, it supports wireless communication modes such as WIFI, Bluetooth and ESP-NOW. Onboard motor control interface can control 2 DC motors with encoder or 4 (two groups) DC motors without encoder
2. On-board bus steering gear control interface can control up to 253 ST3215 bus steering gear and obtain steering gear response. Onboard nine- IMU can obtain attitude and heading information at any time. 7~13V voltage input, can be directly powered by 2S or 3S lithium battery
3. With automatic download circuit, it is convenient to upload programs. Support input voltage and current detection. Onboard Micro-SD card slot. On-board laser-radar interface and integrated serial port to USB function.
4. interface, which can be used to expand peripheral devices of other OLED, IMU and other communication protocols. Multi-function expansion interface, which leads to the remaining interfaces for extending other functions, such as controlling steering gear or relay.
5. 40PIN extension interface, which can be used to connect the upper computer such as for raspberry pie, for Nano, for Sunrise X3 pie, communicate through serial port or , and supply power to the upper computer.
Specifications:
Main control module: --32
Main control chip:
Power supply voltage: DC 7~13V
Power supply interface: XH2.54
Antenna interface:
Download interface: Type-C
Wireless communication mode: WIFI, Bluetooth, ESP-NOW
Product size: 65 x 65mm
Positioning hole spacing: 49 x 58mm
Diameter of locating hole: 3mm
Material: PCB+metal
colour: black
Package Contents:
1 x General Driver for Robots
1 x Screw package
