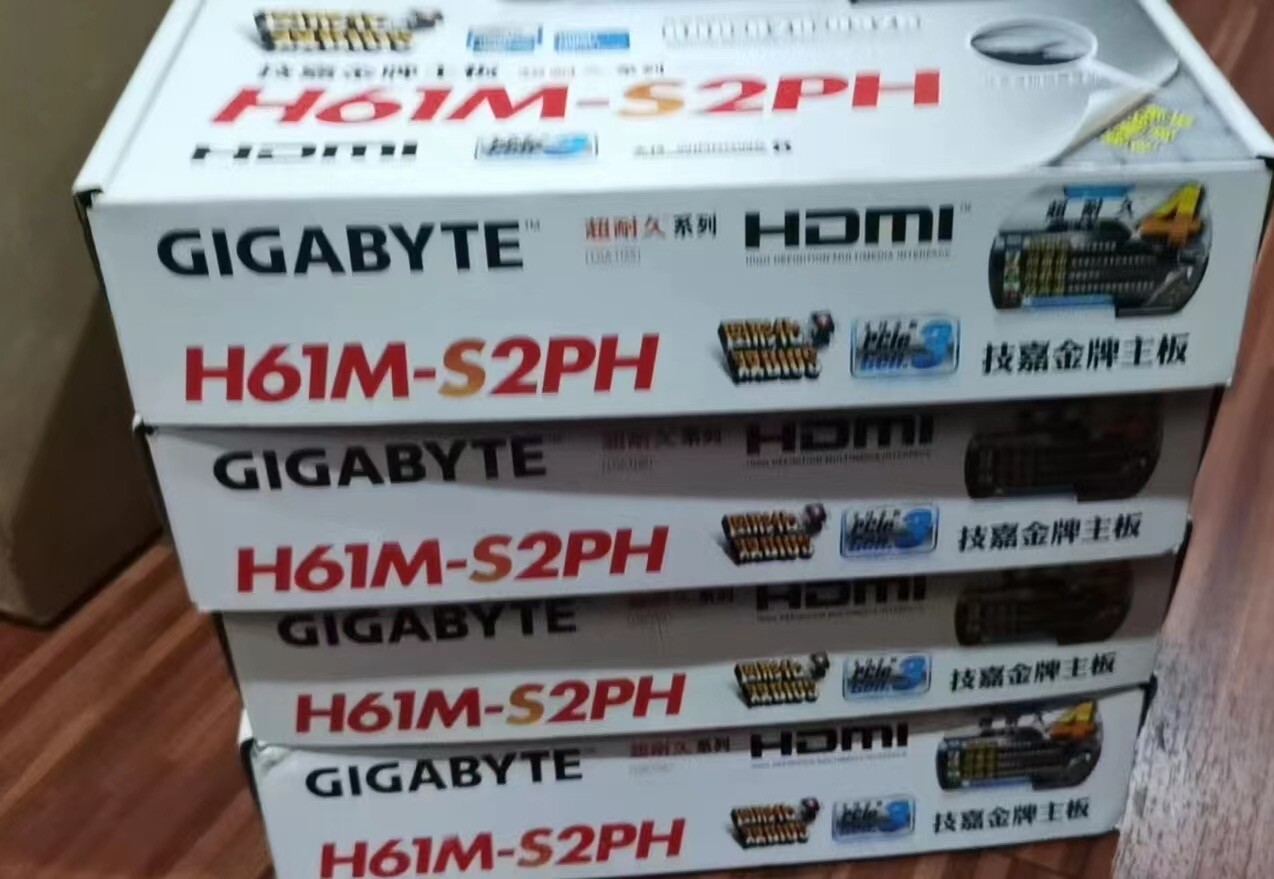

Gigabyte GA-H61M-S2PH LGA1155 Intel Core i7 i5 i3 Pentium Celeron DDR3 HDMI 1.4
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Gigabyte GA-H61M-S2PH LGA1155 Intel Core i7 i5 i3 Pentium Celeron DDR3 HDMI 1.4
Price: CN $95.83


  • Central Processing Unit (CPU)
    1. Support for LGA1155 socket processors: Intel Core i7 processor / Intel Core i5 processor / Intel Core i3 processor / Intel Pentium processor/Intel Celeron processor
    2. The L3 cache depends on the CPU

  • Chipset
    1. Intel H61 Express Chipset®
  • memory
    1. 2 x 1.5V DDR3 DIMM slots,* Supports up to 16 GB * Due to the limitations of the Windows 32-bit operating system, if more than 4 GB
      of memory is installed, the actual amount of memory displayed will be less than the actual installed memory capacity.
    2. Supports dual-channel memory technology
    3. Supports DDR3 1333/1066/800 MHz
    4. Supports non-ECC memory
    5. Support for Extreme Memory Profile (XMP) memory
      * XMP support requires Intel 22nm (Ivy Bridge) CPU.
  • Display featuresBuilt-in display processor:
    1. 1 x D-Sub socket
    2. 1 HDMI socket to support **1920x1200 resolution
      * Support HDMI version 1.4.
    3. Supports *Shared display memory*1 GB
  • sound effect
    1. Built-in Realtek ALC887 chip®
    2. Support for High Definition Audio
    3. Support 2/4/5.1/7.1 channels
      * To activate 7.1 channel audio output, you must use the front panel audio output of the HD (High Definition) audio module, and select the multi-channel audio function through the sound effect software.
    4. Supports S/PDIF output
  • Internet
    1. Built-in Realtek GbE network chip (10/100/1000 Mbit)®
  • Expansion slots
    1. 1 x PCI Express x16 slot supporting x16 operating specifications
      (PCI Express x16 slot supporting PCI Express 3.0)
      * PCI Express 3.0 support depends on the compatibility of the CPU and graphics card used.
    2. 1 PCI Express x1 slot
      (PCI Express x1 slot supports PCI Express 2.0)
    3. 2 PCI slots
  • Storage device interfaceBuilt into the chipset:
    1. 4 SATA 3Gb/s sockets for connecting 4 SATA 3Gb/s devices
  • USBBuilt into the chipset:
    1. *Support up to 8 USB 2.0/1.1 ports (4 on the rear panel, 4 need to be connected from the USB socket in the motherboard via a flat cable)
  • Socket attached
    1. 1 x 24-pin ATX mains power outlet
    2. 1 x 4-pin ATX 12V power outlet
    3. 4 SATA 3Gb/s sockets
    4. 1 x CPU fan socket
    5. 1 system fan socket
    6. 1 front control panel socket
    7. 1 front-end audio source socket
    8. 2 USB 2.0/1.1 sockets
    9. 1 serial port socket
    10. 1 x S/PDIF output socket
    11. 1 Clear CMOS Data function pin
  • The rear panel unit connects the socket
    1. 1 x PS/2 keyboard socket
    2. 1 x PS/2 mouse socket
    3. 1 parallel port
    4. 1 serial port
    5. 1 x D-Sub socket
    6. 1 HDMI socket
    7. 4 USB 2.0/1.1 sockets
    8. 1 RJ-45 port
    9. 3 source connectors (source in/source out/microphone)
  • I/O controller
    1. Built-in iTE I/O controller chip
  • Hardware monitoring
    1. System voltage detection
    2. CPU/system temperature detection
    3. CPU/system fan speed detection
    4. CPU overtemperature warning
    5. CPU/system fan failure warning
    6. CPU/System Intelligent Fan Control
      * Whether or not to support the CPU/System Intelligent Fan Control function depends on the different CPU/system cooling fans.
  • BIOS
    1. 2 x 32 Mbit flash
    2. Use an authorized AMI EFI BIOS
    3. Supports DualBIOS™
    4. PnP 1.0a、DMI 2.0、SM BIOS 2.6、ACPI 2.0a
  • Additional utility programs
    1. Support @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Recovery2
    4. Features that support EasyTune
      * EasyTune may vary by motherboard.
    5. ON/OFF Charge is supported


  • operating system
    1. Support for Windows 8/7/XP
  • PCB specifications
    1. Micro ATX specifications; 24.4 cm x 20 We accept all kinds payment.
