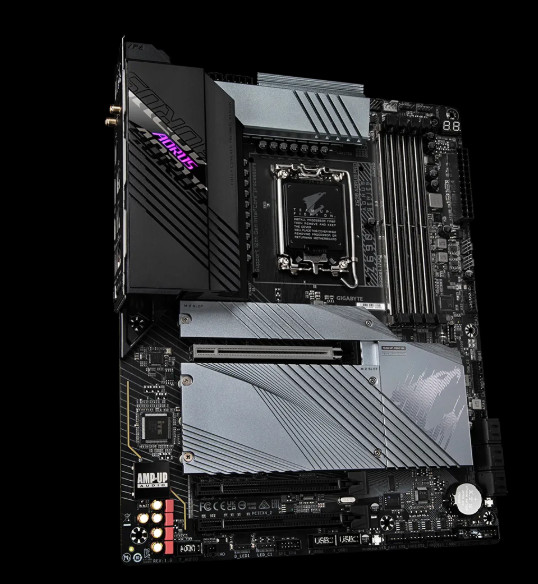

Product Description GIGABYTE Z690 AORUS PRO Official Specifications

Model: Z690 AORUS PRO Form Factor: ATX, 30.5 cm × 24.4 cm (12 in × 9.6 in)

CPU

• Socket: LGA 1700
• Chipset: Intel® Z690
• Supported CPU: 12th /13th Gen Intel® Core™, Pentium® Gold, Celeron® Processors
• Power Connector: 24-pin ATX main power, 8+4 pin CPU power
• VRM: 16+1+2 Direct Digital VRM Design, 90A per power stage

Memory

• 4 × DDR5 DIMM slots, Dual Channel
• Max Capacity: 128GB
• Memory Type: Non-ECC, Unbuffered DDR5
• Memory Speed: DDR5 up to 6600+ MHz (OC)
• Support Intel XMP 3.0, DDR5 XTREME Memory

Expansion Slots

• 1 × PCIe 5.0 x16 (CPU lane, SMT soldering, reinforced armor)
• 2 × PCIe 4.0 x16 (Chipset lane, run at x4)
• 1 × PCIe 3.0 x1
• Multi-GPU: AMD CrossFire™ supported

Storage

• 4 × M.2 M-key: PCIe Gen4 x4 (64Gbps)
• 6 × SATA III 6Gb/s ports
• RAID: RAID 0 / 1 / 5 / 10, Intel Optane Memory Ready
• Enlarged M.2 Thermal Guard heatsink for all M.2 slots

Rear I/O Panel

• 1 × USB 3.2 Gen 2x2 Type-C (20Gbps)
• 4 × USB 3.2 Gen2 Type-A (10Gbps)
• 4 × USB 3.2 Gen1 Type-A (5Gbps)
• 4 × USB 2.0 Type-A
• 1 × DisplayPort 1.4
• 1 × Intel® 2.5G Ethernet
• Intel Wi‑Fi 6 AX201 + Bluetooth 5.2
• 3 × Audio jacks + Optical S/PDIF out
• Q-Flash Plus button, Pre-mounted I/O shield

Internal Headers

• 1 × Front USB 3.2 Gen2x2 Type-C header (20Gbps)
• 1 × USB 3.2 Gen1 front header
• 2 × USB 2.0 front headers
• Fan headers: 1×CPU Fan, 1×CPU OPT, 1×AIO Pump, 4×Chassis Fan
• 2 × Addressable RGB headers & 2 × RGB headers
• Onboard TPM 2.0 header
• Chassis intrusion header

Audio

• Realtek ALC4080 HD Audio Codec
• 7.1 Channel HD Audio, WIMA audiophile capacitors, AMP-UP Audio

Special Features

• Full-coverage VRM heatsink + high quality thermal pads
• 6-layer PCB with 2oz thickened copper
• Smart Fan 6 with FAN STOP
• Q-Flash Plus (BIOS update without CPU/RAM/GPU)
• RGB Fusion 2.0 multi-zone RGB lighting
• SMD memory slot armor

Supported OS

• Windows®10 64-bit, Windows®11 64-bit
