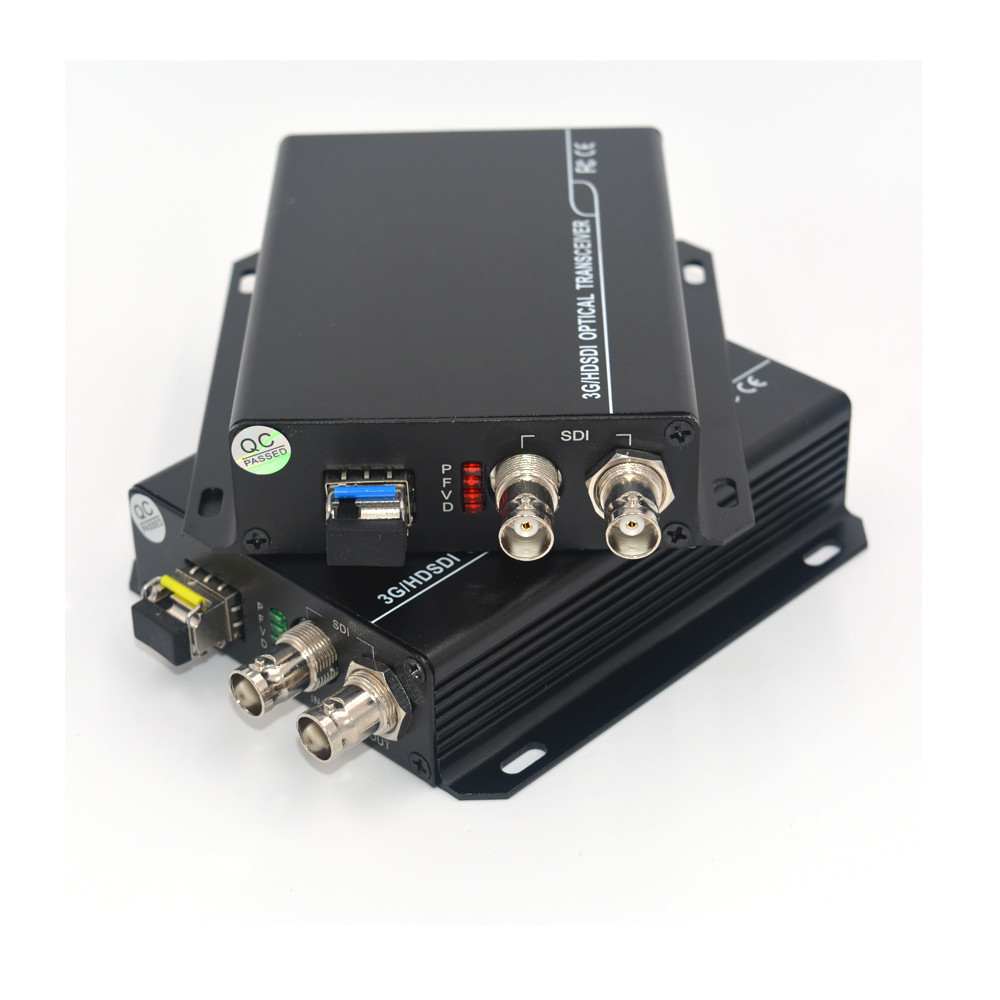

HD SDI Video/Audio over Fiber Optic Media Converters, Long Working distance up 20Km

Uncompressed transmission, Low singal loss and Ture HD video image

Overview:

The item is to transmission HD-SDI Video/Audio signal over single-mode or multimode fiber transmitter and receiver extender kit.

This unit provides optical transmission of one HD/SD-SDI signal with embedded audio signal and loop-out connectors on the transmitter & receiver for monitoring. The system support signals accord with standards support digital TV signals such as DVB-ASImeeting the industrialrequirements of audio and video equipment with high performanceand reliability. In addition, our innovative video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals.

The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate 1.5Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD-SDI signal transport.

Features:

1. It supports a maximum resolution of up to 1920*1080P.
2. Support 1.485Gbps (HD-SDI) and19.4Mbps(SD-SDI). 3G is optional
3. SFP simplex LC Optical interface, support hot-swappable
4. No compression transmission, super stable, excellent quality, no black screen splash screen phenomenon
5. Supports Plug and Play.
6. Transmission distance: 0~20Km by single mode , compatible with 0~300 Meters by multi-mode fiber
7. Product Size: 117 x 82 x 28mm (LxWxH)

Applicable for :

1. Long-distance transmission of military exercises HD video signal
2. Security monitoring high-definition video signal long-distance transmission
3. HD video signal transmission in large-scale performances
4. A variety of high-definition video should occasion

Package Include:

1 x HD-SDI Transmitter

1 x HD-SDI Receiver

2 x LCoptical module (simplex LC S/M)

2x Power adaptor AC100~240VDC5V/2A (default US, EU/UK/AU available)
