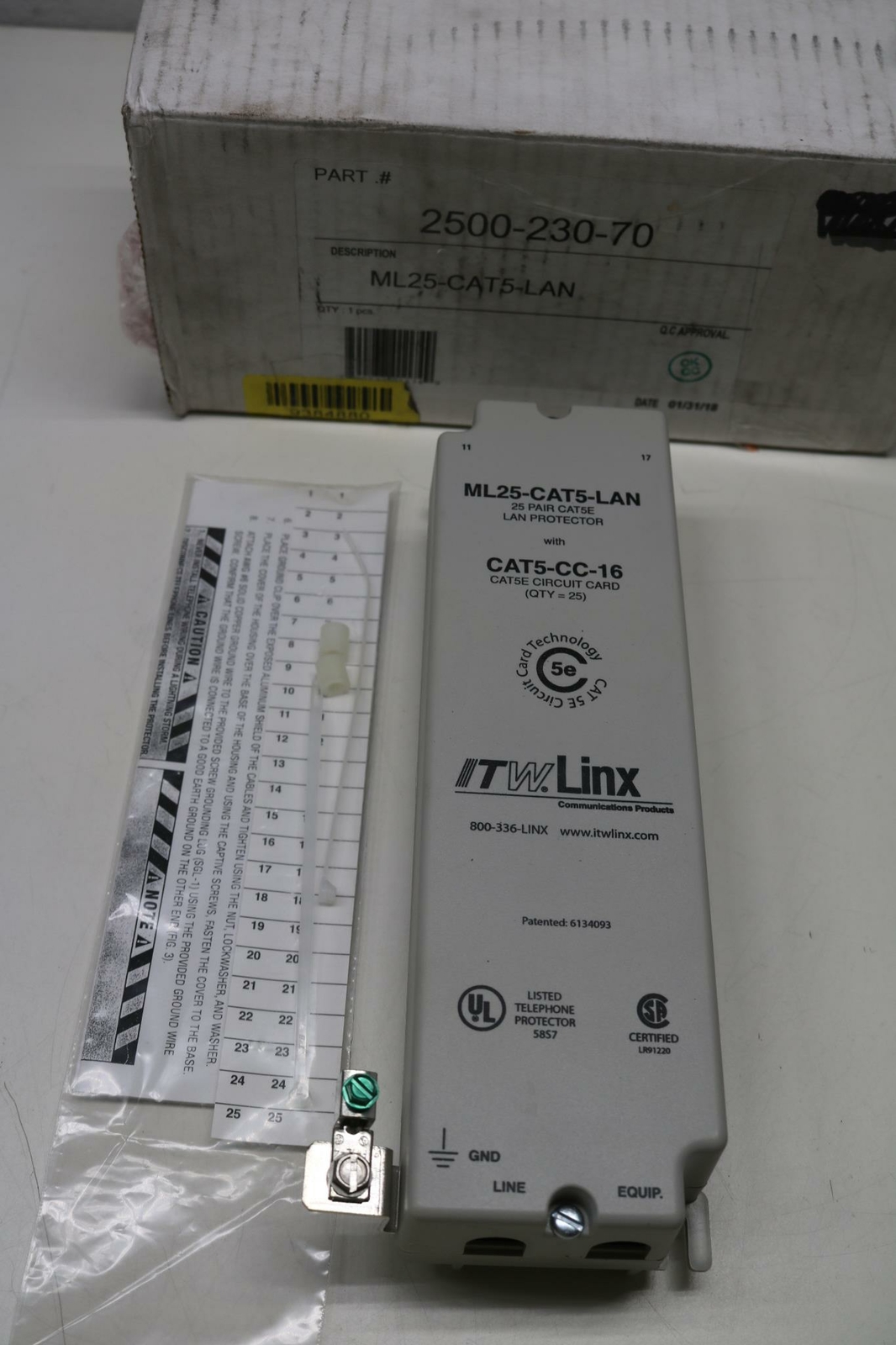

ITW Linx MultiLine Panel Surge Protector Cat 5E ML25-CAT5-LAN 25 Pair
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
ITW Linx MultiLine Panel Surge Protector Cat 5E ML25-CAT5-LAN 25 Pair
Price: US $244.99
ITW Linx MultiLine Panel Surge Protector Cat 5E ML25-CAT5-LAN 25 Pair ITW Linx MultiLine Panel Surge Protector Cat 5E ML25-CAT5-LAN 25 Pair

Brand New.

25 Pair CAT5E Rated Building Entrance Protector, 16V Clamping, 110 Connectors I/O, Wall Mount. UL Primary 497 & Isolated Loop 497B Protector Approval.
Applications: Protects CAT5E OSP or UTP cable in campus applications.

PRODUCT SPECIFICATIONS
  • Agency Approval UL Primary (497) and Isolated Loop (497B)
  • Grounding Requirements Field installed solid copper wire
    #6 AWG for Primary
    #14 AWG for Isolated Loop
  • Recommended Grounding Impedance <0.5 Ohm
  • Width / Height / Depth / Weight 4.06” / 10” / 2.25” / 1.41 lbs
  • Product Warranty 5 years
SIGNAL LINE SURGE PROTECTION: (TELCO)
  • Signal Perfect Circuitry / Fuseless Yes
  • Clamping Level 75V / 235V
  • Response Time 1-5 & Longitudinal
  • Wires Protected Up to 25-pairs
  • Termination Type 110 Punchdown
(LAN)
  • Signal Perfect Circuitry / Fused Yes
  • Performance Rating Cat 5e
  • Clamping Level 1-5 Protected Up to 25-pairs
  • Termination Type 110 Punchdown
FEATURES
  • UL Listed for Primary (497) and Isolated Loop (497B) applications
  • Single pair protection Scale the protection to the system size. Protect only the lines requiring protection
  • 100% Solid-state protection provides the fastest response to transient voltages (1-5 nanoseconds) by quickly diverting damaging surges to ground
  • Size - 25 pair Protection that fits the footprint of a 66 Block. Also snap-fits to standard 89D Brackets
  • Streamlined Installation Punchdown the OSP cable on the left side in the integral 110 Connectors. Grounding Hardware (included) clips on to the cable sheath. Punchdown the UTP cable on the right side into the integral 110 connections
  • Protector Card Technology&tm; Individual Protector Cards offer system scalability and serviceability

If there's something you're not sure about or have a question about anything, just send us a message by clicking "Ask a question" below the listing. Free Shipping is only for the inner 48 states (Large Freight Shipments Do Not Apply).

,
