Factory sealed and new.

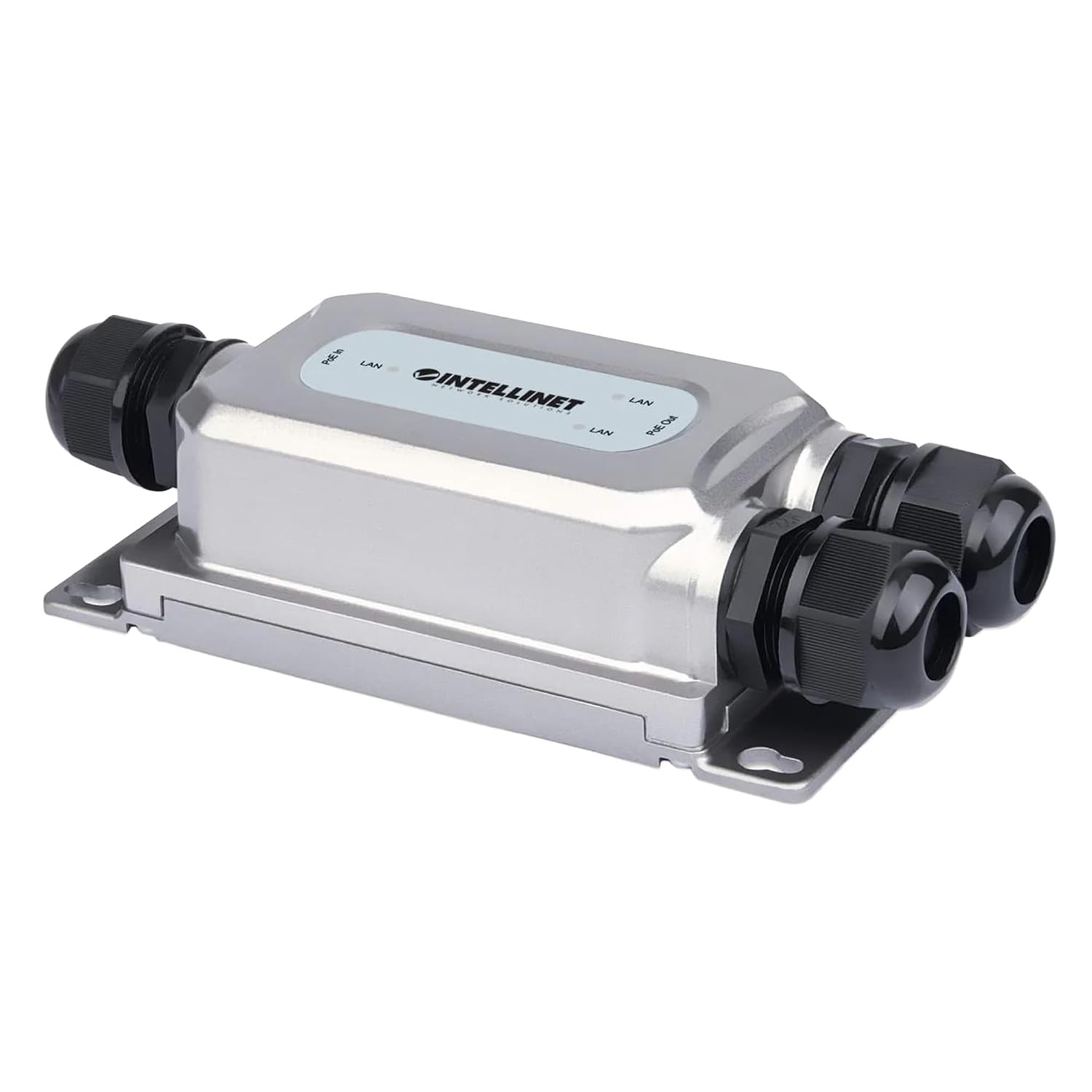

Photos are of the exact model you will receive!
US Seller — secure tracked shipping.Manufacturer's Description:This outdoor-rated PoE++ extender extends Gigabit Ethernet runs from 328 feet to 656 feet, allowing you to place two PoE devices much farther from the source while maintaining full Gigabit data speeds. Delivers up to 60W total power output, with up to 30W available on each of the two output ports.The unit is powered directly by the incoming PoE connection—no separate electrical outlet or local power supply needed. It accepts up to 95W input from IEEE 802.3bt, 802.3at, or 802.3af PoE injectors and switches, providing flexible deployment options.Built for outdoor use with a metal housing rated IP67 for complete dust and water resistance and IK10 for vandal resistance. Includes a grounding point and 6 kV port surge protection to safeguard equipment in exposed locations.Functions as a PoE-powered 3-port Gigabit switch with one Gigabit RJ45 input and two Gigabit PoE output ports. Supports 6 Gbps switch fabric, store-and-forward architecture, jumbo frames up to 9 kBytes, and 2048 MAC entries.Ideal for PoE cameras, wireless access points, and VoIP phones. Sends power only to IEEE 802.3at and 802.3af compliant devices; non-PoE devices receive data only. Simplifies mixed-network installations using existing cabling.Key Specifications:
- Dimensions: 5.9 x 2.87 x 1.73 inches
- Weight: 0.78 lbs
- Operating temperature: -4°F to 140°F
- Humidity: 10-90% RH non-condensing
- Maximum network cable diameter: 5.5 mm
- Power input: Up to 95W PoE++ (44-57V DC)
- Power output: 30W per port, 60W total
- Maximum range: 656 feet total link length
- MAC table: 2048 entries
- Switch fabric: 6 Gbps backplane
- Data transfer rate: 1000 Mbps
- Surge protection: 6 kV
- Housing: Metal with IK10 rating
- Standards: IEEE 802.3af/at/bt PoE
- Compatible with Cat5e cablingPackage includes extender, earthing kit, three IP67-rated cable glands, screws, and instruction manual. Wall-mounting holes provided for fixed placement.
