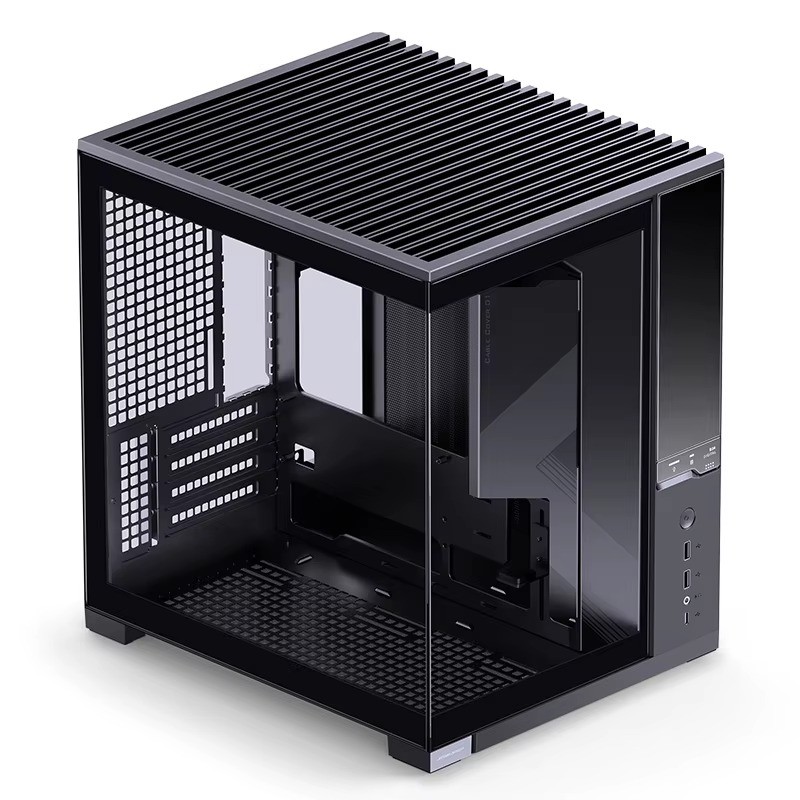

JONSBO D34 Compact Micro ATX PC Case

Sea-View Side Panel • Front Monitor Display • BTF Motherboard Ready “🖥️💧”

Key FeaturesFront Hardware Monitor Screen

Built-in digital display on the front panel lets you monitor system stats at a glance for a true showcase build.

BTF Motherboard Support

Compatible with back-connect (BTF) motherboards for a clean, cable-free rear interior look.

240/280mm Water Cooling Ready

Top mount supports 240mm or 280mm radiators for serious thermal performance.

Tempered Glass Side Panel

Wide tempered glass window with a sea-view style layout shows off your build from multiple angles.

SpecificationsModelJONSBO D34Form FactorMini-ITX / Micro ATX, supports back-connect (BTF) motherboardsCase Dimensions338.5mm (D) x 288.9mm (W) x 366mm (H)Net Weight6.685kgDrive Bays2x 3.5" HDD, 2x 2.5" SSDExpansion Slots4Fan SupportTop: 2x120mm/140mm, Rear: 1x120mm, Bottom: 2x120mm/140mm (fans not included)Water Cooling SupportTop 240mm/280mm radiatorPower SupplyATX PS2 (not included)Max CPU Cooler Height165mmMax GPU Length333mmFront I/OUSB 3.2 Gen2 Type-C x1, USB 3.0 x2, Audio+Mic 2-in-1MaterialTempered glass side panelColorsBlack, WhiteChoosing Your Option

This listing offers two color variations, Black and White. Both include the identical D34 chassis, front monitor display, and BTF motherboard support. Fans, power supply, and water cooling radiator are not included with either option.

Product ImagesFAQDoes this case include fans or a power supply?

No, fans, PSU, and water cooling radiator are sold separately. The case supports the fan and radiator sizes listed in the specs above.

What motherboard sizes fit?

Mini-ITX and Micro ATX motherboards, including back-connect (BTF) style boards.

What is the maximum graphics card length?

Up to 333mm.

Does the front display require special software?

The front panel monitor screen works with standard motherboard monitoring utilities.
