This ProLine Parabolic Antenna is engineered to suppress side-lobes and back-lobes and are excellent at rejecting interference. These parabolic antennas maximize the potential of your radio by improving signal strength and reducing the noise floor in your link. Our parabolic antennas are perfectly suited for high density point-to-point client-premises or backhaul applications.

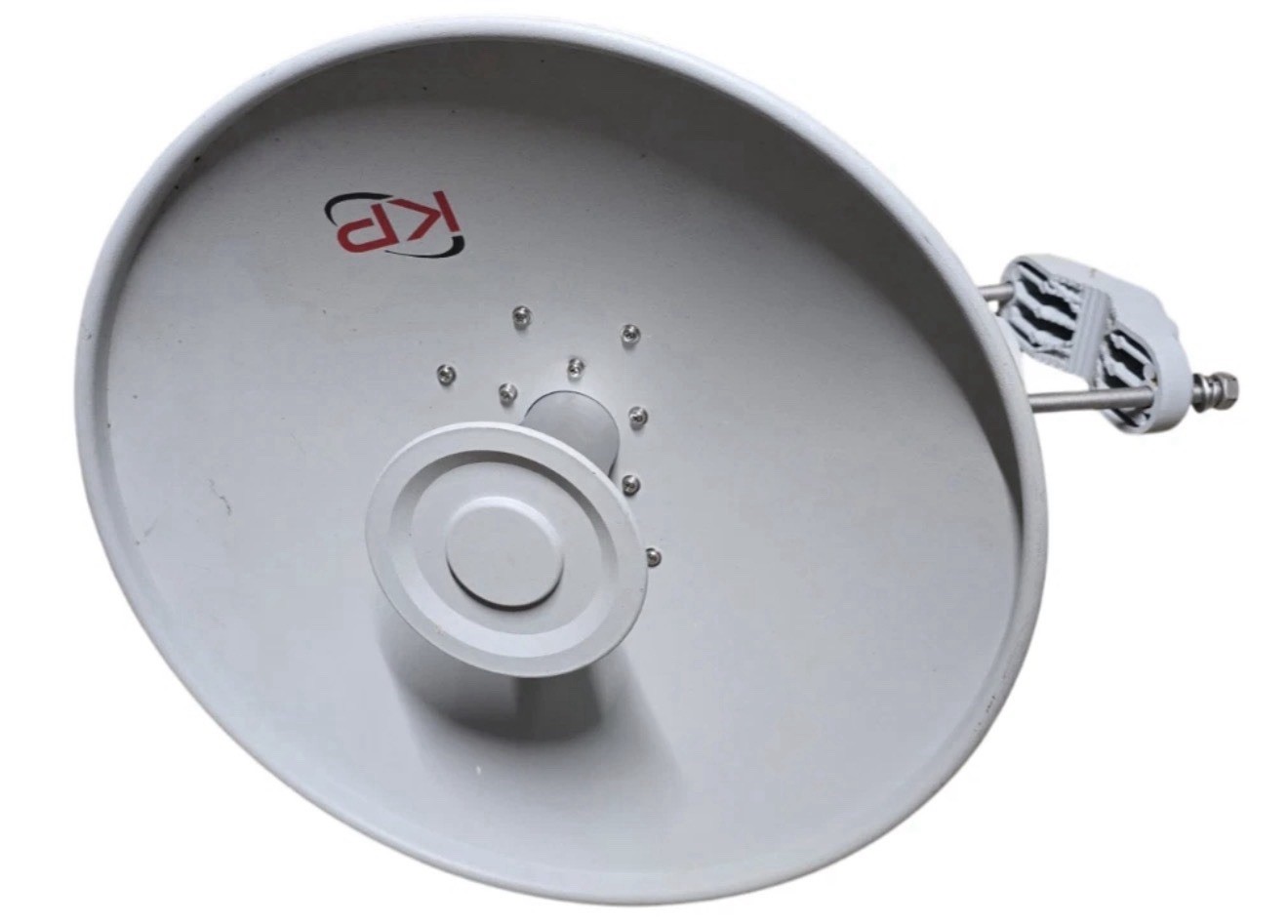

The KP-5PDUIS5-2 is a 2-foot, 29 dBi parabolic antenna operating from 4.9 GHz to 6.4 GHz. This antenna includes a specially designed quick-connect, weatherproof radio adapter specifically for the Ubiquiti® : PrismStationTM 5AC, IsoStationTM 5AC, IsoStationTM M5. The radio unit simply slots into place onto the adapter housing. The radio’s fast-release button makes removing the radio simple and fast. This parabolic antenna also features H/V or ±45° slant polarization options and boasts excellent front-to-back of 40 dB.

Features

Stable gain over ultra-wide bandwidth of 4.9 GHz - 6.4 GHz

Optimized F/B & side-lobe suppression minimizes interference

Included Ubiquiti® : PS-5AC, IS-5AC, IS-M5 push-in adapter is fully weatherproofed

Patented Quick-Connect Waveguide technology

Installs in minutes to reduce service calls and installation time

Quick connect waveguide allows rapid change of polarization

Integrated handle / hoisting hook for added safety and convenient installation

Heavy-duty bracket with fine elevation and azimuth adjustment

Mounts to any size mast from 0.75" to 4.5"

Specifications

Frequency Diameter

:

25" (2-Foot)

Polarization Type

:

H/V or ±45 Slant

Gain

:

29.5 dBi

Vertical Polarization

:

32 dB
