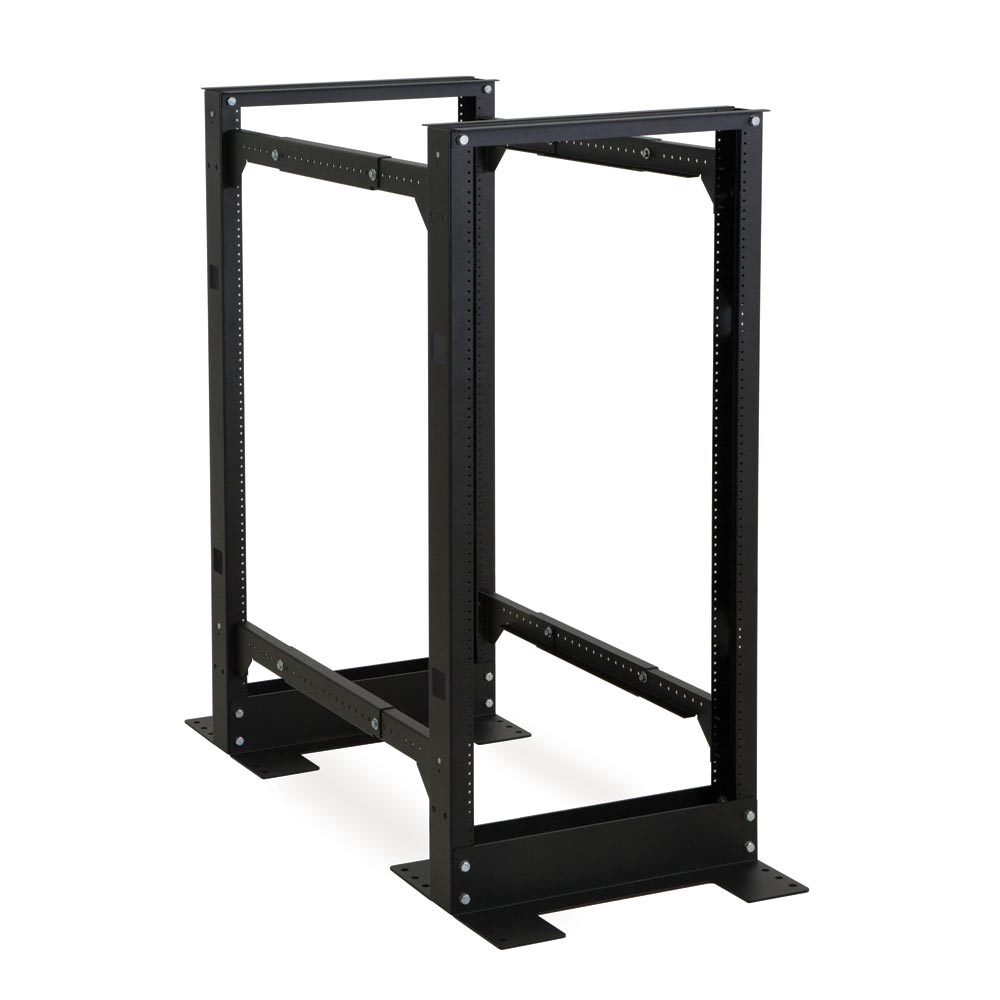

Kendall Howard 24U 4-Post Adjustable Rack- USA Made
Mfr #1940-3-100-24
Certified Partner
Made in the USA
Lifetime Warranty
Foran adjustable 4-point solution ideal for data centers and wiringclosets, go with the 4-Post Adjustable Rack that easily mounts to anyconcrete surface with a Wedge Anchor Kit.Its usable depth can adjust from 26” to 38” so you’re not left with afixed depth. To adjust the depth, simply move each bracket to yourdesired depth and secure the hardware in place. If you need a largersolution, gang multiple 4-Post Adjustable Racks together by using theganging holes found on each side. You can even gang both the 24U and 45U size racks together because the holes align. For installations thatrequire connections be made above the rack, such as trunk cabling orladder racks, simply go through the completely open frame at the top.The 4-Post Adjustable Rack features eight ¼-20 x 0.5” grounding studs onthe inside of the four rails that allow you to ground your equipmentdirectly to those studs. Also included with the rack are serrated toothwashers that, when tightened, dig in and remove paint from the rack,establishing electrical continuity throughout the rack. With itsstrength, durability, and adjustability the 4-Post Adjustable Rack is asure fit for your next Adjustable usable depth from 26” to 38”
• 10-32 tapped rails
• Includes 50 10-32 rack screws
• Includes eight 1/4-20 grounding studs
• Ships knocked down
• Gangable
• 1,600 lb. weight capacity
• 19” EIA compliant
• Made in the USA
• Limited Lifetime Warranty
• Adjustable 35.04" to 50.04" (usable depth adjusts from 26" to 38")
• Depth 36.2"
• Height 47.37"
• Weight 68.00 lbs.
• Shipping Dimensions 68" L x 8.75" W x 5" H
• Material(s) CRS (Cold Rolled Steel)
• Black Powder Coated Finish
• Made in the USA
• Limited Lifetime Warranty
Adjustable Rack
The 4-Post Adjustable Rack can adjust its usable depth from 26” to 38” so it can be used in multiple network installations. Durability
The4-Post Adjustable Rack’s welded L bracket base and cold rolled steeldesign forms a sturdy, reliable rack. Floor mounting holes are availableto secure the rack to the floor for maximum durability. We alwaysrecommend installing your heaviest equipment at the lowest points on therack. Gangable
Gangingholes on both sides of the rack make it easy to gang and securemultiple racks together. The sides also feature cable pass through holesto allow cabling to pass from one rack to the next. Electrical Grounding
Therack features eight ¼-20 x 0.5” grounding studs on the inside of thefour rails. These studs allow you to ground your equipment directly tothe stud or with the use of bus bars, not included. The rack alsoincludes serrated tooth washers to allow the frame to be grounded duringthe assembly process. Open Top Design
The4-Post Adjustable Rack’s completely open top allows for smaller trunkcabling, and makes the rack compatible with most ladder racks andaccessories.
What's in the box?
Qty 4 – 24U Rails
Qty 4 – L Bases
Qty 4 – Upper Support Brackets
Qty 2 – Adjustable Left Arms
Qty 2 – Adjustable Right Arms
Qty 2 – Adjustable Center Arms
Qty 8 – 1/4-20 Grounding Studs
Qty 50 – 10-32 Rack Screws
Qty 1 – Assembly Hardware Pack
