Product Details
Features:
1. Supports remote control, enabling remote power on/off
2. Features dual on-board 2.54mm pin headers; the parallel design is compatible with mainstream ATX motherboards

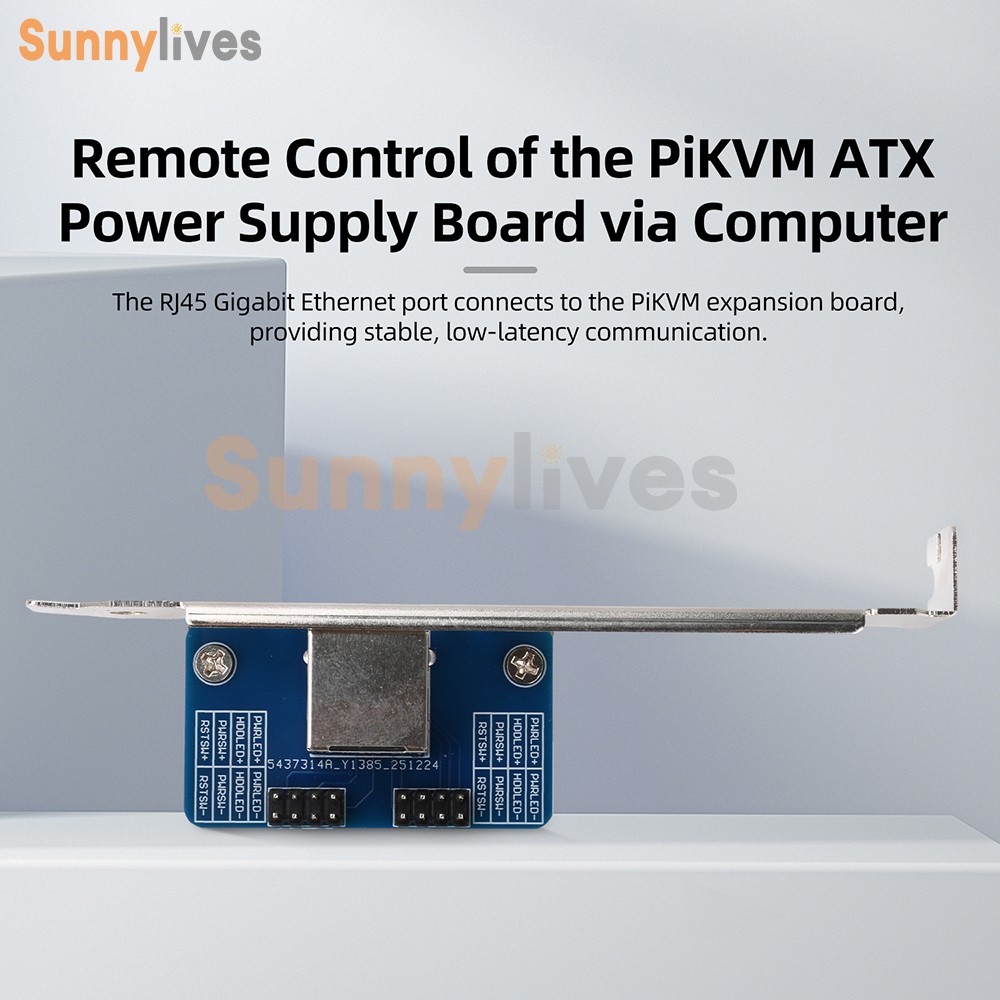

3. RJ45 Gigabit Ethernet port connects to the PiKVM expansion board, ensuring stable, low-latency communication
4. Integrated status indicator lights provide a clear overview of operational status
5. Easy to use; simply plug in and assemble to get startedDescription:
The PiKVM ATX Power Board serves as a component of the PiKVM remote management system, enabling control of the target computer’s power (PWR) and reset (RST) functions, whilst displaying the status of the PWR and HDD indicator lights. It must be used in conjunction with the PiKVM expansion board, connected via a Category 6 Gigabit Ethernet cable.Performance and Features:
On-board 8-pin RJ45 port, connected to the ATX port on the PiKVM expansion board via a Category 6 Gigabit Ethernet cable
Equipped with a full-height 4U PCIe bracket
Supplied with a 2.54mm 8-pin DuPont cable for connection to the computer motherboard
On-board 2 x 2.54mm 2×4-pin header connectors
Includes status interfaces for PWR (power), RST (reset), PWR indicator light and HDD indicator light; the two interfaces are in parallel
ATX power control RJ45 port: Connect to the PiKVM expansion board using a Category 6 Gigabit Ethernet cable
ATX power control 2.54mm 2x4-pin header: The two channels are in parallel (although there are two channels, it is recommended to use them to control only one computer)
PCB dimensions: 49mm x 28mmInstructions:
Assembling the PiKVM ATX Power Board
● Secure the ATX power board onto the PCIe slot of the controlled computer
● Use an 8-pin 2.54mm DuPont cable to connect the ATX power board to the power and LED interfaces on the controlled computer’s motherboardNote: The LED polarity must be correct, but the PWR and RST buttons are non-polarised and can be connected in either direction!Product Contents:
PiKVM ATX Power Board for Remote Computer Control x1
2.54mm-8P DuPont cable x1
Screw x1
