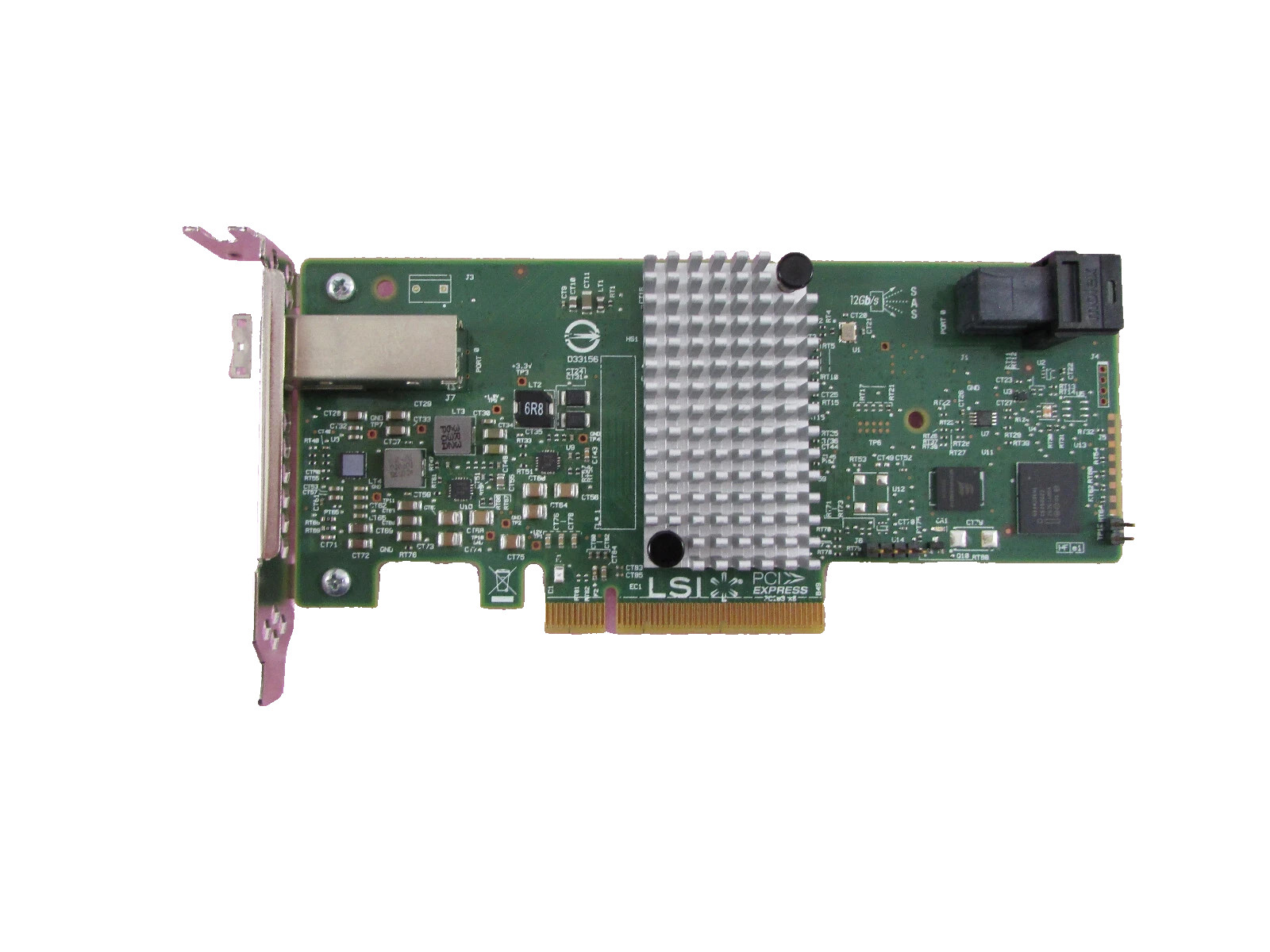

Broadcom SAS9300-4I4E Single SAS 4 Port 12Gb/s PCI-Express 3.0 x8 SAS Host Bus Adapter With Low Profile BracketBROADCOM SAS9300-4I4E Single Sas 4 Port 12gb/s Pci-express 3.0 X8 Sas Host Bus Adapter

Key Features

Host Bus Type X8 Lane Pci Express 3.0

Physical Dimensions Low Profile (2.6” X 6.0”)

Devices Supported 1024 Non-raid Sas/sata Devices

External Connectors 1 Mini-sas Hd Sff8644

Fusion Mpt Support Fusion Mpt 2.5

Internal Connectors 1 Mini-sas Hd Sff8643

Internal Ports 4

Operating Temperature 0°c To 55°c

Operating Voltage +12v +/-8%, 3.3v +/-9%

Os Support Microsoft Windows, Linux (suse, Red Hat), Solaris, Vmware, Freebsd. See The Downloads Page For Details On Versions. The Hba Supports Solaris 10, And Oracle Provides A Built-in Driver, Installation Of An Lsi Driver Is Not Required.

Pci Power 14.2w

Cable Support Passive Copper, Active Optical (external Only)

I/o Controller Lsi Sas3008

Mtbf > 2,800,000 Hours

Operating Humidity 5% To 90% Non-condensing

Data Transfer Rates 12gb/s Sas-3 Compliant
