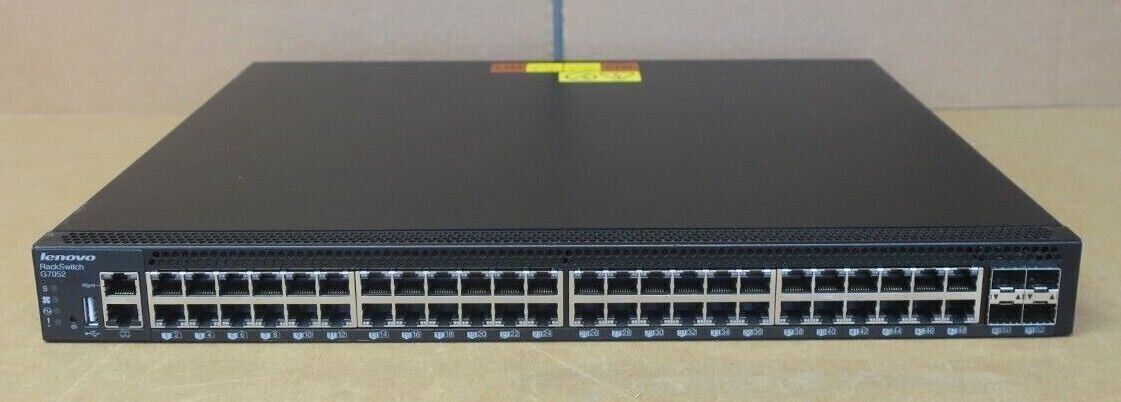

Lenovo RackSwitch G7052 7159-HCS 48x 1GbE + 4x 1/10Gb SFP+ Port Switch 00MY224
Machine Type:7159-HCSModel:G7052
In Good Condition, Full Working OrderTested
Rear to Front AirFlow
Included:

• 1 xLenovo RackSwitch G7052 7159-HCS 48x 1GbE + 4x 1/10Gb SFP+ Port Switch 00MY224

Description:
The Lenovo RackSwitch G7052 is a low-cost, entry-level Layer 2 1/10 Gb Ethernet switch that is designed for the data center. Data center customers continue to deploy applications by using 1 GbE networking switches while 10 GbE continues to grow upstream in the network as clients require greater I/O bandwidth. The RackSwitch G7052 is an ideal solution for data center customers who need an economical 1 Gb and 10 Gb connectivity solution.
The RackSwitch G7052 is a top-of-rack data center switch that delivers excellent non-blocking, wire speed performance at an attractive price point. It supports 48x 10/100/1000BASE-T RJ-45 ports and four 10 Gigabit Ethernet SFP+ ports standard, while typically using only 76 watts of power. The RackSwitch G7052 is also designed with rear-to-front airflow, which allows for flexible mounting of the switch in a rack cabinet and provides convenient cable management and significant savings in cooling costs.
Specification:

• Form factor:1U rack mount
• Ports:
• 48x Gigabit Ethernet (GbE) RJ-45 fixed ports
• 4x SFP/SFP+ ports
• SFP/SFP+ media types:
• 10 Gb Ethernet SFP+:
• 10 GbE short-range (SR) SFP+ transceivers
• 10 GbE long-range (LR) SFP+ transceivers
• 10 GbE RJ-45 SFP+ transceivers
• 10 GbE SFP+ active optical cables (AOCs)
• 10 GbE SFP+ direct attach copper (DAC) cables
• 1/10 Gb Ethernet SFP+:
• 1/10 GbE SX/SR SFP+ transceivers
• 1 Gb Ethernet SFP:
• 1 GbE short-wavelength (SX) SFP transceivers
• 1 GbE long-wavelength (LX) SFP transceivers
• 1 GbE RJ-45 SFP transceivers
• Port speeds:
• 1 GbE RJ-45 fixed ports: 10/100/1000 Mbps autosensing
• 10 GbE SFP+ transceivers, DAC cables and AOCs: 10 Gbps
• 1/10 GbE SFP+ transceivers: 1 Gbps or 10 Gbps
• 1 GbE SFP transceivers: 1 Gbps
• Switching method:Cut-through.
• Data traffic types:Unicast, multicast, broadcast.
• Software features :
• Lenovo Networking OS:
• Layer 2 switching, virtual local area networks (VLANs), VLAN tagging, spanning tree protocol (STP), link aggregation (trunk) groups (LAGs), virtual LAGs (vLAGs), Hot Links, Layer 2 failover, quality of service (QoS), IPv4/IPv6 management.
• Performance:
• Non-blocking architecture with wire-speed forwarding of traffic:
• Up to 176 Gbps aggregated throughput
• As low as 3.3 microseconds switching latency
• Up to 131 Million packets per second (Mpps)
• Up to 12,288-byte jumbo frames
• Scalability:
• MAC address forwarding database entries: 8,000
• VLANs: 4,095 (512 active VLANs)
• Per VLAN Rapid Spanning Tree (PVRST) instances: 128
• Multiple STP (MSTP) instances: 32
• Link aggregation groups: 16
• Ports in a link aggregation group: 8
• Cooling:Three 2+1 redundant fixed fans. Rear (non-port side) to front (port side) airflow.
• Power supply:One fixed 90 W AC (100 - 240 V) power supply (IEC 320-C14 connector). Optional external power supply unit (PSU) is available for redundancy (one PSU with 4x 90 W DC output for up to four G7028 or G7052 switches).
• Hot-swap parts:SFP/SFP+ transceivers, SFP+ DAC cables.
• Management ports:1x 10/100/1000 Mb Ethernet port (RJ-45); 1x RS-232 port (RJ-45); 1x USB port (for additional firmware, log, and configuration files storage).
• Management interfaces:Industry standard command line interface (isCLI); SNMP v1 and v3. Optional Lenovo XClarity for discovery, inventory, monitoring and events.
• Security features:Secure Shell (SSH); Secure Copy (SCP); Secure FTP (sFTP); user level security, Role-based Access Control (RBAC); LDAP/LDAPS, RADIUS, and TACACS+ authentication; access control lists (ACLs); port-based network access control (IEEE 802.1x).
• Mean Time Between Failures:204,577 hours with ambient operating temperature of 40° C
• Dimensions:Height: 44 mm (1.7 in.); width: 439 mm (17.3 in.); depth: 382 mm (15.0 in.)
• Weight:6.1 kg (13.5 lb).

Boot Log:

RS G7052>show versionSystem Information at 04:50:32 Tue Aug2, 2022Time zone: No timezone configuredDaylight Savings Time Status: DisabledLenovo RackSwitch G7052Switch has been up for 0 days, 0 hours, 8 minutes and 40 seconds.Last boot: 04:42:13 Tue Aug2, 2022 (power cycle)MAC address: a4:8c:db:ff:db:00IP (If 1) address: 192.168.49.50Management Port MAC Address: a4:8c:db:ff:db:feManagement Port IP Address (if 128): 192.168.50.50Hardware Part No: 00VX093Old Hardware Part No:Switch Serial No: Y01SJ112AH6KManufacturing date: 18/41MTM Value: 7159-HCSOld MTM Value:ESN: J12AH6KSoftware Version 8.4.11 (FLASH image1), factory default configuration.Boot kernel version 8.4.11USB Boot: System dump exists in FLASH. The dump was saved at 08:43:12 Mon Dec6, 2021. Use 'copy flash-dump' to extract the dumps for analysis and 'clear flash-dump' to clear the FLASH MAC: 35 CTemperature 10G PHY: 33 CTemperature CPU: 30 CTemperature Air Inlet: 27 CTemperature 1G PHY: 33 CTemperature Air Outlet: 35 CSystem Warning at 64 C / Shutdown at 69 C / Set Point is 45 CFan 1 : RPM=9000 PWM=100% Back-To-FrontFan 2 : RPM=9000 PWM=100% Back-To-FrontFan 3 : RPM=9000 PWM=100% Back-To-FrontSystem Fan Airflow: Back-To-FrontInternalPower Supply: OnRedundant Power Supply: Not InstalledPower Faults: () Fan Faults: ()Service Faults: ()RS G7052>show interface informationAliasPort Tag RMON Lrn Fld PVIDDESCRIPTIONVLAN(s) TrkNVLAN-------- ---- --- ---- --- --- ------ -------------- = PVID/Native-VLAN is tagged.# = PVID is ingress tagged.Trk= Trunk modeNVLAN = Native-VLANCS 282072 dup .co.uk
