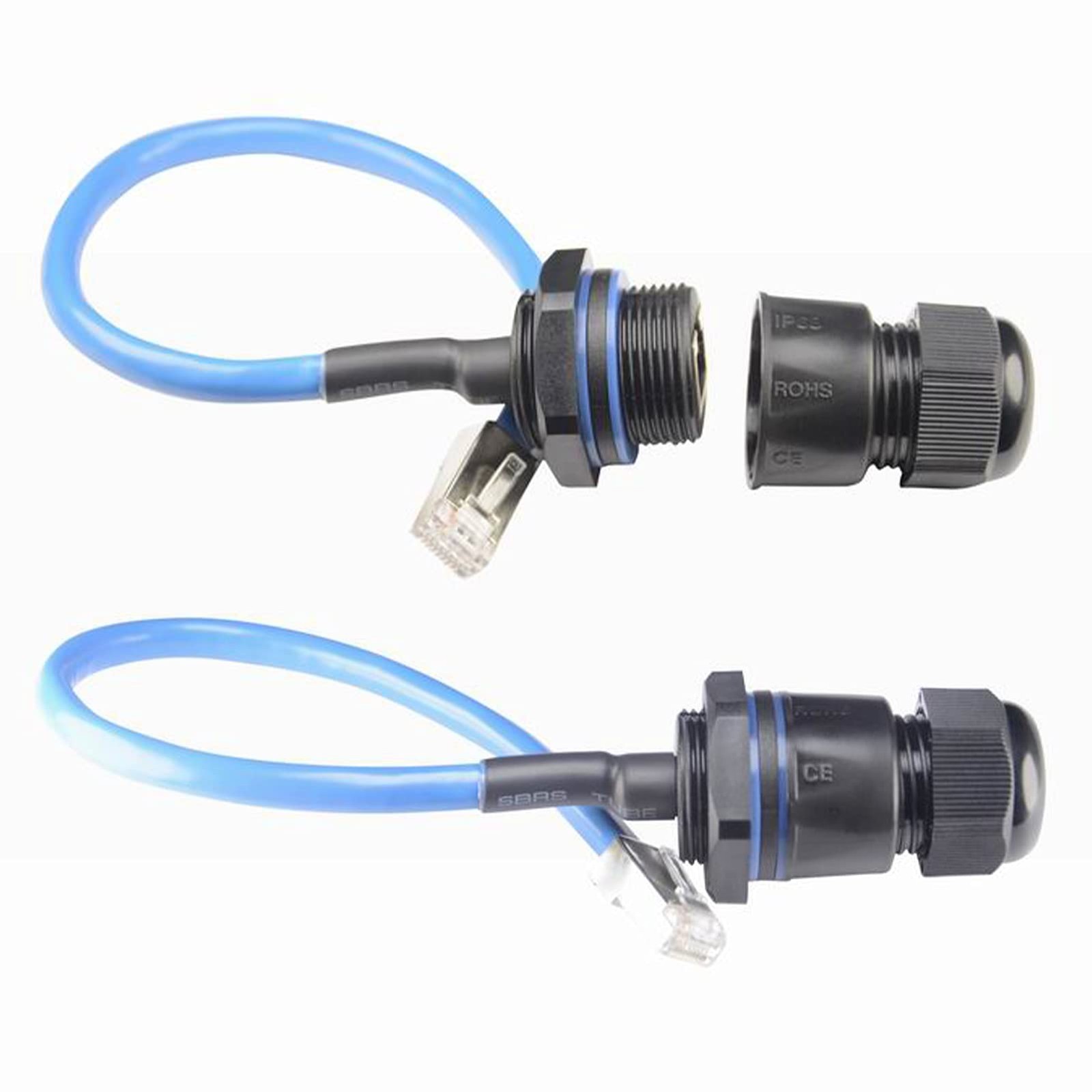

Welcome to my store, The Smart of your choice and satisfaction guarantee.2PCS M25 RJ45 Waterproof CAT6 Connector with 25CM Network CableProduct DescriptionThe female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. Specifications:
Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (3～8) mm
Case wall thickness: Threaded type: >3mm, through-hole type: 0.3~5mm
Installation size: M25*1.5
Network cable length: 250mm
Connector transmission classification: CAT6
Transmission speed range: 10BASE-T. 100 BASE-T.1000 BASE-T and 10000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: ＞500MΩ
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
resistance: ＜10MΩ
Material:
Shell: Nylon PA66 (UL94V-0)
Socket pin: 0.5mm diameter phosphor copper wire
pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Package Included:
2x Waterproof M25 Cat6 RJ45 Connector
Features
- PRODUCT FEATURES: Waterproof at one ends, the panel can be fixed, The other end has a 250mm network cable, which can be plugged into any standard RJ45 device that needs to be connected.
- IP67 WATERPROOF: The Waterproof RJ45 Connector are IP 67 Compliant. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- DURABLE: This RJ45 connector is well constructed and robust, flame retardant, UV resistant, and anti-aging.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to .
