Description MKS SERVO42C 42 Closed-loop Stepper Motor Driver Board Enabling Quiet Operation to Replace TMC2209
Download Documents:
[link removed by ]
Video Instruction:
Motherboard Parameters:
- Board type: MKS SERVO42CV 1.0
- Microprocessor: high-performance 32bit processor for ARM
- Motor driver: 8 MOSFET to form dual H bridge driver
- Input voltage: 7V-28V
- Sensor: Industrial-grade 16384 line magnetic encoder of high precision
- Working current: 0-3000mA
- Subdivision: 1~256
- Closed-loop response frequency: torque loop 20KHz; speed loop 10KHz; position loop 10KHz
- Maximum speed: About 150-180mm/s for 3D printing; about 145-162 characters/min for writing machine
- Angle resolution: over 0.08 degrees
- PCBA size: 39 x 39 x 1.6mm/1.5 x 1.5 x 0.06"

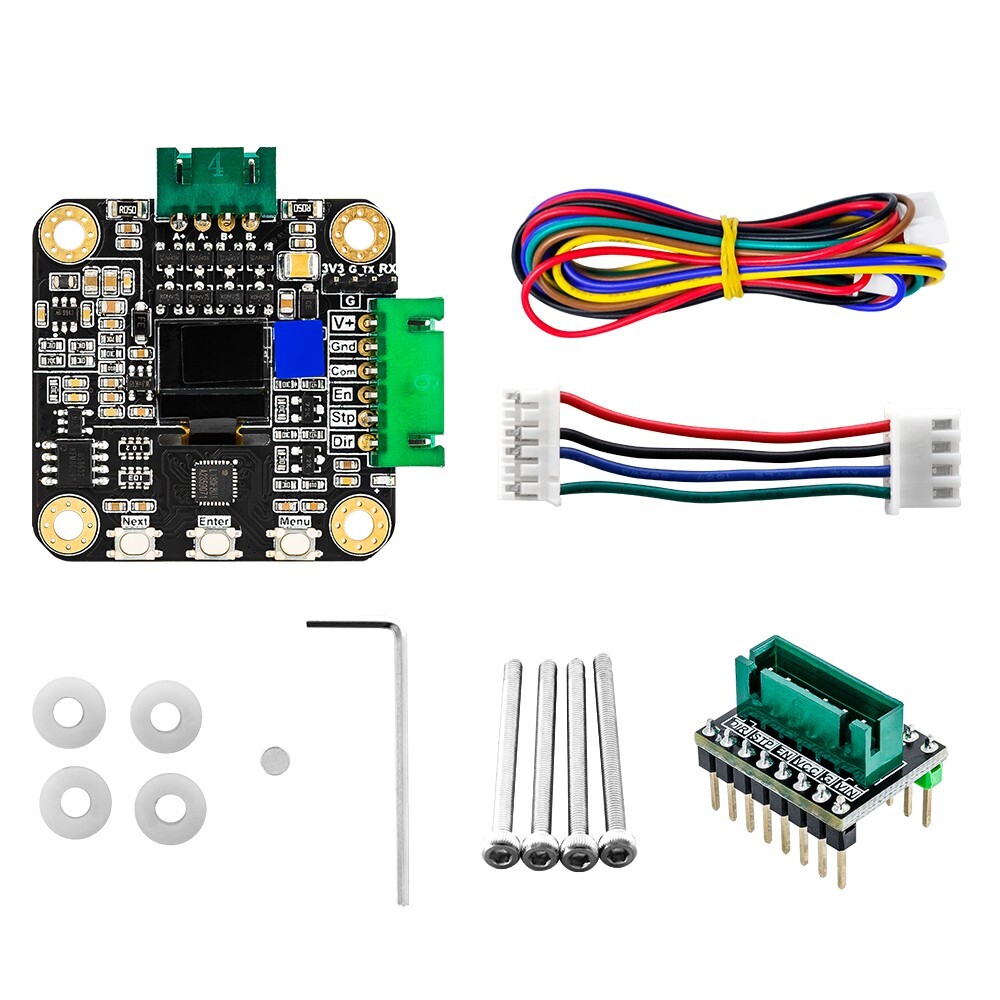

Package Included:
- 1 x MKS SERVO42C PCBA (excluding 42 stepper motor)
- 1 x Motherboard adapter board
- 4 x 304 Hexagon socket screws
- 4 x ABS isolation columns
- 1 x 6*2.5 Radial magnet
- 1 x Allen key-M3
- 1 x PCBA to motor wire
