Package Included:
1 x motherboard
1 x I/O back panel
2 x SATA II cable
Technical Tips:
A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.

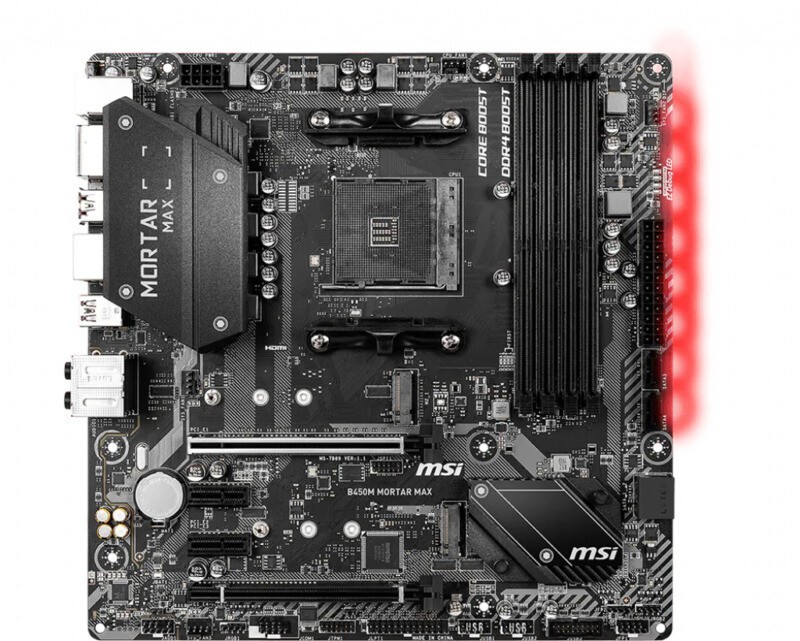

Parts Specification:
CPU
1st, 2nd, 3rd Gen AMD Ryzen™/1st, 2nd Gen Ryzen™ with Radeon™ Graphics/Athlon™ Desktop Processors with Radeon™ Graphics
Chipset
AMD® AMD® B450
RAM
4 x DDR4 slots, up to 128GB
Supports 1866/ 2133/ 2400/ 2667Mhz (via JEDEC)
AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (via A-XMP OC mode)
AMD other CPUs
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (via A-XMP OC mode)
Support dual channel
Support non-ECC UDIMM memory
Support ECC UDIMM memory (non-ECC mode)
Slot
1 x PCIe 3.0 x16 (PCI_E1)
Supports x16 speeds when using 1st, 2nd, and 3rd Gen AMD Ryzen™ processors
Supports x8 speeds when using Ryzen™ processors with 1st and 2nd generation built-in Radeon™ graphics
Supports x4 speeds when using Athlon™ processors with built-in Radeon™ graphics
1 x PCIe 2.0 x16 (PCI_E4, support x4 mode)11
• 2 x PCIe 2.0 x12
PCI_E4 will not work when M.2 SSD is installed in M2_2 PCI_E2 will not work when expansion card is installed in PCI_E3
Integrated graphics interface
1 x DisplayPort, supports 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz1,21,2
1 x HDMI™ 1.4, supports 4096x2160 @30Hz, 2560x1600 @60Hz1,21,2
Requires Ryzen™/Athlon™ desktop processor with 1st and 2nd generation built-in Radeon™ Graphics/ Athlon™ Desktop Processor with built-in Radeon™ Graphics Maximum shared video memory is 2048 MB
Multi-channel graphics card
Supports 2-Way AMD® CrossFire™ Technology
Storage
AMD® AMD® B450 Chipset
4 x SATA 6Gb/s11
1 x M.2 slots (M2_2, Key M)11
Support PCIe 2.0 x4 2242/ 2260 / 2280 specifications
AMD® CPUs
1x M.2 slot (M2_1, Key M)11
Supports PCIe 3.0 x4 (using 1st, 2nd, 3rd Gen AMD Ryzen™/1st, 2nd Gen Ryzen™ processors with built-in Radeon™ graphics) or PCIe 3.0 x2 (using Athlon™ processing with built-in Radeon™ graphics) SATA 6Gb/s 2242/ 2260/2280 Specifications
PCI_E4 will not work when M.2 SSD is installed in M2_2
RAID
AMD® B450 Chipset
Support RAID 0, RAID 1 and RAID 10 (SATA)
Support RAID 0, RAID 1 (M.2 NVMe)
USB
AMD® B450 Chipset
1 x USB 3.2 Gen2 (10Gbps) Type-C on the back
1 x USB 3.2 Gen2 (10Gbps) Type-A on the back
2 x USB 3.2 Gen1 via internal USB 3.2 Gen1 connector
6 x USB 2.0 (2 Type-A on back, 4 via internal USB 2.0 connectors)
AMD® processors
4 x USB 3.2 Gen1 Type-A on the back
Audio
Realtek® ALC892/ALC897 Codec
7.1 channel HD audio
Support S/PDIF output
The internet
1 x Realtek® RTL8111H-CG Gigabit LAN
Internal interface
1 x 24-pin ATX power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s
1 x USB 3.1 Gen1 port (supports additional 2 USB 3.1 Gen1)
2 x USB 2.0 ports (supports additional 4 x 4 USB 2.0)
1 x 4-pin CPU fan header
3 x 4-pin system fan headers
2 x 5050 12V RGB lighting ports
1 x TPM module interface
1 x Front Audio Interface
2 x System Panel Connectors
1 x Chassis Intrusion Connector
1 x Clear CMOS Jumper
1 x Serial Interface
1 x Parallel Interface
Rear interface
BIOS write back key
PS/2 interface
DP
Network Interface
USB 3.2 Gen2 Type A
audio port
USB 2.0
HDMI
USB 3.2 Gen1
USB 3.2 Gen2 Type C
S/PDIF output
Form Factor
m-ATX ; 24.4 cm x 24.4 cm
Screw hole
8 holes
