Dear Buyers:
Welcome to our store.Before shipping, we'll test and examine all the items,ensure there is no defects or DOA.
We'll put the item into an Anti-electrostatic plastic bag, then put it into a safe package to avoid being injured by shipping.Warranty:
Our item warranty 90 days, the following reason we don't accept returns:
A. Wrong order.
B. The item didn't buy from us.
C. Damage the item on purpose.Kindly Tips:
A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.Packet Contained:
1 x motherboard
2 x SATA II cables
1 x I/O shield

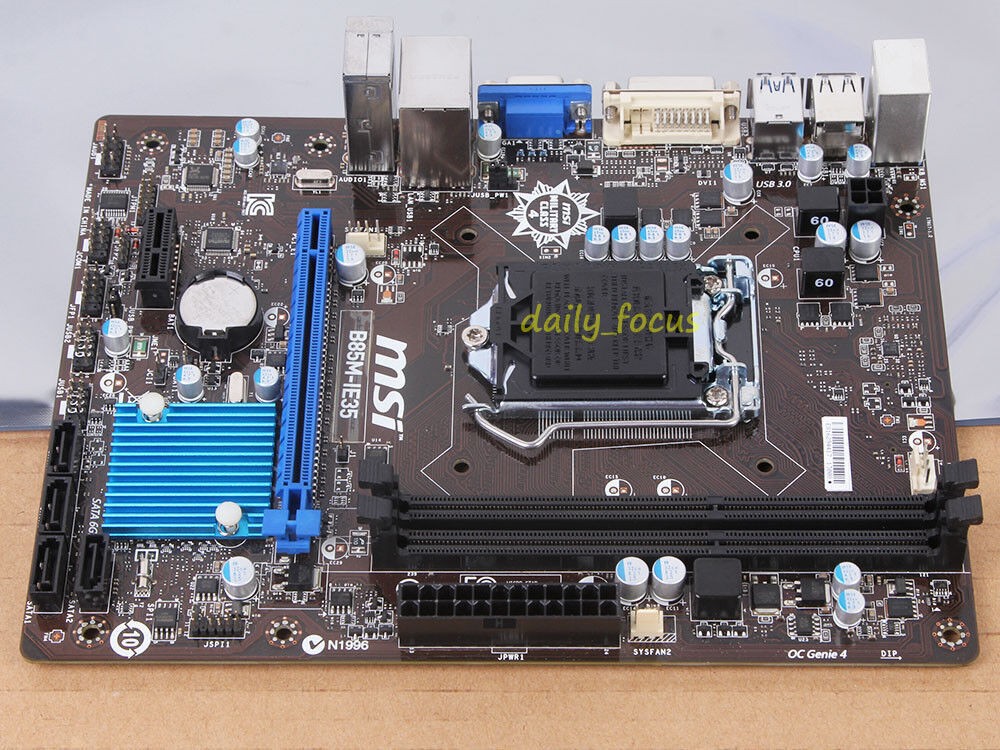

Parts Specification:

CPU

• Supports 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel®B85 ExpressChipset

Main Memory

• Support two DDR3 DIMMs 1066/1333/1600 DRAM, 16GB Max
• Support Dual-Channel mode
• Supports non-ECC, un-buffered memory

Slot

• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 2.0 x1 slots

On-Board SATA

• SATAIII controller integrated in Intel® B85chipset
- Up to 6Gb/s transfer speed.
- Supportstwo SATAIII ports (SATA1~2) byB85
• SATAII controller integrated in Intel®B85chipset
- Up to 3Gb/s transfer speed.
- Supportstwo SATAII ports (SATA3~4) byB85

USB

• Intel® B85 Express Chipset
- 2 x USB 3.0 ports (2 ports on the back panel)
- 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Chipset integrated by Realtek® ALC887

LAN

• Supportsone PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G Gigabit LAN controller

Internal I/O Connectors

- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
-2 x SATAIII connectors
-2 x SATAII connectors
- 2 x USB 2.0 connectors
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 1 x Chassis Intrusion connector
- 1 x Trusted Platform Module (TPM) header

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
-4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x LAN (RJ45) port
- 3 x audio jacks
- 1 x VGA port, supporting a maximum resolution of 1920x1200 at 60Hz, 24bpp
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60Hz, 24bpp

BIOS

• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

Dimension

• 22.6cm(L) x 17.3cm(W)Micro-ATX Form Factor

Mounting

• 6 mounting holes.

Shipping:
CountryAgentEstimate timeUSAExpedited Shipping3-5 business Shipping3-6 business daysUK,Germany,FranceExpedited Shipping4-6 business daysOther EuropeCountryExpedited Shipping5-8 business daysOther CountryExpedited Shipping6-10 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
