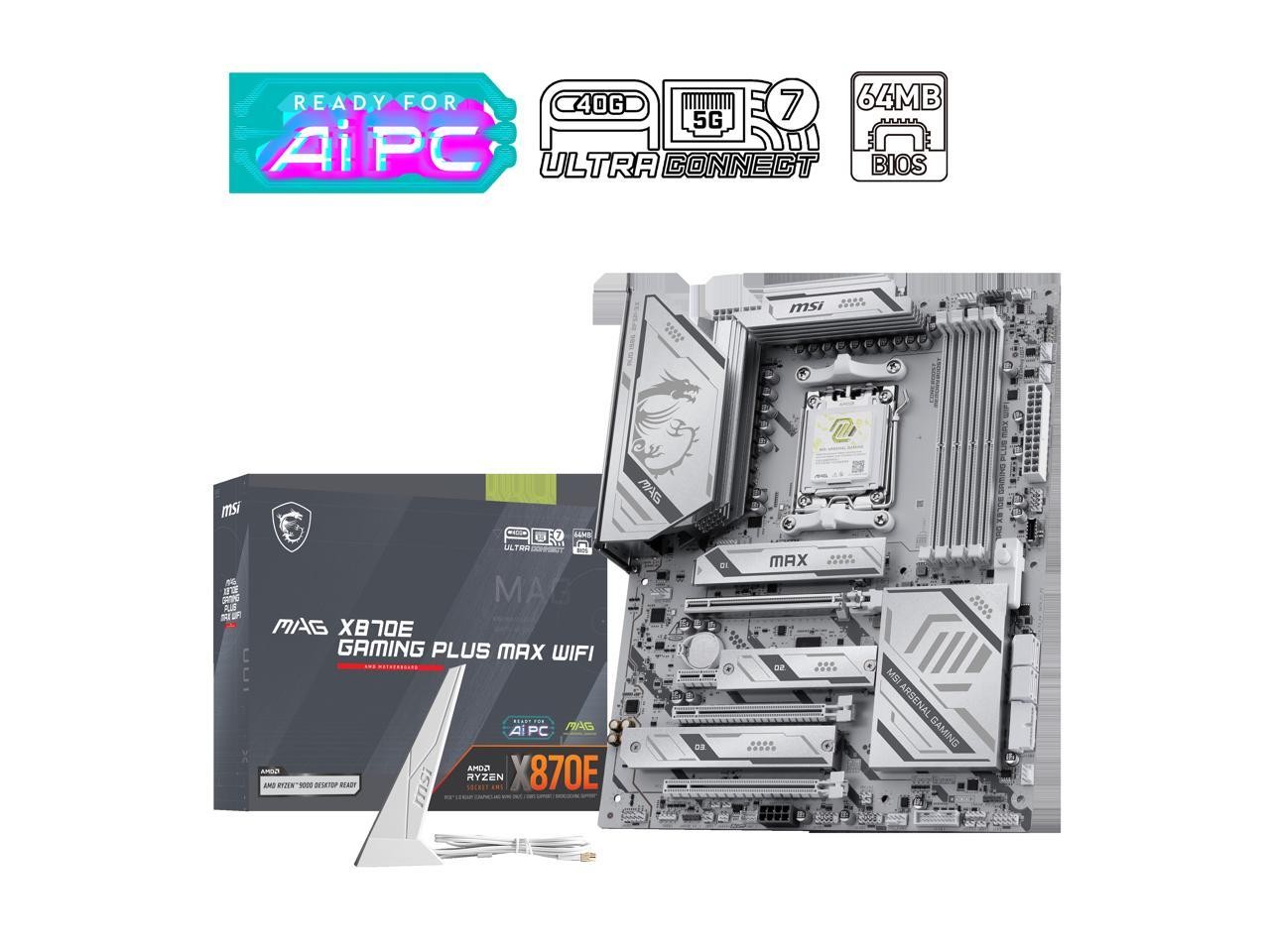

Learn more about MSI MAG X870E GAMING PLUS MAX WIFIModelBrandMSIModelMAG X870E GAMING PLUS MAX WIFIPart NumberMAG X870E GAMING PLUS MAX WIFISupported CPUCPU Socket TypeAM5CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop ProcessorsChipsetsChipsetAMD X870EMemoryNumber of Memory Slots4x DDR5 UDIMMMemory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/sSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
The DIMM slots on this motherboard have single-sided latches.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’sMaximum Memory Supported256GBChannel SupportedDual ChannelECC SupportedNon-ECCBuffer SupportedUn-bufferedExpansion SlotsPCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)PCI Express x162 x PCI Express x16PCI Express x11 x PCI Express x1Storage DevicesSerial ATA (SATA)4x SATA 6GM.23 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_1 slot (From CPU)
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)M.2_2 slot (From CPU)
Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)M.2_3 slot (From CPU)
Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)Onboard AudioAudio ChipsetRealtek ALC897Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek 8126VBMax LAN Speed5GbpsBluetoothYesRear Panel PortsBack I/O Ports4 x USB 2.02 x USB 5Gbps Type A2 x USB 10Gbps Type A1 x USB 20Gbps Type C1 x USB 40Gbps Type C1 x HDMIHDMI1 x HDMIDisplayPort1 x DisplayPortInternal I/O ConnectorsOnboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 6 x USB 2.0Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x Direct OC Jumper (JBCLK)Physical SpecForm FactorATXLED LightingNone RGBDimensions (W x L)243.84mm x 304.8mmSoftware FeatureWindows 11SupportedFeaturesFeatures4x EZ Debug LED
