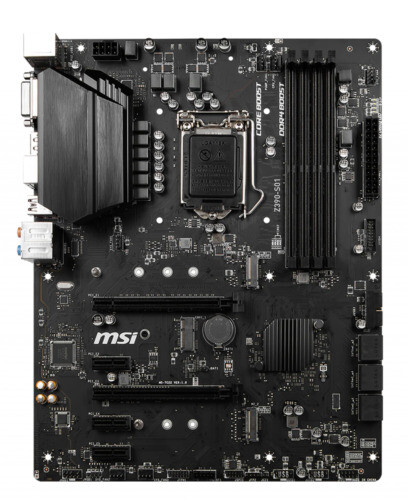

MSI Z390-S01 Motherboard Intel Z390 LGA 1151 DDR4 M.2 ATX DVI-I USB 3.1 PS/2

CPU

Supports 9th generation Intel® Core™, Pentium® and Celeron® processors with LGA1151 Z390 chipset

RAM

4 DDR4 memory slots, up to a total capacity of 128GB1

Support DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC) )/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz1

Dual channel memory architecture

Support non-ECC, unbuffered memory

Support Intel® Extreme Memory Profile (XMP)

Expansion slot

2 PCIe 3.0 x16 slots

3 PCIe 3.0 x1 slots

1 M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only

Onboard display output

1 DVI-I interface, supporting the highest resolution 1920x1200@60Hz

1 DisplayPort interface, supporting the highest resolution multiple graphics cards

Support 2-Way AMD® CrossFire™ Z390 chipset

6 SATA 6Gb/s slots1

2 M.2 slots (M key)

Supports storage devices up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110

Intel® Optane™ Technology 2

The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot. When installing M2.SATA/PCIE device into M2_2 interface, SATA5 and SATA6 will be Z390 chipset

Provides SATA storage devices supporting RAID 0, RAID1, RAID 5 and RAID 10

USB

Intel® Z390 chipset

2 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)

8 USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports are located on the back panel, 4 are provided through the onboard USB 3.1 ports)

4 USB 2.0 (High-speed USB) ports (4 provided via onboard ports)1

The CNVI_1 and JUSB2 share the same bandwidth. Please refer to page 32 for details.

Sound effect

Realtek® ALC892 decoder chip

7.1 channel high-quality sound

The internet

1 Realtek® Gigabit LAN

Built-in interface

1 x 24-pin ATX main power connector

1 8-pin ATX 12V power connector

6 SATA 6Gb/s ports

3 M.2 slots (2 M-Key slots, 1 E-Key slot)

1 CNVi interface

2 x USB 3.1 Gen1 ports (support additional 4 USB 3.1 Gen1 ports)

2 USB 2.0 ports (support additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water cooling port

4 x 4-pin system fan connectors

1 panel audio interface

2 system panel interfaces

1 chassis opening interface

1 x 4-pin RGB LED interface

1 jumper for clearing CMOS function

1 TPM module interface

1 thunderbolt expansion card interface

Backplane interface

PS/2 Combo

USB 3.1 Gen1 Type 3.1 Gen1 Type A

USB 3.1 Gen2 Type A

USB 3.1 Gen2 Type C

HD audio interface

Optical S/PDIF output interface

Standard sizes

ATX;12 x 9.6 inches (30.5 x 24.4 cm)
