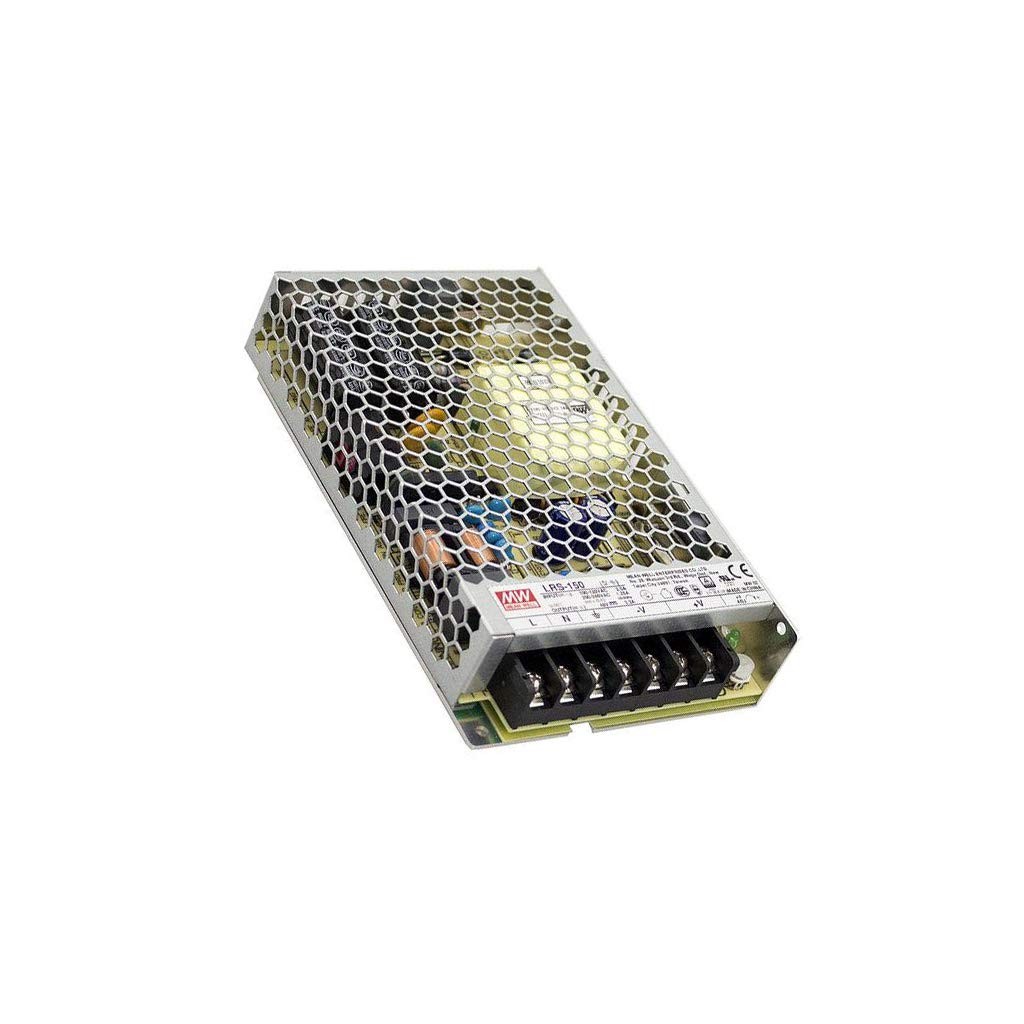

Your electronic devices will need this LRS-150-12 AC to DC power supply from to convert alternating currents into useful direct currents to operate.
It has a voltage of 12 V and maximum output power of 150 W.
This part's single output can handle a current up to 12.5 A.
This part has a temperature range of -30 °C to 70 °C.
EU RoHS: Compliant
ECCN (US): EAR99
Package Height: 30mm
Package Width: 97mm
Package Length: 159mm
Mounting: Screw
PCB changed: 7
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 12
Output Current (A): 12.5
Output Power (W): 150
Minimum AC Input Voltage (V): 85
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3750VAC
Line Regulation: 0.5%
Load Regulation: 0.5%
Maximum Input Current (A): 2.8(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 87.5(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV(Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 480
Pin Count: 7
You could go to company website,
click "Service" and choose "Quality Control Inspection Report",
input S/N number to get the test report and lot information.
About the quotation for batch order, please contact with the seller directly.
Primary Output Voltage (VDC): 12; Output Current (Amps): 12.5; Maximum Output Power (Watts): 150
Input Voltage (VAC): 85 ~ 132VAC / 170 ~ 264VAC by switch
Protections: Short circuit / Overload / Over Voltage / Over Temperature
High Operating Temperature up to 70℃
High Efficiency up to 87.5%
