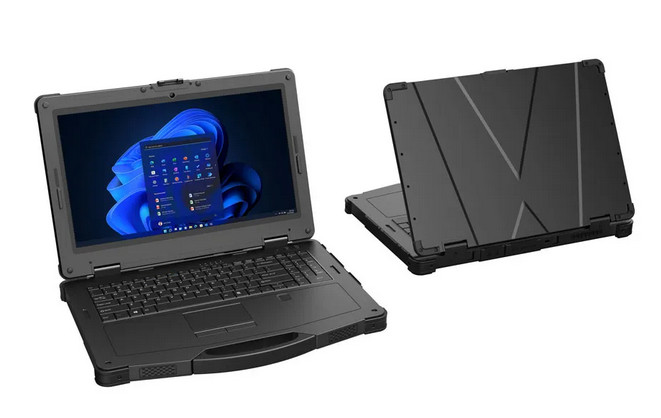

Unit is new open box item. Took it to my local pc shop to have complete diagnostics done. Everything is in excellent working condition. Physically has no imperfections. Product Form15.6 inch Full-rugged ColorBlack
CPU11th Generation Intel Tiger Lake UP3 -28W i5-1135G7 Processor 4-core 8-thread, 10nm process (base frequency 2.40GHz, maximum frequency 4.2 GHz)
Optional I7-1165G7 (base frequency 2.80 GHz, maximum frequency 4.7 GHz)GPUGen 12 Intel® Iris® Xe Graphics, up to 96EU 16GBOptional: 512GB/1TBMechanical Hard DiskOptional: HDDTPMBuilt-in, TPM2.0 SLB9670VQ2.0Operating SystemWindows 11 Pro
Optional:
Windows 11 Pro
Windows 11 Home
DisplayType: FHD
Size: 15.6 inch 16:9
Resolution: 1920*1080
Brightness: 700cd/㎡Touch *1
Reset *1 (Pinhole key, One button reset)
P Key *1 (One button off screen or on)
Speaker8Ω/1W *2MicrophoneInternal Digital MIC *2Battery (Built-in)Build in Lithium-ion polymer battery
7.4V/1750mAh
0.5hours ( 50% volume sounds, 200 nits brightness, 720P HD video display by default )Battery (Hot Swap)Removable Lithium-ion polymer battery
7.4V/6300mAh
7hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )
WIFIWIFI 6 (BLE) class1 Transmited distance：10m2G/3G/4GOptional, M.2
LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8
GSM: 900/18005GOptional, M.2
5G x 2 NEO-7 support satellite: GPS, Capture sensitivity: – 160 dBm, Cold start time: <50 seconds, hot start time: <28 seconds, frequency: 0.25 Hz, 10 MHz (configurable)Optional, GPS+Beidou, U-blox NE0-M8N-0
NFCOptional, NXP300FingerprintBuilt-in, SPI fingerprint (boot login) *1
I/O
USB 2.0 *1USB 3.0 *3∮3.5mm standard earphone jack *1HDMI *1（type-A）SD Card *1SIM Card *1DC 19V 3.42A Power connector *1DB9 (RS232) *1RJ45 (10/100/1000Mbps) *25PIN Pogo Pin *1 (USB interface definition)Anti theft lock hole *1Heat dissipation air outlet (right) *1Left docking station, optional custom adapter PCIE X4 slot or HDD *1
Power Indicator*1 The power on light is always blue, and the power off light is offBaterry Indicator*1 (Red and green) Charging red, full of green, low battery red light flashing, discharge does not lightHDD LED*1Case Key Lock*13G/4G IndicatorWhen 3G/4G is turned on, the light turns blue, and when 3G/4G is turned off, the light turns off
AdapterAC100V~240V, Output 19V3.42A/65W has passed CE certification
Optional: EU, US
Rugged FeaturesMIL-STD-810G: 1.22m dropWorking temperature: -20 °C to 60 °CStorage temperature: -30 °C to 70 °CHumidity: 95% Non-Condensing
CertificationIP65CE, RoHS, CCC,Optional FCCMIL-STD-810G
Any question？ Please contact us, we will help you find the best solution for your specific environment and requirements.
