NEW Delta Rackmount Server Redundant power supply 2x DPS-300AB-1 B REV: 00 RPS
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

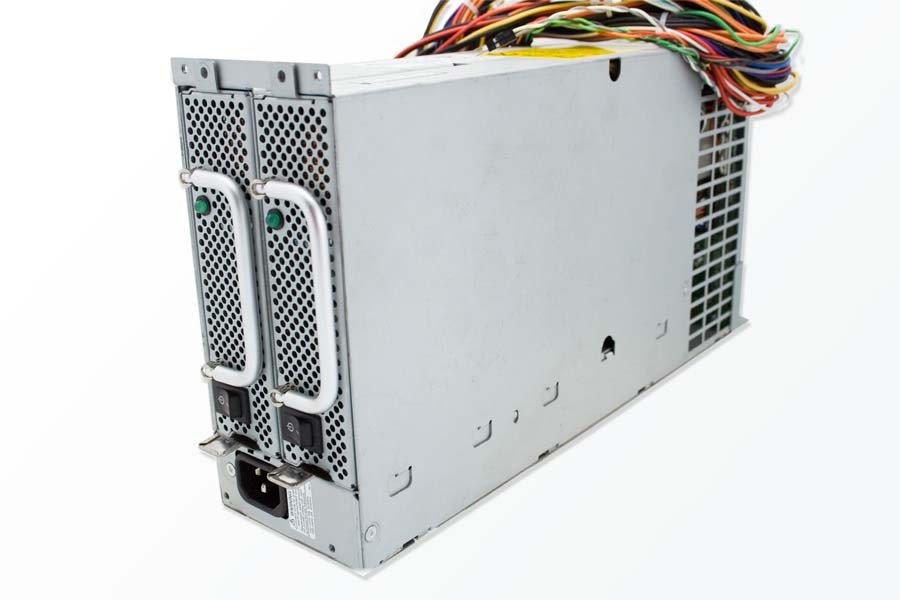

NEW Delta Rackmount Server Redundant power supply 2x DPS-300AB-1 B REV: 00 RPS
Price: US $48.00
Recyle_ITWe are closed on Saturday and Sunday.seller since Feb-17-1998 BRAND NEW ENLIGHT EN-8309964 2X 300W Redundant Power Supply for 5U Rack Mount Chassis

Come with 11x Peripheral Power Connectors (Molex 4pin)




Enlight Item# 83099C4A1

Redundant Power Supply Made by Delta Electronics, Inc Model: RPS-600-1 A REV:00

Original power supply for Enlight EN-8950 server case

Includes 2pcs Delta Electronic 300 Watts Power Supply Module Model# DPS-300AB-1 B REV: 00




SPECIFICATIONS

  • Dimensions: 13" x 7" x 3"

  • Input range: 100-240VAC auto range , single phase

  • Frequency: 47-63Hz

  • Input current: 7A max. @115VAC, 3.5A max. @230VAC, full load

  • Inrush current; not exceed 60 amps peak at 100 vrms input voltage, measured at cold start

  • Efficiency: 63% min, at low line 110/220 VAC full load

  • EMI/EMC: FCC Part 15J Class B, CISPR22/EMC directive 89/336

  • Maximum power: 300 W Max

  • Output: 5V @ 31A, 12V @ 8A, 3.3V @ 12V, -5V @ 0.3A, -12V @ 0.4A, +5VSB @ 0.8A

  • Hold-up time: 16ms min, at maximum o-p (300w) 100v, 50Hz

  • O/P rise time: less than 100 ms (10% ~ 90% of 0/p Voltage)

  • Short circuit protection: all outputs short to ground should not damage the power supply

  • Over current protection: Single power supply operation

  • Leakage current: 0.75mA at 100 Vac/60Hz

  • Power good: the unit has an active high TTL compatible signal capable of sinking 5mA and sourcing 200 uA. This signal becomes active within 100

  • ~ 500 ms from +5V output reaching steady state. It become inactive at least 1 ms before +5V drop below 4.75V

  • Operation n temperature: 5-40C

  • Storage temperature: -20-60C

  • Humidity: 5-95% RH

Bonus: 4pcs new factory sealed SATA III 6Gb/s data 1x 20pin ATX

1x 6pin AUX connector

1x 4pin P4 connector

11x 4pin Molex connector

2x 4pin Berg connector (floppy)

1x 10pin

1x special 2pin connector

1x special 6pin style="font-family: Arial; font-size: large;">


Many sellers are notestablished business, if realcompanies at Options Available - click on "Shipping and payments" tab in thelisting to see. We recommend buyers to take advantage of these choicesat very nominal extra cost:Fedex Ground upgrade:Your package is always insured.
(We reserve the right to shipeither UPS or Fedex)
USPS Priority Mail upgrade: Normally faster and deliver on Saturday, too.
  • Our business day cut-off time is noon PacificTime. We do not ship orders out the same businessday. Orders are normally shipped out in 1 to 2 businessdays We ship daily except UPS & national holidays.
  • Wereserve therightto upgradeshippingmethod fromUSPS (or UPS)to Fedex --you getbettertrackingdetails and/orinsurancecoverage.
  • Hawaii,Alaska,APO/FPO/POBOX, and PRcustomers --We can ship byUSPS only
InternationalImport Taxes& Duties:Manycountries havea Value AddedSales Tax VAT,which ischarged byyour carrierwhen an itemcrosses intotheirborder.VAT is chargedin addition toapplicableduties. It'sthebuyer'sresponsibilityto know howmuch tax andduties will becharged.Wewillnot declareyour purchaseas agift.
CompanyEstablishedfor over 30years (since1988)Selling on Me pagefor morepolicy details.
