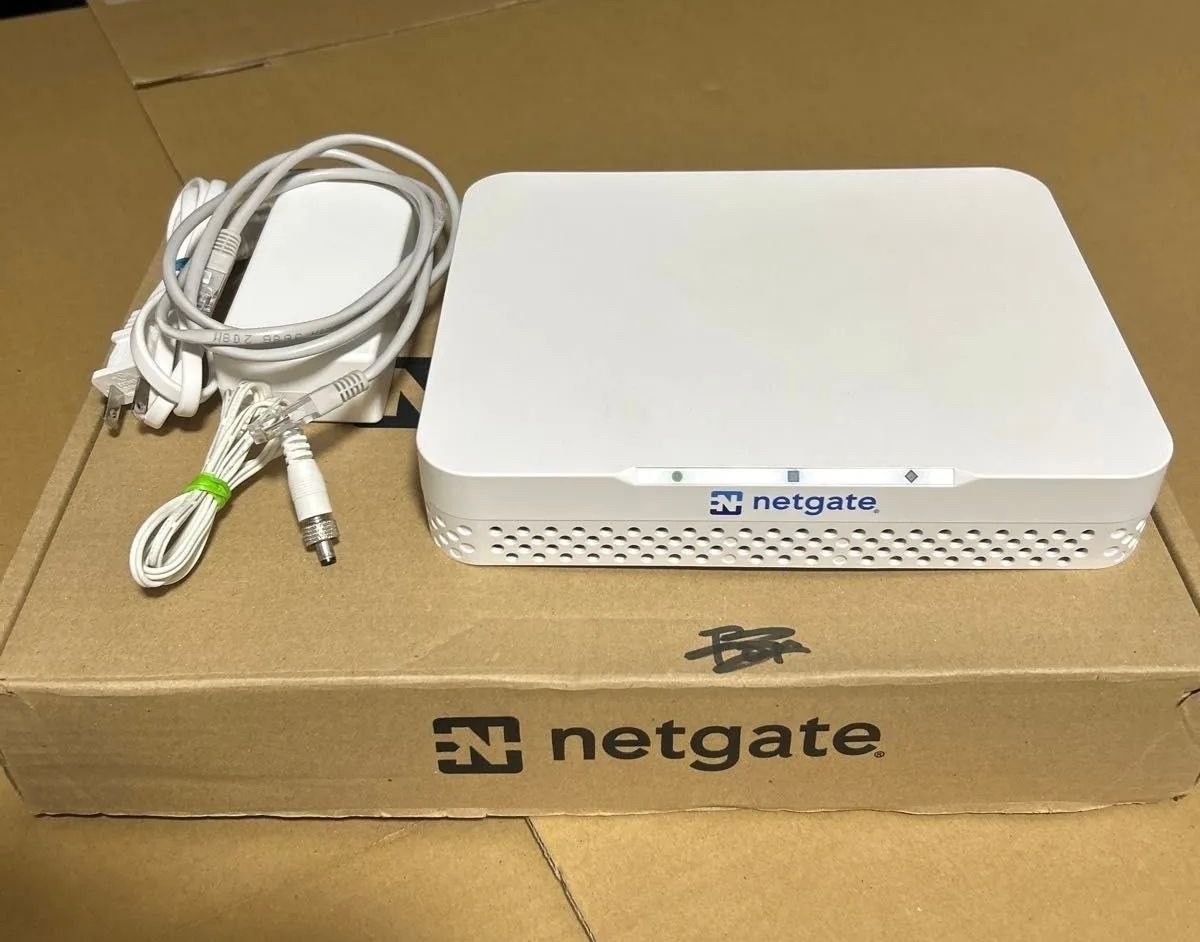

Netgate 6100 MAX pfSense+ Security Gateway
Max version, with 8GB RAM and 128GB SSD
Description
The Netgate® 6100 with pfSense® Plus software is one of the most versatile security gateways in its class. It combines the power of an Intel C3558 Quad Core CPU with integrated (QAT) QuickAssist Technology & AES-NI and 8 GB of memory for a snappy user experience, delivering over 18 Gbps of L3 routing across 8 independent 1 GbE, 2.5 GbE, and 10 GbE Flexible WAN/LAN ports. The 6100 is capable of performing high-throughput firewall, routing, and VPN applications. Despite its powerful performance the 6100 operates in complete silence with a passive cooling system and is ideal for pro-home, small/medium businesses, or edge deployments.
The Netgate 6100 is an ideal edge gateway solution for any organization in need of versatile network connectivity with 1 to 10 Gbps flexible WAN/LAN connections and 8 GB of DDR4 memory to deliver exceptional throughput performance.
L3 Forwarding
IPERF3 Traffic: 18.50 GbpsIMIX Traffic: 6.08 GbpsFirewall
(10k ACLs)
IPERF3 Traffic: 9.93 GbpsIMIX Traffic: 2.73 GbpsIPsec VPN
(AES-GCM-128 w/QAT)
IPERF3 Traffic: 1.77 GbpsIMIX Traffic: 552 MbpsNetgate 6100 performance tests conducted with pfSense Plus software version 22.01The Netgate 6100 will also be compatible with TNSR software. TNSR is a high-performance software router capable of producing considerable performance increases far beyond the limits of pfSense Plus software.
CPU: Quad-Core 2.2 GHz Intel Atom CPU, with integrated AES-NI and QAT (QuickAssist Technology) significantly improves encrypted throughput and increases RAM performance by up to 50%.
Network Ports: (2) 10 GbE SFP+ Ports, (2) 1 GbE Combo Ports (RJ45/SFP), and (4) discrete, unswitched 2.5 Gbps Ports allow for versatile WAN connectivity.
Storage: 16 GB eMMC + 128 GB NVMe M.2 SSD
Memory: 8 GB DDR4 RAM, DDR4 memory allows more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).
Cooling: The passive cooling system and low power draw of the Netgate 6100 provides efficient thermal management and silent operation expected from smaller devices despite its significantly higher from Japan.

Yamato Transport International only.

Tracking number provided.

Any applicable import duties and taxes are the buyer's responsibility.
