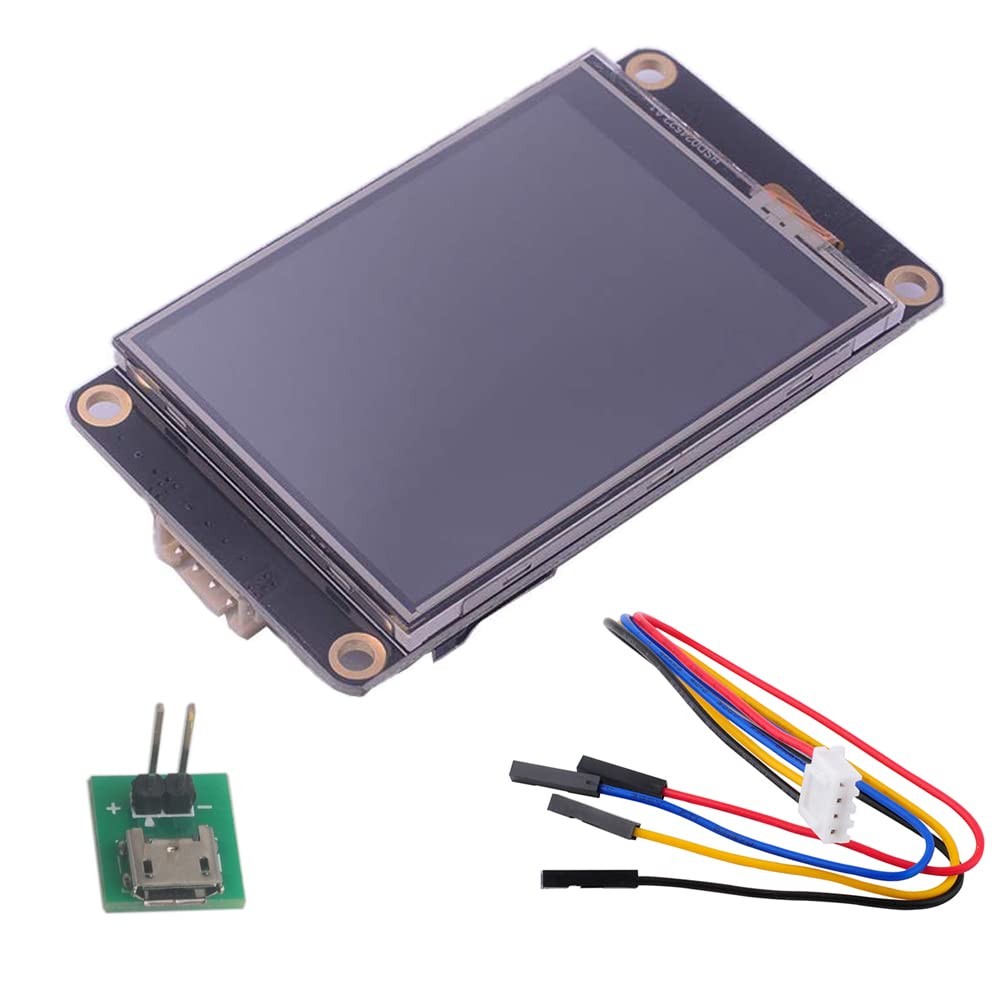

Nextion Enhanced 2.4 inch HMI Display Resistive Touch Screen 5V TFT LCD 320x240 for Arduino ESP32 Board (NX3224K024)🔍 Product Overview
Descriptoin:
The Nextion Enhanced versions are more powerful. Compare to the basic Nextion displays, the new ones have added some new functions: support support save data to Flash, support GPIO, larger flash capacity and larger CPU clock. Features
Support GPIO
SD Card interface: support max 32G Micro TF/SD card (FAT32 format)
Flash data storage space: 16MB
EEPROM: 1024 byte
RAM: 3584 byte
Instruction buffer: 1024 byte
Color：65K (65536) colors
Resolution：320×240 pixel
Adjustable Brightness:0~180 nit, the interval of adjustment is 1% Specification
Visual Area:48.96mm(L)×36.72mm(W)
Layout size：74.4(L)×42.72(W)×5.8(H)
Touch type: Resistive
Backlight：LED
Backlight (Average): >30,000 Hours
Recommended power supply: 5V 500mA DC Package includes
1 x Nextion NX3224K024
1 x micro USB to 2pin male board
1 x 4pin 2.54mm to female cable
⭐ Key Features
- -Nextion NX3224K024 enhanced display is widely used in beauty equipment, smart home devices, household appliances, 3D printer, instrumentation etc.
- -Compared with NX3224T024, NX3224K024 add new functions: support save data to Flash, GPIO, larger flash capacity and faster CPU.
- -Nextion enhanced 2.4 display is a 5V device, but many development boards are 3.3V. It won't make the display power up.
- -To ensure Nextion 2.4 enhanced display work as expected, it's recommended to supply power via power adapter, not usb to ttl or boards.
- -Uploading TFT file via sd card is faster than the usb to ttl, but pls ensure card: FAT32 format, only one tft file(no folder), and no more than 32GB.
