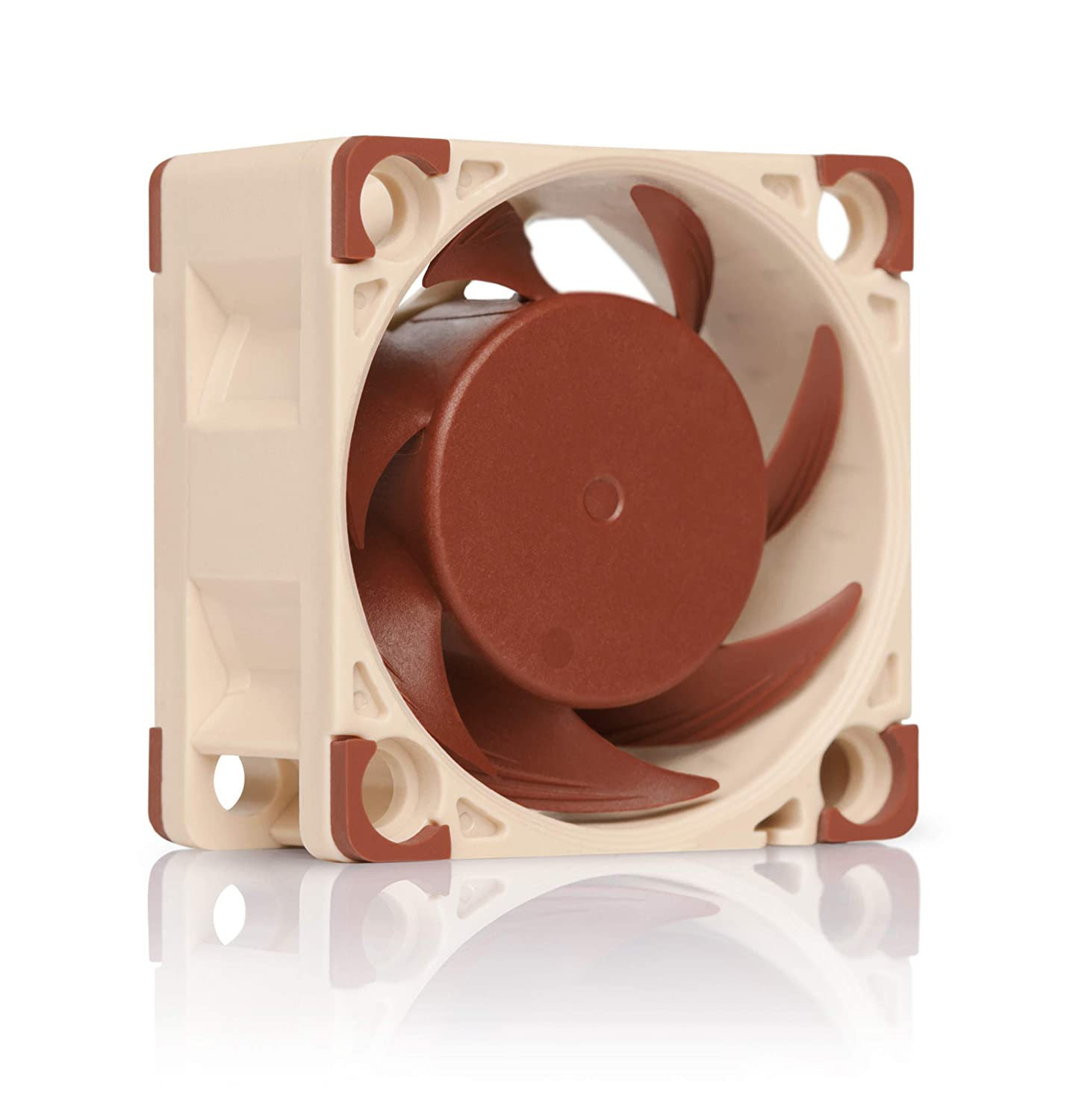

Nf-A4X20 5V, High-Performance Quiet Fan 40Mm
Product description
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x20 5V is a dedicated 5V version of Noctua’s highly optimised, premium quality quiet 40x20mm fan. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearings ensure superb running smoothness and excellent long-term stability. Topped off with modular cabling and the OmniJoin Adaptor Set, the NF-A4x20 5V is a premium choice for demanding 5V applications.
5V version
Many devices such as network or storage solutions use 5-volt 40mm fans. With the same operating voltage and the included OmniJoin Adaptor Set that makes it compatible with proprietary fan headers, the NF-A4x20 5V is ideal for replacing noisy or broken 5V 40mm fans.
Please note: Being a 5V fan, the NF-A4x20 5V cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
Flow Acceleration Channels
The NF-A4x20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
SSO2 Bearing
The NF-A4x20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
Scope of delivery
- NA-EC2 30cm extension cable
- OmniJoin adaptor set
- 4x NA-AV3 anti-vibration mounts
- Fan screws
Please Note:
Being a 5V fan, the NF-A4x20 5V cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.8 out of 5 stars 2,089 4.8 out of 5 stars 2,524 4.8 out of 5 stars 972 4.8 out of 5 stars 396 Price $15.95$15.95 $15.95$15.95 $15.95$15.95 $15.95$15.95 Connector 4-pin PWM 3-pin 4-pin PWM 3-pin Voltage 12V 12V 5V 5V RPM Max: 5000 / Min: 1200 5000 Max: 5000 / Min: 1100 5000 RPM with L.N.A. 4400 4400 - no data - no data RPM with U.L.N.A. - no data 3700 - no data - no data Acoustical Noise 14,9 dB(A) 14,9 dB(A) 14,9 dB(A) 14,9 dB(A) Acoustical Noise with L.N.A. 12,2 dB(A) 12,2 dB(A) - no data - no data Acoustical Noise with U.L.N.A. - no data 8,5 dB(A) - no data - no data Size 40x40x20 mm 40x40x20 mm 40x40x20 mm 40x40x20 mm Colour Brown & Beige Brown & Beige Brown & Beige Brown & Beige
- Premium quiet fan, 40x40x20 mm, 5V, 3-pin Molex, 5000 RPM, 14.9 dB(A), >150,000 h MTTF
- Award-winning A-series design with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
- 40x20mm size ideal for 1U applications or replacing fans in network and storage equipment (routers, switches, NAS etc.) or other devices such as DVRs
- 5V 3-pin version (5000rpm) for 5V-based industrial applications or replacing 5V fans in various devices
- Includes anti-vibration mounts, fan screws, extension cable and OmniJoin adaptor set for connecting the fan to proprietary fan headers
Item Specification
- Power Connector Type 3-Pin Voltage 5 volts Cooling Method Air Compatible Devices Desktop Noise Level 14.9 db Maximum Rotational Speed 5000 rpm Item Dimensions L x W x H 1.57"L x 1.57"W x 0.79"H Material Type Fibre-glass reinforced PBT Item Highlight function(f) {var { function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); High Airflow Low Noise, 5V, 20mm Thick Fan, for Ventilation and Electronics Cooling, With OmniJoin Adaptor, 5000rpm 3-Pin See more Warranty Description 6 year manufacturer’s warranty Number of Packs 1 Number of Items 1 Unit Count 1 Count Model NF-A4x20 5V Part Number NF-A4x20 5V Product Dimensions 1.57"L x 1.57"W x 0.79"H Material Fibre-glass reinforced PBT
