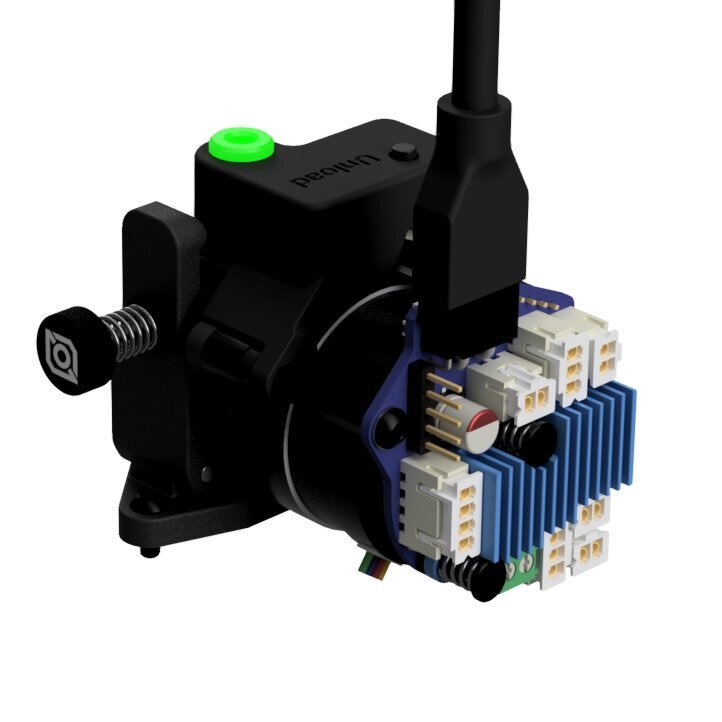

Orbitool Toolhead PCB Board for Orbiter 2 (O2) and Smart Orbiter 3 (SO3) by LDO MotorsYou asked, and it's here! A PCB optimized for Orbiter featuring the orbiter sensor, accelerometer for input shaping, a TMC2209 stepper driver all with USB communication - it's kind of nice. Should a tool-board magic smoke come out because of user error? Why? Should a tool-board be destroyed by a fault in your 3D printer? Why? The answer is NO! And this is what this tool-board is all about! We are hobbyists, and let’s face it, we do mistakes, and when the magic smoke shows up everybody is disappointed, even if we know it’s a user fault. In this board, I promise you the magic smoke is kept inside extremely tight! Some of the main features: • Optimized for Orbiter v2 and SO3 shape and features including orbiter sensor • STM32F042 microcontroller running on 48MHz • Automotive USB communication with Raspberry PI • Onboard LIS2DW12 accelerometer • TMC2209 extruder stepper driver • Direct connection to Orbiter v2 sensor • PWM controlled fan outputs • DC-DC converter based Hot-end fan driver, compatible with 12/24V fan types with RPM speed input signal • Hot-end temperature sensor input compatible with standard NTC or PT1000 temperature sensor types • I/O for bed level sensing • X-Stop sensor input • RGB LED driver output • Onboard temperature sensor • Advanced thermal management system Manual for Orbiter 2 Manual for Smart Orbiter 3 Orbitool Toolhead PCB Board for Orbiter 2 (O2) and Smart Orbiter 3 (SO3) by LDO Motors
You asked, and it's here! A PCB optimized for Orbiter featuring the orbiter sensor, accelerometer for input shaping, a TMC2209 stepper driver all with USB communication - it's kind of nice.
Should a tool-board magic smoke come out because of user error? Why?
Should a tool-board be destroyed by a fault in your 3D printer? Why?
The answer is NO! And this is what this tool-board is all about!
We are hobbyists, and let’s face it, we do mistakes, and when the magic smoke shows up everybody is disappointed, even if we know it’s a user fault. In this board, I promise you the magic smoke is kept inside extremely tight!
Some of the main features:
• Optimized for Orbiter v2 and SO3 shape and features including orbiter sensor
• STM32F042 microcontroller running on 48MHz
• Automotive USB communication with Raspberry PI
• Onboard LIS2DW12 accelerometer
• TMC2209 extruder stepper driver
• Direct connection to Orbiter v2 sensor
• PWM controlled fan outputs
• DC-DC converter based Hot-end fan driver, compatible with 12/24V fan types with RPM speed input signal
• Hot-end temperature sensor input compatible with standard NTC or PT1000 temperature sensor types
• I/O for bed level sensing
• X-Stop sensor input
• RGB LED driver output
• Onboard temperature sensor
• Advanced thermal management system
Manual for Orbiter 2
Manual for Smart Orbiter 3
× × × ×
