Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O pannel

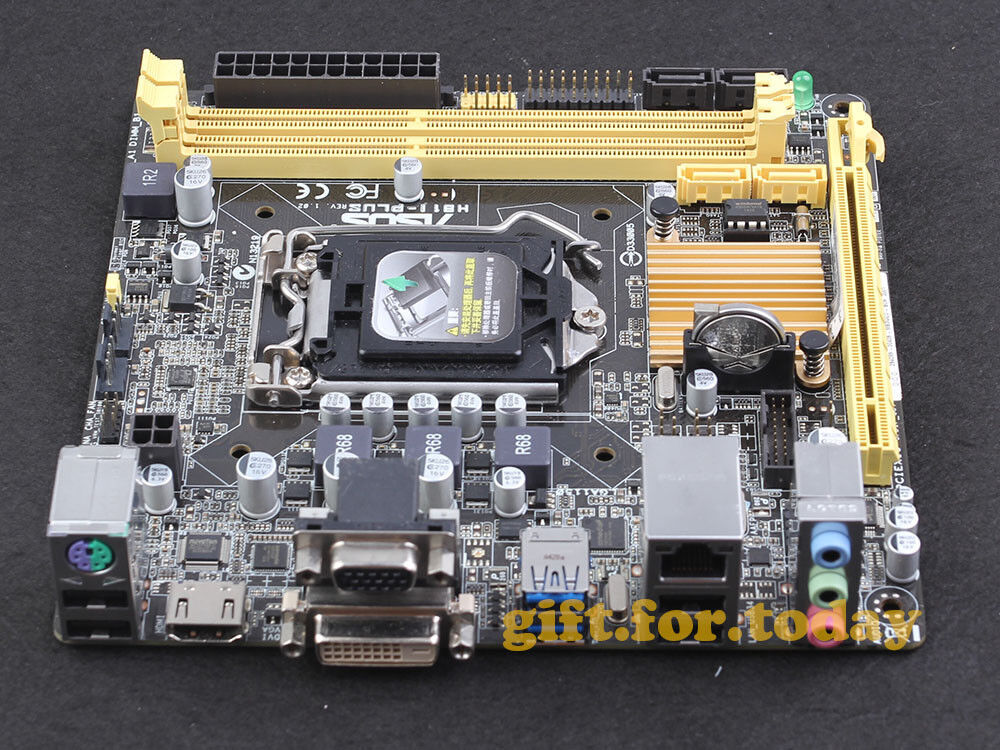

ASUS H81I-PLUS Motherboard Introduction

CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list

Chipset

Intel® H81

Memory

2 x U-DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Graphic

Integrated Graphics Processor
- Supports HDMI with max. resolution 4096 x 2304 at 24 Hz / 2560 x 1600 at 60 Hz
- Supports DVI with max. resolution 1920 x 1200 at 60 Hz
- Supports RGB with max. resolution 1920 x 1200 at 60 Hz
Maximum shared memory of 1024 MB

Expansion Slots

1 x PCIe 2.0 x16

Storage

Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

LAN

Realtek® RTL8111G, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2

USB Ports

Intel® H81 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® H81 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)

Special Features

ASUS EPU :
- EPU
ASUS Digital Power Design :
- ASUS DIGI+ VRM Utility
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
100% All High-quality Conductive Polymer Capacitors

Operating System Support

Windows® 8 86x64
Windows® 7 86x64

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

BIOS

64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a

Manageability

WOL by PME, PXE

Form Factor

Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Note

*1-1:Due to the limitation of the Intel® H81chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.
*1-2:These functions will work depending on the CPU installed.
*2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

• Supports 4th and 5th Generation Intel® Core™ processors
• Creative SoundBlaster X-Fi MB3 gaming audio suite
• Audio Noise Guard with LED path lighting
• Gold plated display and audio ports
• High end Nichicon audio capacitors
• Realtek ALC1150 115dB SNR HD Audio with Built-in rear audio amplifier
• Killer™ E2200 gaming networking platform
• Extreme multi graphics support
• SATA Express support for 10 Gb/s data transfer
• M.2 for SSDs drives with up to 10 Gb/s data transfer
• Long lifespan Durable Black Solid caps
• APP Center including EasyTune™ and Cloud Station™ utilities
• GIGABYTE UEFI DualBIOS™
