Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O pannel

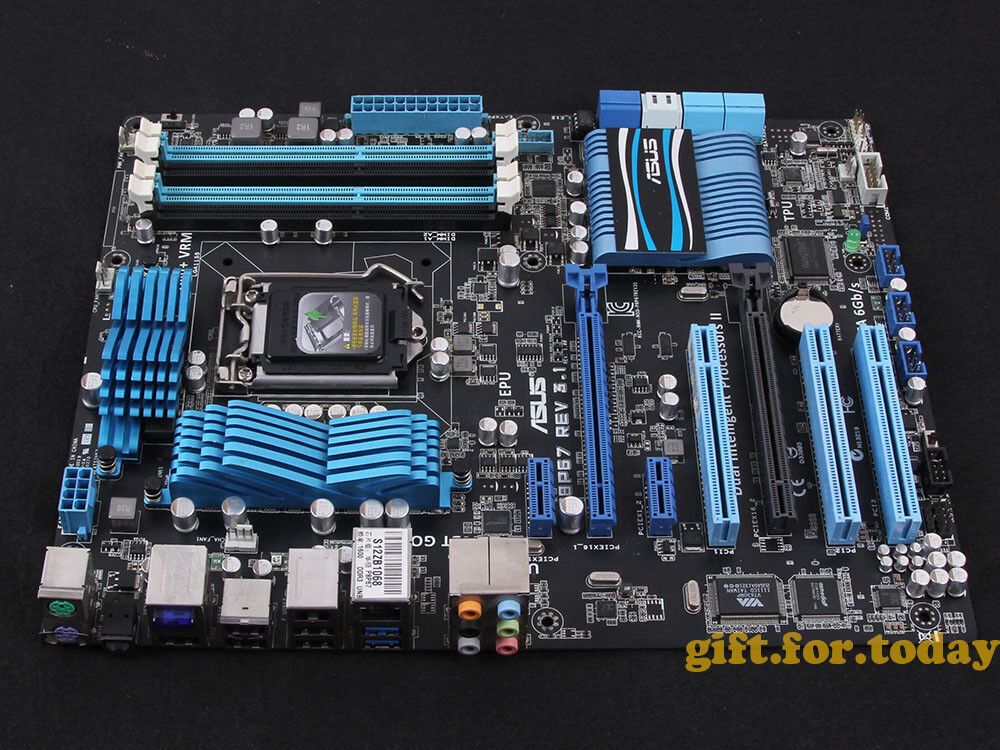

ASUS P8P67 V3.1 Motherboard Introduction

CPU

Intel® Socket 1155 The 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list

Chipset

Intel® P67(B3)

Memory

4 x DIMM, Max. 32GB, DDR3 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
* Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

1 x PCIe 2.0 x16
1 x PCIe 2.0 x16 (x4 mode, black) *1
2 x PCIe 2.0 x1
3 x PCI

Storage

Intel® P67(B3) chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Marvell® PCIe SATA 6Gb/s controller : *2
2 x SATA 6Gb/s port(s), navy blue

LAN

Realtek® 8111E , 1 x Gigabit LAN Controller

Bluetooth

Bluetooth V2.1+EDR
ASUS BT GO! Utility

Audio

Realtek® ALC 892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- DTS Surround Sensation UltraPC
- Optical S/PDIF out port(s) at back panel

IEEE 1394

VIA® 6308P controller
2 x IEEE 1394a port(s)
(1 at mid-board, 1 at back panel)

USB Ports

ASMedia® USB 3.0 controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® P67(B3) chipset :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)

ROG Exclusive Features

Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
ASUS TPU :
- Auto Tuning
- TurboV
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 12 +2 Phase Power Design
- ASUS DIGI+ VRM Utility
ASUS BT GO! :
- Folder Sync
- BT Transfer
- Shot & Send
- BT to Net
- Music Player
- Personal Manager
ASUS BT Turbo Remote :
- Exclusive Smartphone Interface supporting iPhone, Android, Windows Mobile, and Symbian systems
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- AI Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-LED (DRAM)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x Bluetooth module(s)
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (1 x 4 -pin, 1 x 3 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)

BIOS

32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note

*1: The PCIEX16_2 slot shares bandwidth with the PCIEX1_1 slot, PCIEX1_2 slot and USB3_34 connector. The PCIEX16_2 runs at x1 mode by default for system resource optimization.
*2: These SATA ports are for data hard drives only. ATAPI devices are not supported.

New P67 B3 Revision
DIGI+ VRM - Digital Power Design: The New Standard on Intel P67 Platform

• Dual Intelligent Processors 2 with DIGI+ VRM
• BT GO! (Bluetooth) - Diverse BT Enjoyment, New Technology Lifestyle
• EFI BIOS (EZ Mode) - Flexible & Easy BIOS Interface
• Quad USB 3.0/SATA 6Gb/s Support - Double Access, Double Convenience
• Quad-GPU CrossFireX Support!
• REV 3.0 – NEC USB 3.0 controllers
  REV 3.1 – ASMedia USB 3.0 controllers

ShippingEconomy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited
shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.

Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
