Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..
Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.
Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
Package include:1* motherboard2* SATA cables1* I/O pannel

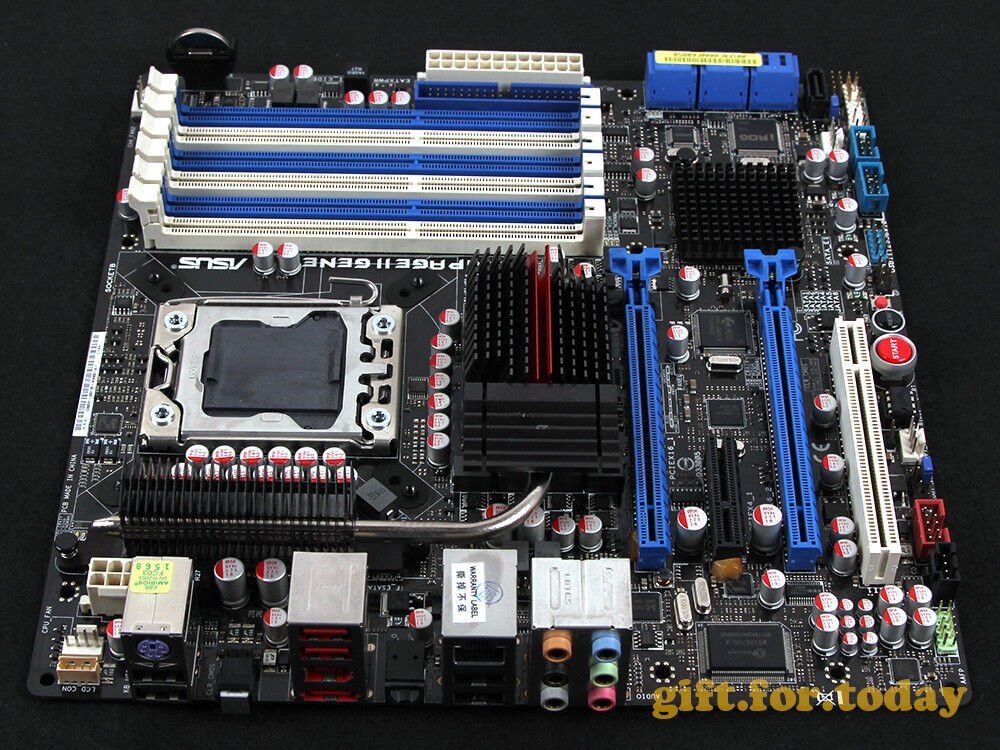

ASUS RAMPAGE II GENE Motherboard Introduction
CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed Technology
* Refer to ASUS official website Intel CPU support list
Chipset
Intel® X58 /ICH10R
System Bus
Up to 6400 MT/s with QuickPath Interconnection
Memory
6 x DIMM, Max. 24 GB, DDR3 Non-ECC,Un-buffered Memory
Triple channel memory architecture
* Supports Intel® Extreme Memory Profile (XMP)
**Due to Intel spec definition, DIMMs of DDR3-1333 or above are out of spec. Please refer to ASUS official website for the Memory QVL(Qualified Vendors List).
Expansion Slots
2 x PCIe 2.0 x16 support at dual x16 speed
1 x PCIe 2.0 x4
1 x PCI 2.2
Multi-GPU Support
Support NVIDIA SLI™ / ATI CrossFireX™ Technology
Storage
Intel ICH10R controller
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66/33 for up to 2 PATA devices
1 xInternal SATA 3.0 Gb/s port
1 xExternal SATA 3.0 Gb/s port (SATA On-the-Go)
*Due to the Windows XP/ Vista limitation, the RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only.
LAN
Realtek® 8111C PCIe Gigabit LAN controller featuring AI NET2
Audio
SupremeFX X-Fi built-in 8-Channel High Definition Audio CODEC
EAX® Advanced™ HD 4.0
X-Fi CMSS®-3D
X-Fi Crystalizer™
Creative ALchemy
Supports Optical S/PDIF out ports on rear
IEEE 1394
2 x 1394a port(s) (1 port at back I/O, 1 port onboard)
USB
12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)
Peripheral Support
ROG OC Station
ASUS Unique Features
Power Design
- 8-phase CPU power
- 2-phase QPI/DRAM power
- 2-phase NB power
- 2-phase Memory power
CPU Level Up
Keyboard-TweakIt
Memory Level Up
iROG
Extreme Tweaker
Loadline Calibration
Intelligent overclocking tools:
- ASUS AI Booster Utility
- O.C. Profile
Overclocking Protection:
- COP EX (Component Overheat Protection - EX)
- Voltiminder LED
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
MemOK!
External LCD Poster
Q-Fan Plus
ASUS EPU-6 Engine
ASUS Q-Connector
ASUS Fan Xpert
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS MyLogo3
Back Panel I/O Ports
1 x External SATA
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x PS/2 Keyboard port(purple)
1 x S/PDIF (Optical)
1 x Clr CMOS switch
Internal I/O Connectors
3 x USB connectors supports additional 6 USB 2.0 ports
1 x IDE connector for two devices
7 x SATA connectors
5 x Fan connectors: 1 x CPU / 2 x Chassis / 2 x Optional
2 x thermal sensor connectors
1 x IEEE1394a connector
1 x LCD Poster connector
1 x Chassis Intrusion connector
24-pin ATX Power connector
8-pin ATX 12V Power connector
1 x En/Dis-able Clr CMOS header
1 x Front panel audio connector
1 x CD audio in
System panel connector
BIOS
16 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI2.0a Multi-Language BIOS
Manageability
WOL by PME,WOR by PME,Chasis Intrusion,PXE
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
ShippingEconomy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited
shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.
Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...
Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.
PAYPAL ONLY: We do not accept any other payment method.
After Sale:
- Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale
- Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..
Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
