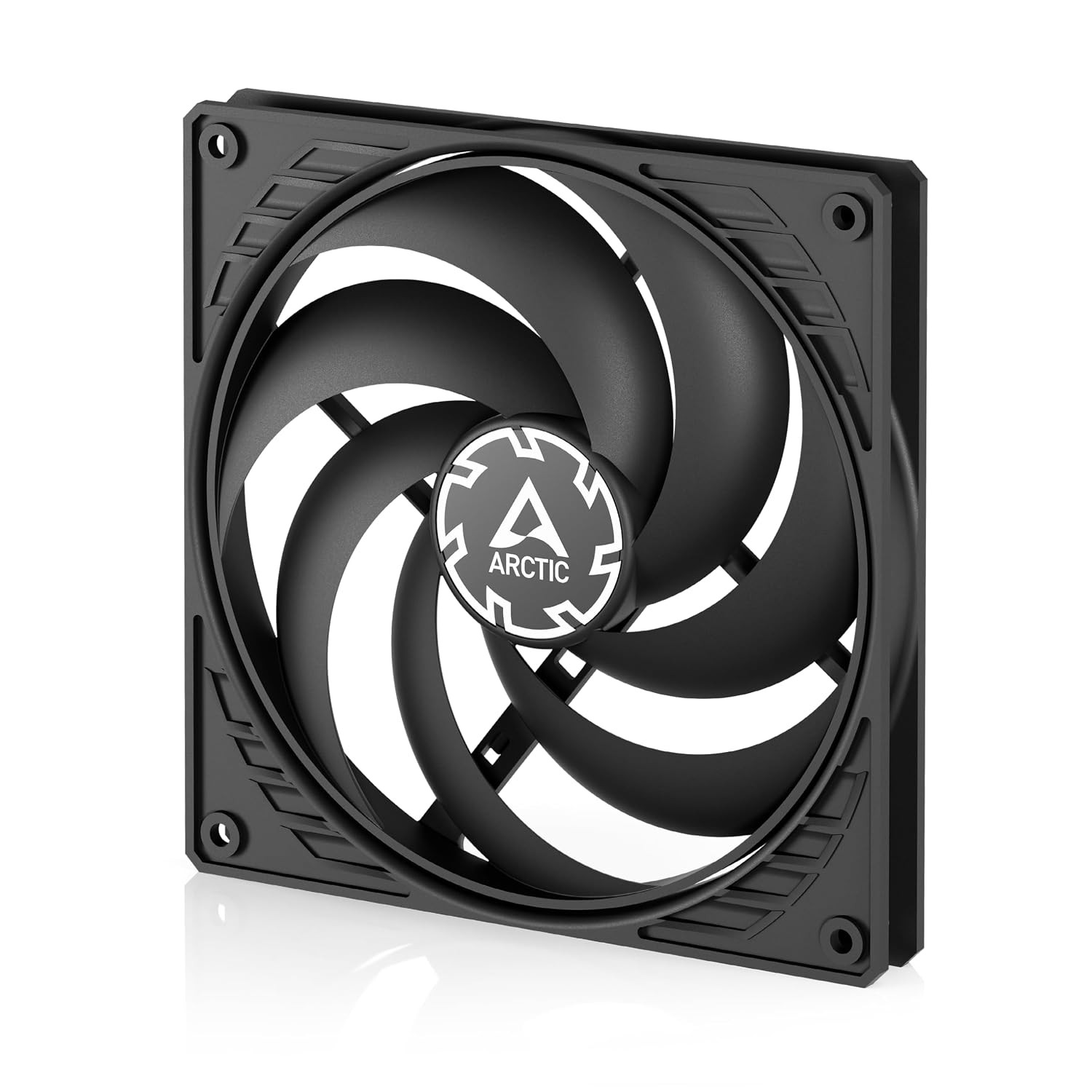

P14 Slim PWM PST - PC Fan, 140mm Fan,Pressure-optimised, Quiet MotorDescription Power Connector Type 4-Pin Voltage 12 volts Wattage 2.28 watts Cooling Method Air Compatible Devices Desktop Noise Level 0.3 sones Maximum Rotational Speed 1800 rpm Air Flow Capacity 52 cfm Item Dimensions L x W x H 5.51"L x 5.51"W x 0.63"H Material Type Polycarbonate Global Trade Identification Number 04895213703871 Warranty Description 6 years Number of Packs 1 Number of Items 1 Unit Count 1 Count Item Weight 109 g Model ACFAN00268A Part Number ACFAN00268A Product Dimensions 5.51"L x 5.51"W x 0.63"H Material Polycarbonate

Product description Ideal for small spaces

Unlike standard 140 mm case fans with a thickness of 27 mm, the P14 Slim PWM PST has a mounting depth of only 16 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.

Optimised for high static pressure

Because the fan design of the P14 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow - even with increased air resistance. This makes the P14 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.

Maximum quietness, minimum vibration

The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.

Improved service life

The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.

150 to 1800 rpm controlled via PWM PST

With a wide speed range and innovative PWM Sharing Technology (PST), the P14 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to 4 other PST fans can be connected in series.

High quality sleeve bearing

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.

0 dB mode - Zero rpm

The speed of the P14 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while ensuring good performance on demand.

General data Performance

Fan Speed: 150–1800 rpm (0 rpm below 5 % PWM)

Airflow: 52 cfm | 88.35 m³/h

Static Pressure: 1.55 mmH₂O

Noise Level: 0.3 Sone

Operating Ambient Temperature: 0–40 °C

Fan

Fan Frame: Slim

Control Type: PWM PST

Connector: 4-Pin Connector + 4-Pin-Socket

Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics

Typical Voltage: 12 V DC

Starting Voltage: 4 V

Current | Voltage: 0.19 A | 12 V DC

Cable Length: 400 mm + 80 mm

Size & Weight

• Length: 140 mm
• Width: 140 mm
• Height: 16 mm
• Weight: 109 g

Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 753 4.6 out of 5 stars 858 4.5 out of 5 stars 93 4.7 out of 5 stars 1,428 4.6 out of 5 stars 724 4.7 out of 5 stars 641 Price $12.74$12.74 $10.99$10.99 — no data — no data $10.99$10.99 $27.91$27.91 Size 140 x 140 x 16 mm 140 x 140 x 27 mm 140 x 140 x 27 mm 140 x 140 x 27 mm 140 x 140 x 27 mm 140 x 140 x 27 mm Fan Speed 150–1800 rpm 1700 rpm 200–1700 rpm 200–1700 rpm 400–2800 rpm 200–1900 rpm Airflow 52 cfm | 88.35 m³/h 72.8 cfm | 123.76 m³/h 72.8 cfm | 123.76 m³/h 72.8 cfm | 123.76 m³/h 95 cfm | 161.4 m³/h 68.9 cfm | 117.06 m³/h Control Type PWM PST Fixed Speed PWM PWM PST PWM PWM PST Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Weight 109 g 191 g 194 g 194 g 245 g 225 g Static Pressure 1.55 mmH₂O 2.4 mmH₂O 2.4 mmH₂O 2.4 mmH₂O 4.18 mmH₂O 2.0 mmH₂O

• OPTIMISED FOR STATIC PRESSURE: Through high static pressure, the fan guarantees efficient cooling, even with increased air resistance. Suitable for use on heat sinks and radiators
• STRONG COOLING PERFORMANCE: The performance of the P fans has been noticeably increased through numerous improvements, including upgraded engine technology and a newly developed fan design
• 150 TO 1800 RPM: Thanks to the 4-pin connector, the fan speed can be controlled via PWM PST. This keeps noise to a minimum while at the same time ensuring maximum cooling performance
• LOW INSTALLATION HEIGHT: The P14 Slim PWM PST has an installation height of only 16 mm, making it suitable for small form factor cases & for installations for which a 25 mm fan does not fit
• TECHNICAL DATA: Fan speed: 120–1800 rpm, Airflow: 47 cfm | 79,85 m³/h, Noise Level: 0.3 Sone, Static Pressure: 1.31 mmH₂O, Pin: 4-pin
