PCChips M810LMR Socket A (Socket 462) Micro ATX Motherboard - SiS 730S Chipset
Classic Socket A compact motherboard built on the SiS 730S single-chip architecture with the iconic "T-Bird AMD-K7" heatsink. Features integrated 128-bit 2D/3D graphics, an AGP 4X expansion slot for dedicated video cards, two PCI slots, integrated 10/100 Ethernet LAN, and onboard audio. Ideal for period-correct Windows 98SE, Windows ME, and Windows 2000 retro builds.
Key Specifications:- Brand / Model: PCChips M810LMR (also OEM as ECS K7SEM / Amptron K7-810LM)- CPU Socket: Socket A / Socket 462- Supported Processors: AMD Athlon (Thunderbird / Palomino) and AMD Duron (Spitfire / Morgan)- Front Side Bus (FSB): 200 / 266 MHz FSB- Chipset: SiS 730S Single-Chip Host & Multimedia Controller (under orange heatsink)- Integrated Graphics: Embedded SiS 300 128-bit 2D/3D Graphics with rear VGA output- Memory: 2x 168-pin SDRAM DIMM sockets (PC100 / PC133 SDR SDRAM, up to 1GB)- Expansion Slots: * 1x AGP 4X slot (universal 1.5V / 3.3V) * 2x 32-bit PCI slots * 1x AMR (Audio/Modem Riser) slot- Integrated Network: Davicom DM9102AF 10/100 Mbps Fast Ethernet LAN (RJ-45)- Integrated Audio: Multi-channel AC'97 Audio with Game/MIDI port- Super I/O Controller: ITE IT8705F- Storage Interfaces: 2x Ultra DMA 100/66 IDE channels (Blue / White), 1x Floppy drive connector- Power Connector: Standard 20-pin ATX power connector- RTC Battery: Standard CR2032 socket- Form Factor: Micro ATX (approx. 9.6" x 8.7" / 24.4 cm x 22.0 cm)
Rear Panel I/O Ports:- 2x PS/2 Ports (Keyboard & Mouse)- 1x RJ-45 10/100 Ethernet Port- 2x USB 1.1 Ports- 1x VGA Video Output (DB-15 female, blue)- 1x Parallel (LPT / Printer) Port (DB-25 female)- 1x Serial (COM) Port (DB-9 male)- 1x Game / MIDI Port (DB-15 female, yellow)- 3x 3.5mm Audio Jacks (Line-in, Line-out, Microphone)

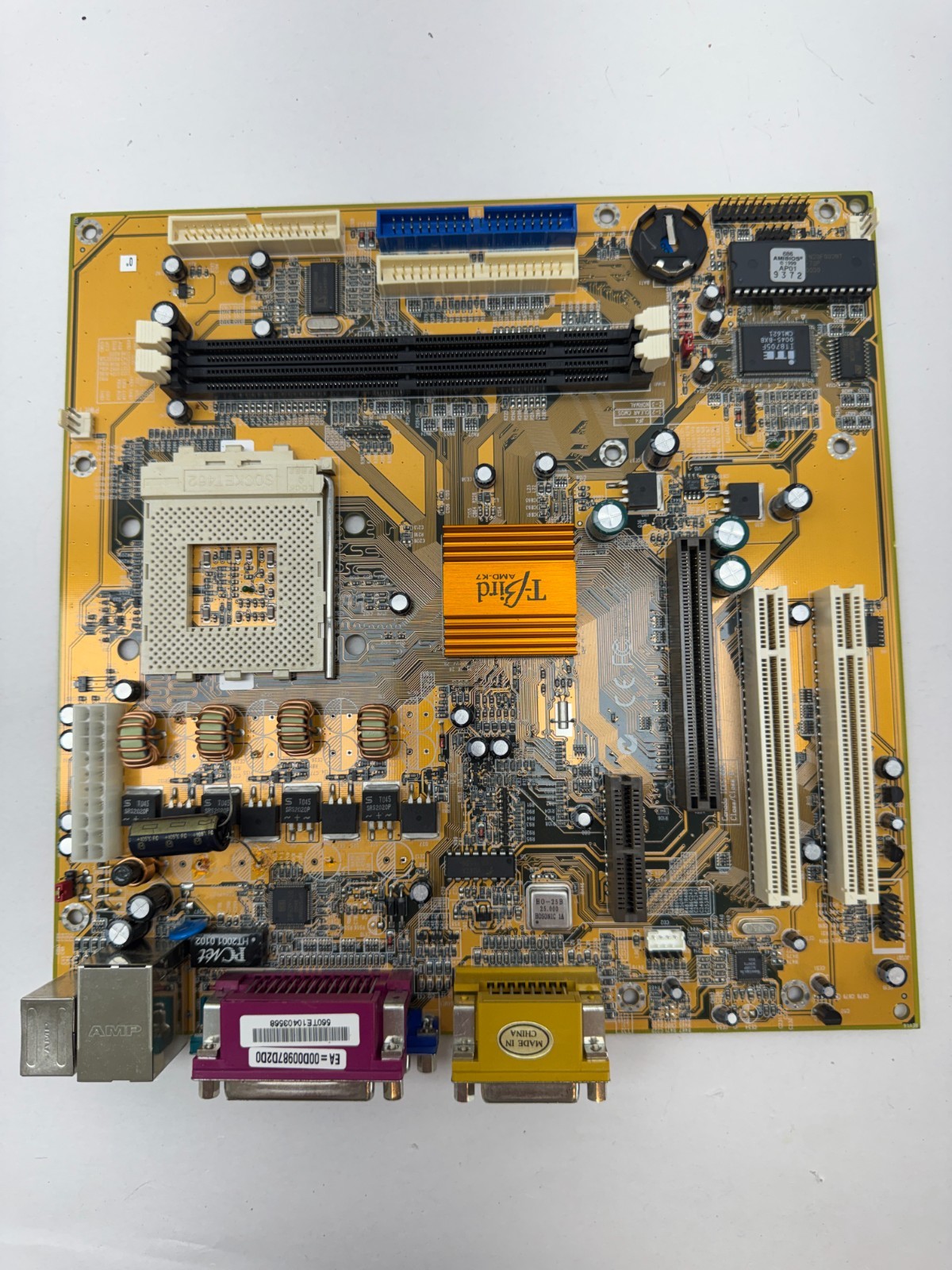

Package Includes:- 1x PCChips M810LMR Socket A Motherboard (as pictured)
