Description

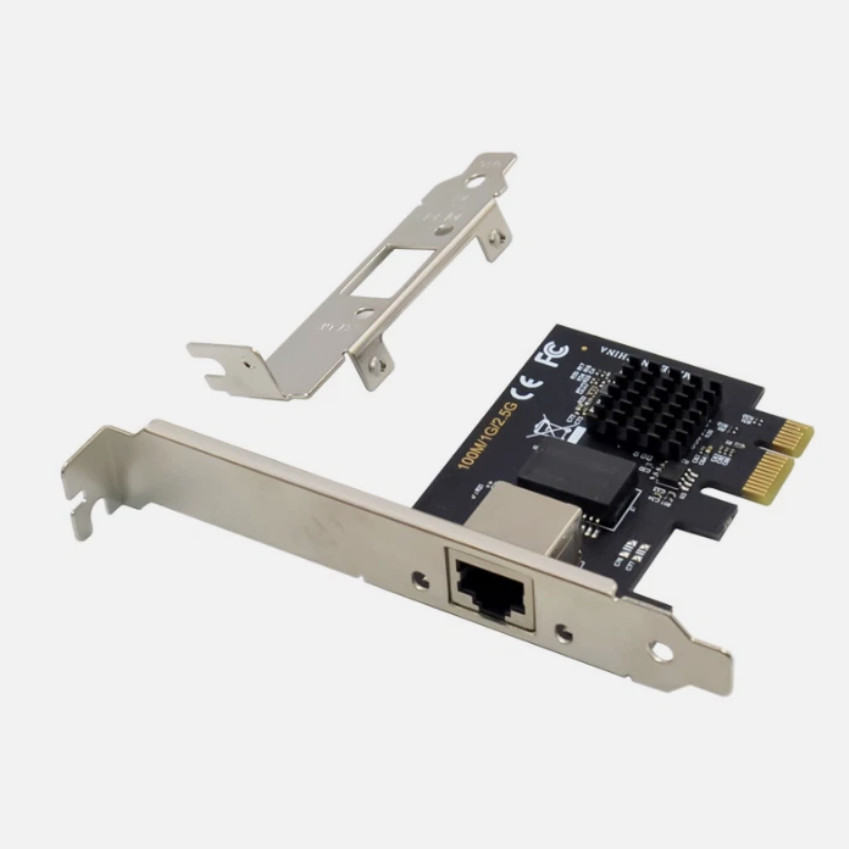

PCI ExpressRTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet.Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
Specification
ŸIntegrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
ŸSupports 2.5G and 1G Lite mode
ŸAuto-Negotiation with Extended Next Page capability(XNP)
ŸSupport PCI Express Specification Revision 2.1
ŸSupports pair swap/polarity/skew correction
ŸCrossover Detection& Auto-Correction
ŸSupports 1-Lane 2.5/5Gbps PCI Express Bus
ŸSupports hardware ECC(Error correction code)function
ŸSupports hardware CRC(Cyclic Redundancy Check)function
ŸSupports PCI MSI (Message Signaled Interrupt)and MSI-X
ŸTransmit/Receive on-chip buffer support
ŸSupports ECMA-393 ProxZzzy Standard for sleeping hosts
ŸWake-On-LAN and‘RealWow!’Technology (remote wake-up)supports
ŸCompatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
ŸSupports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
ŸSupports IEEE802.1Qav credit-based shaper algorithm
ŸSupports IEEE802.1P Layer 2 Priority encoding
ŸSupports IEEE802.1Q VLAN tagging
ŸSupports IEEE802.1ad Double VLAN
ŸSupports IEEE802.3az (Energy Efficient Ethernet)
ŸSupports IEEE802.3bz(2.5GBase-T)
ŸSupports full duplex flow control(IEEE802.3x)
ŸSupports jumbo frame to 16K bytes
ŸSupports Virtual Machine Queue(VMQ)
ŸSupports quad core Receive–Side Scaling(RSS)
ŸSupports Protocol Offload (ARP&NS)
ŸDrivers for DOS
Package content
Ÿ1 xPCI Express RTL8125B 2.5G network adapter
Ÿ1 x User’s Manual
Ÿ1 x CD
Ÿ1 x Low profile bracket
System Requirements
lLinux class="16" style="margin-left: 21pt; text-indent: -21pt; line-height: 24pt;">lOne available PCI Expressx1/x4/x8/x16 slot
Hardware installation
1.Turn off the computer and unplug the power cord
2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter
3.Insert the adapter edge connector into the slot and secure the bracket to the chassis
4.Replace the computer cover ,then plug in the power cord
5.Power on the computer
Install Drivers and software
WindowsROperating Systems
1. Please insert the CD driver bound into your CD-ROM Drive.
2.Double-click to open the CD-ROM drive and find the driver corresponding to the system.
3.1For Windows®Win7,Server2008R2(32/64 bit)
3.2For Windows® Win8,Win8.1Server2012(32/64 bit)
3.3For Windows® Win10(32/64 bit)
3.4For Windows® Win11(32/64 bit)
4. Follow the on-screen instructions to complete the installation.
Support
More information and settings, please refer to the Adapter User Guides or you can contact us.
