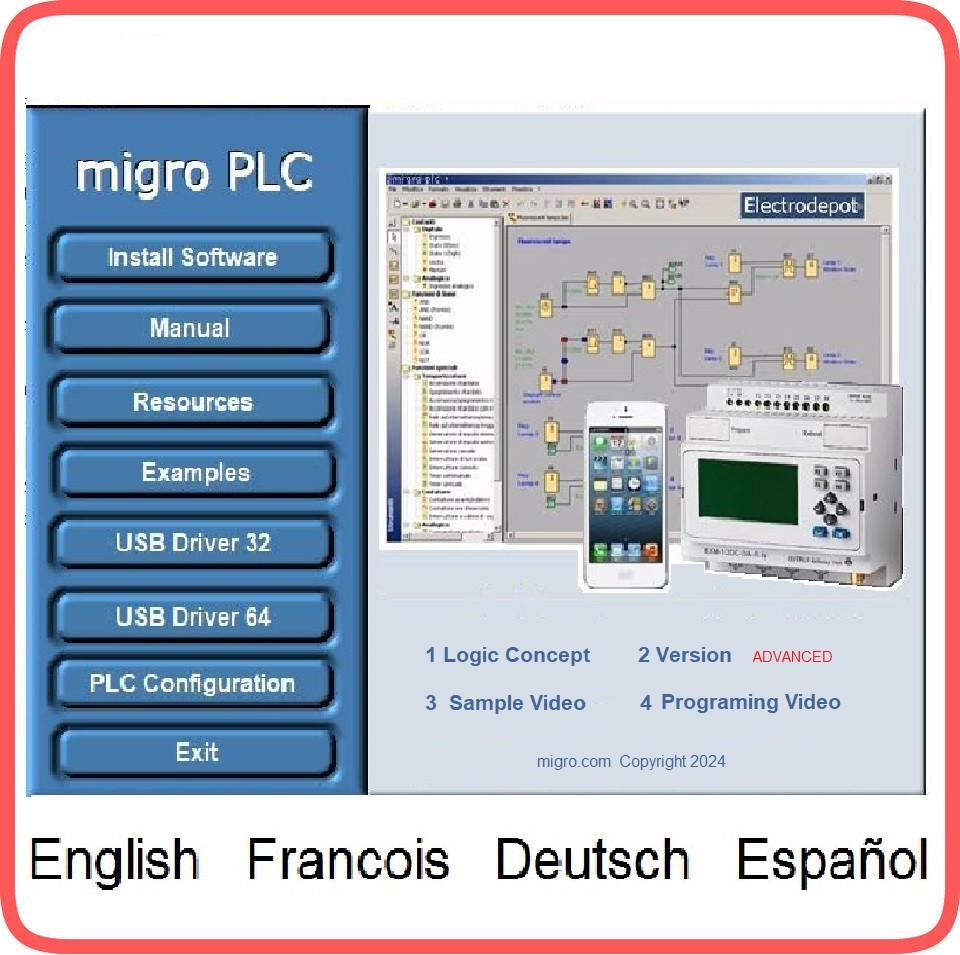

1 1 Migro 2 2 Block Function Logic Diagram
For upload and download your developed programs
For the following Hardware: PLC’s: Edplc, Easy, Rievtech, Xlogic, Migro, Mitsubishi FX series and more Featured: inputs,outputs and functions - Input Switchesoperable from the computer keyboard or by clicking on them.
- Instantaneous Relaycontacts (normally-open and normally-closed).
- Instantaneous Timercontacts (normally-open and normally-closed).
- Timed Timer and countercontacts
- Branch wiring
- Real Time Clock Day, Month, Years
- Compare Instructions (GRT, EQU, and LES).
- Analog inputs and scale simulator screen
- Latch and Unlatch Relays
- Master Control Relays (MCR)
- On-Delay Timers (TON)
- Off-Delay Timers (TOF)
- Retentive Timers (RTO)
- Counters
- Timer/Counter Reset (RES)
- Move (MOV)
- Math Outputs (ADD, SUB, MUL, and DIV)
- Logical Outputs (AND, OR, NOT, and XOR)
- And More
- Supports programming of complex logic functions
- Real time program monitor
- Impulse generator function and timers
- Display function for displaying and editing plain text messages and values
- Gain function for shifting analog signals
- Integrated Schmitt trigger controller
- Closed-loop controller applications
- Integrated calendar/clock function
- Up to 350 on/off switching commands per program
- Can replace a multi-channel real-time clock
- Large set of preprogrammed functions
- Process visualization and dynamic real time parameter graphics
- Program simulation – no controller needed
- Point, click, drag and drop programming
- Simple debugging
- Program up to 186 I/O
- Easy and convenient program creation and editing.
- Programs can be saved on a computer and accessed at any time.
- Programs can also be upload from the EDPLC controller and then edited.
- Enables users to print programs for reference and review.
- The Simulation Mode allows users to virtually run and test the program before it is loaded to the the EDPLC
- Real-time communication allows the user to monitor the EDPLC operation during RUN mode
NOTE
Software is FREE, cost include Procurement, Development,Production, examples and data compilation by Global Shipping Program only
|
|
