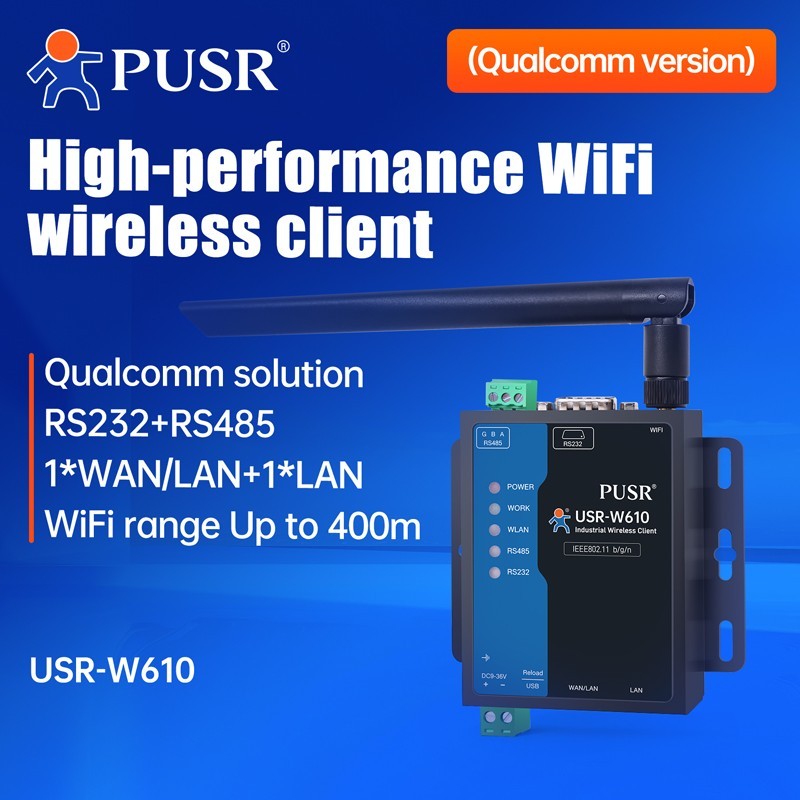

USR-W610（Qualcomm version） High-performanceWi-Fiwireless client

USR-W610(Qualcomm version)is a powerful 2.4GWi-Fiserial device server,

which can realize data communication between serial devices and version) is equipped with 1*RS232, 1*RS485, 2*10/100Mbps Ethernet port,

and it adopts high performance Qualcomm processor, the transmission distance can reach up to 400 meters.

It integrates a wealth of network protocols like TCP,UDP,HTTP,MQTT, etc.

and supports a variety of networking methods, suitable for various scenarios.

Serial/Ethernet toWi-FiConverter

With the help of USR-W610(Qualcomm version),

you can achieve data transmission between serial port devices, network port devices,

and WiFi devices, as well as remotely monitor the operational status of field devices.

Qualcomm Chip,Powerful and reliable

• ● Powerful and reliable Qualcomm processor to ensure the stable.

• ●2.4GHZ WiFi, offering the advantages of strong anti-interference capability,

• high speed, and wide coverage. In an open environment, the coverage range can reach up to 400 meters.

Multiple Working Modes, Meeting Diverse Scenarioes

• The USR-W610(Qualcomm version) provides a wealth of networking methods to meet customer networking needs.

• AP mode: Allow network devices to access USR-W610(Qualcomm version) via Wi-Fi or Ethernet.

• STA mode: USR-W610(Qualcomm version) as a network device accesses other networks via Wi-Fi.

• AP+STA mode: Work in AP and STA mode simultaneously.

• Bridge mode: The device connected to the Ethernet port of W610(Qualcomm version) is equivalent to directly connecting to the upper-level network, and the W610(Qualcomm version) is equivalent to being transparent.

• Router mode: The device connected to the Ethernet port of W610(Qualcomm version) will be assigned an IP by the W610(Qualcomm version).

Rich Product Features

• Modbus Gateway: Modbus RTU/TCP protocol conversation, Modbus multi-host polling.

• Support Transparant MQTT/TCP/UDP/HTTP data communication.

• Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client using this feature.

• Registration Packet Funciton: The server can identify different clients by usingregistration packets.

Industrial-Grade Design, High Reliability

• EFT Protection: Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.

• ESD Protection: Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.

• Watchdog: Hardware software dual watchdog to ensure stable operation without downtime.

• Wide Operation Temperature: -25℃~ 70℃

Remote Management, Anytime, Anywhere

PUSR Platform: USR-W610(Qualcomm version) cooperates with PUSR platform,

users can realize remote login configuration webpage,

data debugging and remote firmware upgrade functions.

Users can also monitor the online/offline record of the device.

With all the above functions, users can monitor and manage the device conveniently.

Ordering Guide

USR-W610 and USR-W610(Qualcomm version) are two industrial wireless WiFi clients .

For the convenience of customers' choice, the picture lists the main differences between the two products for reference.

Dimension & Interface

• • Dimension: 84*89*26mm

• • Serial port: 1*RS232, 1*RS485.

• • Baud rate range: 1200~230.4Kbps. The two serial port can work simultaneously.

• • ETH ports: 1*WAN/LAN, 1*LAN （10/100Mbps)

• • Power supply: DC 9-36V, 1*terminal block connector

• • Installation: Wall mounting, desktop placement

• •Reload button: In the case of forgetting the parameters, long press to restore the factory settings.

• •Antenna Connector: 1*SMA-Female

Packaging List

• • USR-W610*1

• • Power Supply*1

• • Power Conversion Cable*1

• • Female to Female Serial Cable*1

• • WiFi Antenna*1

Smart Factory Application

Connect with the serial port/network port equipment in the factory, and upload the equipment operation data to the local monitoring platform or remote platform in real time; the staff can dynamically understand the operation status of the monitored equipment through the monitoring platform.

Medical Device Data Transmission Solution

The medical equipment transmits the entered data

to the cloud server in real time through Wi-Fi network of W610(Qualcomm version).

Users can quickly complete the collection, storage and analysis of important data.
