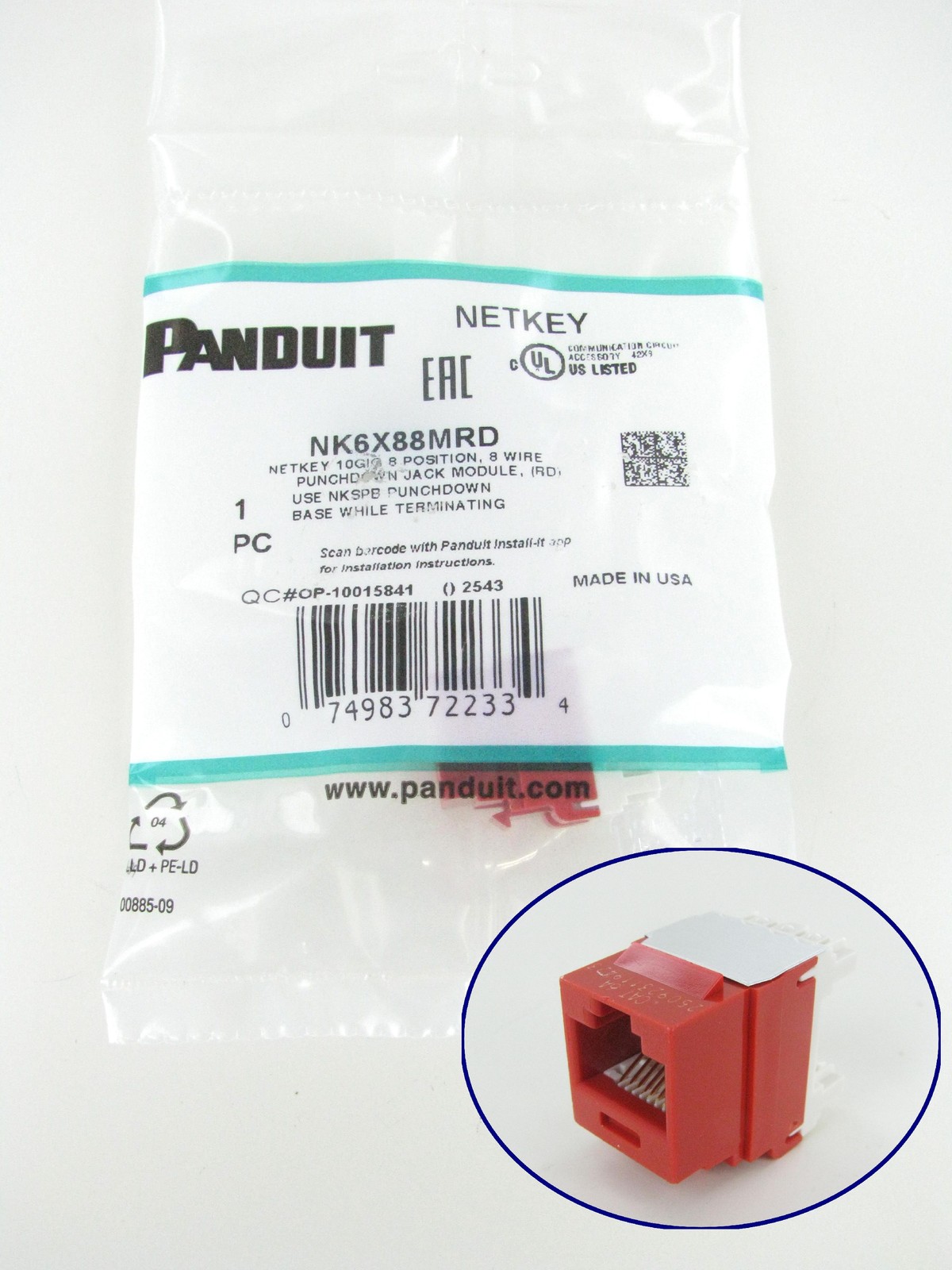

Panduit NK6X88MRD NetKey Category 6A UTP RJ45 Punchdown Keystone Jack Module - RedNew Panduit NK6X88MRD NetKey Category 6A jack module. Designed for high-performance Category 6A network installations and termination of 4-pair, 22-26 AWG twisted-pair cable.Specifications:
Note Punchdown style termination
Product Type Jack Module
Performance Level Category 6A
Connector Type Jack Module - Standard
Termination Style Punchdown
Body Material Polycarbonate
Contact Material Plated Phosphor Bronze
Module Type Keystone
Wiring Scheme T568A/T568B
Shield Type Unshielded (UTP)
Sub Brand NetKey®
Maximum Operating Temperature (°C) 75
Maximum Operating Temperature (°F) 167
Minimum Operating Temperature (°C) -10
Minimum Operating Temperature (°F) 14
Maximum Storage Temperature (°C) 75
Maximum Storage Temperature (°F) 167
Minimum Storage Temperature (°C) -40
Minimum Storage Temperature (°F) -40
Color Red
Standards Met Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel and Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
Overall Length (In.) 1.16
Overall Length (mm) 29.5
Overall Width (In.) 0.65
Overall Width (mm) 16.5
Overall Depth (In.) 1.16
Overall Depth (mm) 29.5
Overall Height (In.) 0.9
Overall Height (mm) 22.9
