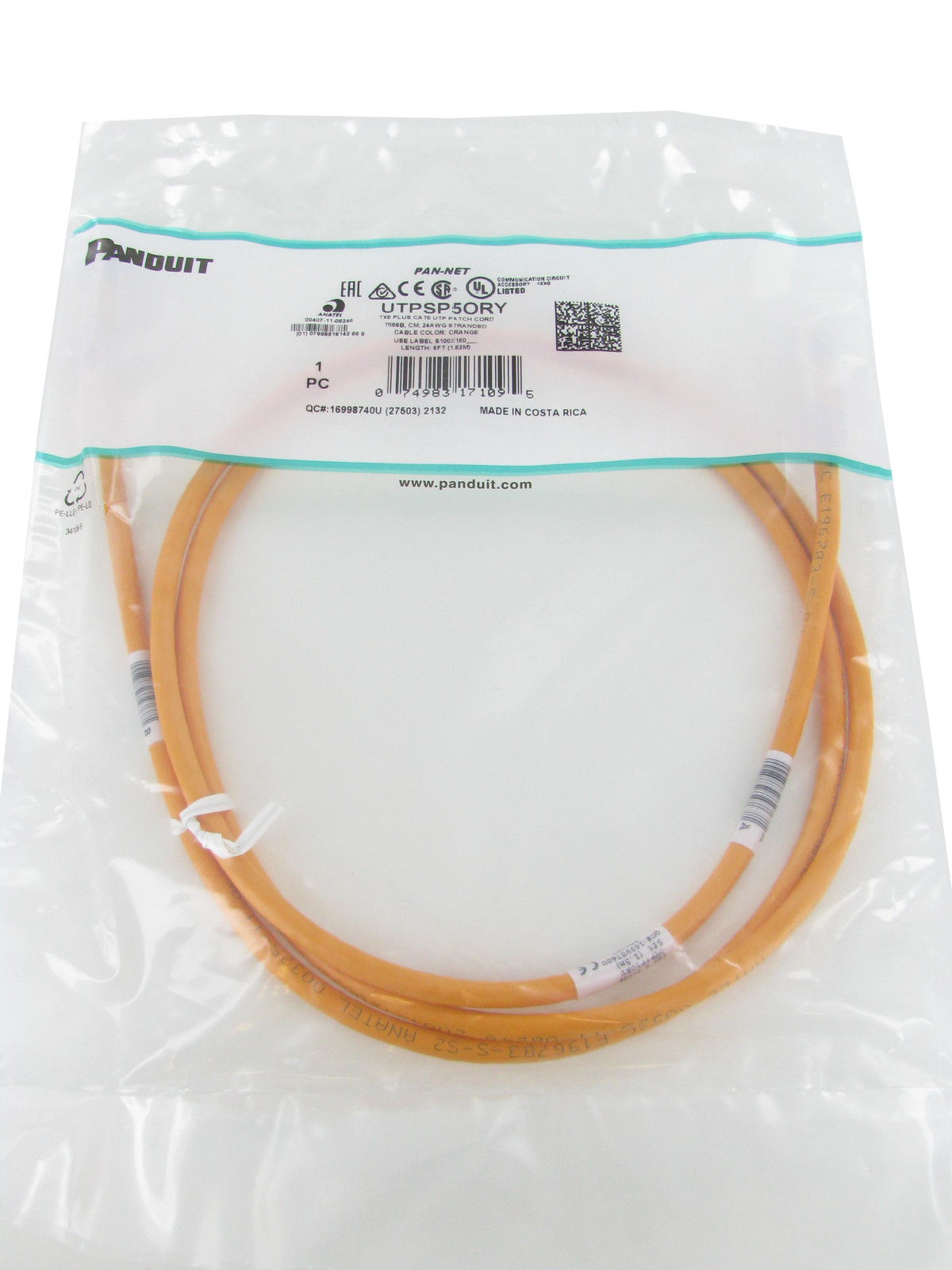

Panduit UTPSP5ORY Cat6 Network Modular Patch Cable/Cord, 5 Ft Orange ~STSI
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Panduit UTPSP5ORY Cat6 Network Modular Patch Cable/Cord, 5 Ft Orange ~STSI
Price: US $11.99
Panduit UTPSP5ORY Cat6 TX6 Plus UTP Network Patch Cable, 5 Ft Orange


Description:

The TX6™ PLUS Cat 6 UTP Patch Cord is a 5-Foot, Orange cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token ring 4/16 4) Digital video and broadband/baseband analog video 5) Voice over Internet Protocol (VoIP)

  • Product Type Patch Cord
  • Conductor Gauge (AWG) 24
  • Conductor Gauge (kcmil) 0.4
  • Performance Level Category 6
  • Conductor Type Stranded
  • Cable Construction U/UTP
  • Patch Cord Type Unshielded
  • Plug Housing Material Polycarbonate
  • Connector 1 Type Modular Plug
  • Connector 2 Type Modular Plug
  • Overall Length (ft.) 5
  • Sub Brand Pan-Net®
  • Nominal Cable Outside Diameter (In.) 0.23
  • Wiring Scheme T568B
  • Maximum Operating Temperature (°F) 140
  • Minimum Operating Temperature (°F) 14
  • Maximum Storage Temperature (°F) 158
  • Minimum Storage Temperature (°F) -40
  • Boot Color Clear
  • Color Orange
  • Flammability Rating CM
  • Standards Met Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E channel and component standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
  • IEC Variant 60603-7
  • PoE Compatibility PoE, PoE+, PoE++
  • Plug Type 8 Position
  • RapidID™ Enabled Yes
  • Part Features 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch


    • Shipping Info:

    In general, for packages going via the US Postal Service, we will ship the same day if your payment is received by 9:00am CST.  For packages going via UPS or Fedex, we will ship within 1 business day. For heavier packages requiring UPS or Fedex, we may adjust the carrier depending on the pickup schedule for our location. For US Postal Service packages, we usually ship on Saturdays too.
